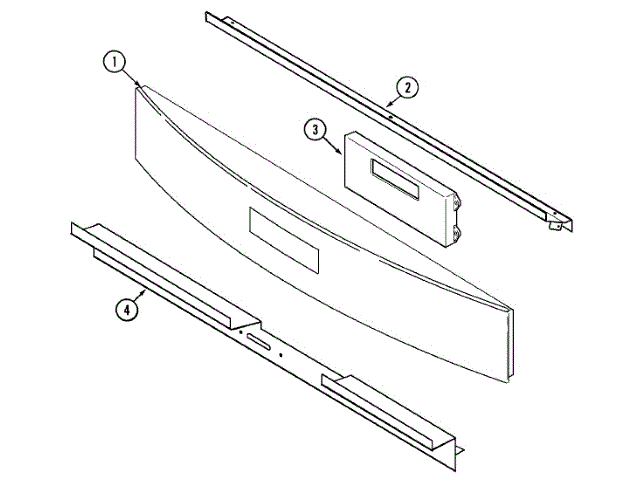

Control Panel

Part Number: AP4423991
MFG Part Number: 5765M194-60
Made by: Whirlpool

Not available

Description

Color: White

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to find out if this part will work with your appliance.

Where can I find my model number?

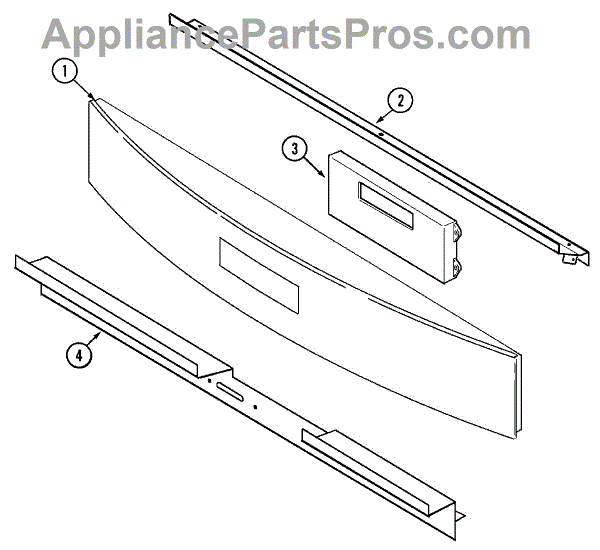

  • Whirlpool Control Panel 5765M194-60 from AppliancePartsPros.com

Repair Help


Cross Reference Information

Part Number 5765M194-60 (AP4423991) replaces 71003441, 1543936, 71003442, AH2357890, EA2357890, PS2357890.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Ask a Question

Most Interesting

Ok I finally got the problem fixed after some very close inspection with a flashlight. I noticed the P3 jumper on the brand new touch panel was attached to pin 1 only and in an open condtion. Then I looked at the old touch panel and that same jumper was jumping pin 1 and 2. I put the jumper in the proper place and waH-la! no more fan running. YES! everything now is full operational. That pesky jumper looked like it was in the right spot, but it wasnt. I just wanted to share the find, as others may come across this same problem someday. Thanks!

Gianfranco for Model Number jjw9530aaw

Answer

Was this helpful?

Well I did every like directed above. I check the alignment of all connectors and terminals and everything is where it should be. I know this because I took pictures of all the wires and connector orientation with my cameraphone before Ii unplugged anything in its original state. I checked to besure the ovenlight and cooling fan wires(brown) arent crossed. Oven light operates as it should. and fan wire when manually disconnected disables the fan all together (as it should). Then I checked the resistance to the oven temp sensor which read 1075 ohms @ room temp, and then 1350 and 200 degrees. Oven temp registers and rises on the display as it should. so that not the problem. This whole thing is leaving me scratching my head. as there are no error codes. Just the fan allways comes on along with a relay constantly triggering every minute or so as the oven heats up. I have 2 new relay board here and have swaped them out with no success. Please advise what I can check next.

Gianfranco for Model Number jjw9530aaw

Answer

Was this helpful?

I have installed a new control panel and the control board (part # AP4089341) but now the cooling fan will not shut off.It is constantly running even when the oven is not being used. Could this be a defect in one of the parts?There are no error codes.Just the fan not shutting off?Have tried replacing the relay board (AP4095668 ) and the problem still exists when the new board is installed.

Gianfranco E for Model Number jjw9530aaw

Answer

Was this helpful?
