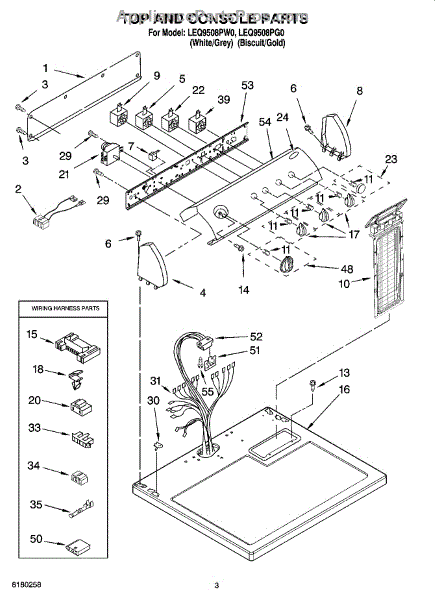

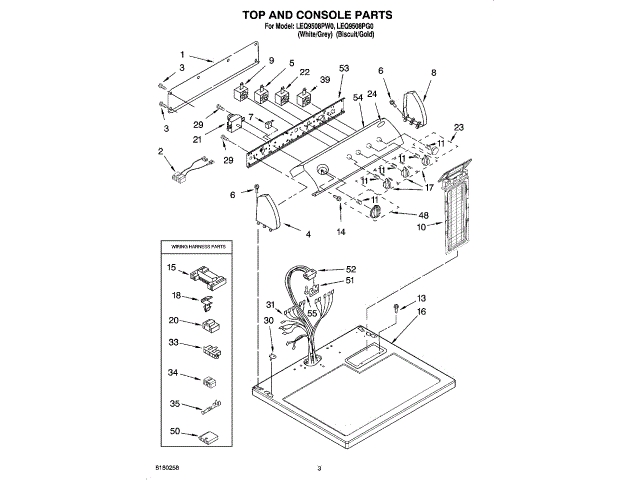

Need to wire temperature switch up. I have 4 wires white, blue, white, violet, red. The red post on switch ah6 ah1 ah ah3 switch part #8528330.
Answer Hi. The Violet wire connects to the "V" on the timer. The white /violet wire connects there as well and to the # 5 terminal on the selector switch part # 8528330. The white/blue wire goes to the "AH3" terminal post and then leads to the push to start switch and others as well. The "Red" timer wire that connects to the "R" terminal and then goes to the "AH1" Red common post. The other "Red" wire connects to the "AH6" terminal then leads to the cycling thermostat. Use the link provided to help verify. Thank You.
How do you test to see if the temperature switch needs replacing?
Answer Hello jofsmyrna. On the low setting, should read 10 ohms max and on high setting should read 10K min. You can test this with a multi-meter TJMA-DMT3. Here is a link on how to use a multi-meter. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html
