What is the wiring for one with four plug?
Wiley for Model Number med5600tq0
Answer Hello Wiley. You will put the black wire to the left and the red wire to the right. White goes in the middle and green goes to the ground screw. Here is the use and care guide and installation, refer to pg 8-14: https://www.whirlpool.com/digitalassets/MLPDF/Use%20and%20Care%20Guide%20-%20W10150608A.pdf . Thanks!

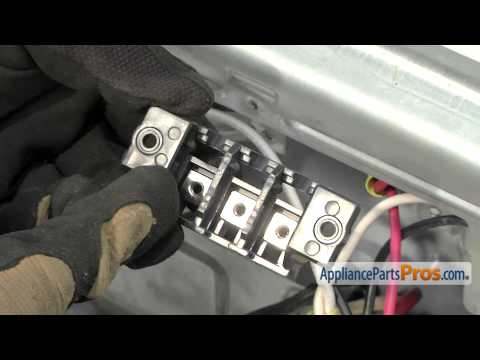

Connected the wires wrong from plug to terminal block & shorted out terminal block. Could it have shorted out something beyond terminal block, If yes can I test with meter?
John for Model Number gew9200lwo
Answer Hello John. You will need to test all the thermal cut-offs and the control board. The thermal cut-offs will read closed for continuity if good. If there is power coming to the control board, but it does not work, you will need to replace the control board 8530589. You can test this with a multi-meter TJMA-DM1. Here is a link on how to use a multi-meter. Hope this helps. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html
