Is there a special tool to remove pump?

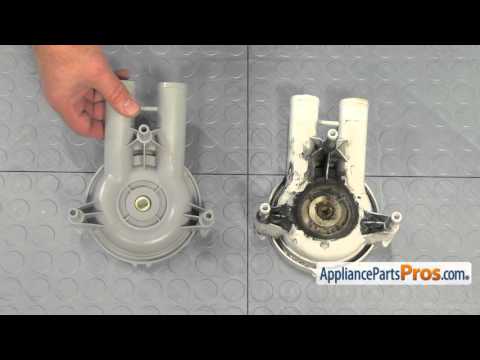

Answer Hello Doug. There are three star head screws that will need to be removed to remove the pump. The pump can be tight and you may have to move it back and forth to work it off the shaft. Hope this helps.
1 person found this answer helpful.
How to replace a belt?
Answer Hello Bob. Loosen hose clamps and remove hoses from pump
assembly. Unhook idler spring from clip on front of the motor
mounting bracket. Reach in and around left side of motor and remove
belt off large drive pulley. Disconnect wire harness from motor switch by
pressing down on locking tab on top of connection
block and at the same time, pull connection block
away from motor switch. Remove bolts securing motor and mounting bracket to
lower outer tub flange and to weldment assembly. Remove motor. Remove screws securing pump assembly to motor. Remove and replace the belt.
