Parts for Frigidaire RS249JCD0: Ice Maker Parts

Start New Search

WWH(V5) / Refrigerator

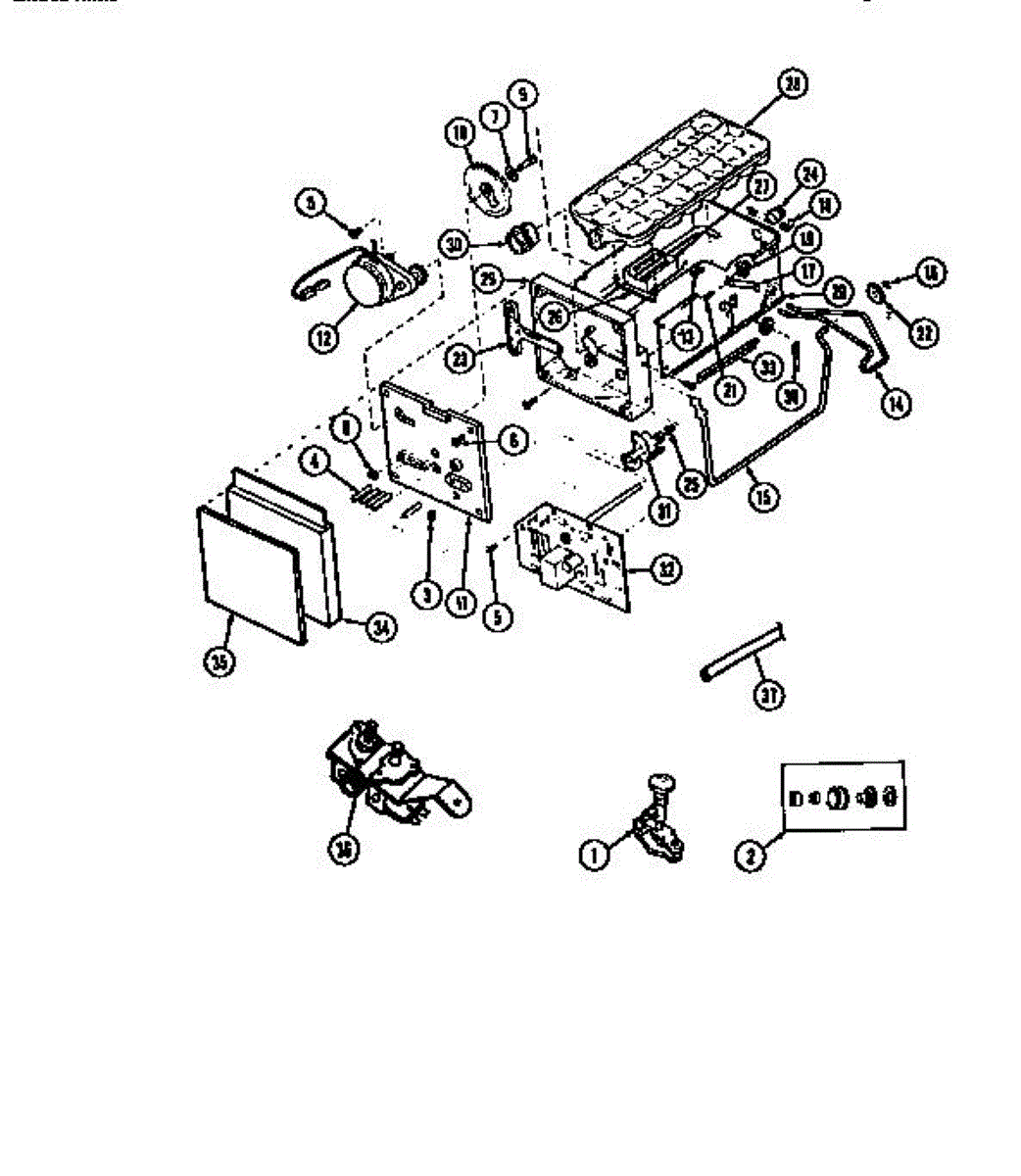

Location on Diagram Part Description Price & Availability
1

Valve

by Frigidaire
Part Number AP2165155

  • Not available
2

Adapter

by Frigidaire
Part Number AP2152117

Our Price
$40.02
Add to Cart
3

Ring

by Frigidaire
Part Number AP2572449

  • Not available
4

Pin

by Frigidaire
Part Number AP2135737

  • Not available
5
Screw

Screw

by Frigidaire
Part Number AP2152159

Our Price
$2.77
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
6

Screw-#6-32 X 1/2

by Frigidaire
Part Number AP2152551

  • Not available
7
Washer-Ctr Hnge Pin

Washer-Ctr Hnge Pin

by Frigidaire
Part Number AP2115037

Our Price
$1.54
Add to Cart
8

Nut-Hex #10-32-Left

by Frigidaire
Part Number AP2135958

  • Not available
9

Shaft

by Frigidaire
Part Number AP2135959

  • Not available
10
Gear

Gear

by Frigidaire
Part Number AP2135736

Our Price
$20.62
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
11

Plate

by Frigidaire
Part Number AP2135733

  • Not available
12

Motor, Drive Ice

by Frigidaire
Part Number AP2135734

  • Not available
13

Bearing

by Frigidaire
Part Number AP2135960

  • Not available
14

Arm

by Frigidaire
Part Number AP2135741

  • Not available
15

Arm

by Frigidaire
Part Number AP2135738

Our Price
$27.33
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
16

Ring-Retaining

by Frigidaire
Part Number AP2135740

  • Not available
17

Spring

by Frigidaire
Part Number AP2135719

Our Price
$2.53
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
18

Spring

by Frigidaire
Part Number AP2135961

Our Price
$9.26
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
19

Nut

by Frigidaire
Part Number AP2135717

  • Not available
20

Frame-Ice Maker

by Frigidaire
Part Number AP2135739

  • Not available
21

Screw-Spring Mounting

by Frigidaire
Part Number AP2135718

  • Not available
22

Gauge

by Frigidaire
Part Number AP2556979

  • Not available
23

Gear

by Frigidaire
Part Number AP2135962

Our Price
$20.14
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
24

Pivot

by Frigidaire
Part Number AP2135126

  • Not available
25

Spring

by Frigidaire
Part Number AP2135963

  • Not available
26

Retainer

by Frigidaire
Part Number AP2135742

Our Price
$2.41
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
27

Insulator

by Frigidaire
Part Number AP2135964

Our Price
$14.47
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
28
Tray

Tray

by Frigidaire
Part Number AP2135902

Our Price
$40.33
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
29

Not Available

by Frigidaire
Part Number AP2135965

  • Not available
30

Gear

by Frigidaire
Part Number AP2135731

  • Not available
31

Shaft

by Frigidaire
Part Number AP2135735

Our Price
$17.73
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
32
Board, Pc. No Longer Available

Board, Pc. No Longer Available

by Frigidaire
Part Number AP2152646

  • Not available
33

Extension-Frame

by Frigidaire
Part Number AP2134950

  • Not available
34

Front-Ice Maker

by Frigidaire
Part Number AP2136527

  • Not available
35

Label

by Frigidaire
Part Number AP2172028

  • Not available
36
Water Valve

Water Valve

by Frigidaire
Part Number AP2153123

 (1)
Our Price
$19.64
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
37
Water Inlet Tube

Water Inlet Tube

by Frigidaire
Part Number AP2152553

Our Price
$28.64
Add to Cart
38

Strap

by Frigidaire
Part Number AP3287272

  • Not available
*17202

Screw

by Frigidaire
Part Number AP2136017

Our Price
$2.45
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
*17203
Screw

Screw

by Frigidaire
Part Number AP3966019

Our Price
$4.13
Add to Cart
*17204

Guide-Im Screw

by Frigidaire
Part Number AP2152726

  • Not available

Cover-Wiring

by Frigidaire
Part Number AP2135979

Our Price
$12.40
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Screw

by Frigidaire
Part Number AP2136017

Our Price
$2.45
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Wiring Harness-I/m

by Frigidaire
Part Number AP2136102

  • Not available

Supt-Spec Barrel

by Frigidaire
Part Number AP2152554

  • Not available

Guide-Im Screw

by Frigidaire
Part Number AP2152726

  • Not available
Heater Door Housing

Heater Door Housing

by Frigidaire
Part Number AP2152923

Our Price
$44.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Tube-Water Inlet and Pilot Assembly

by Frigidaire
Part Number AP2153041

  • Not available

Foam Seal (sides)

by Frigidaire
Part Number AP2173012

  • Not available

Foam Seal, Top & Bottom

by Frigidaire
Part Number AP2173013

  • Not available

Plug

by Frigidaire
Part Number AP2547675

Our Price
$2.39
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Screw

Screw

by Frigidaire
Part Number AP3966019

Our Price
$4.13
Add to Cart
