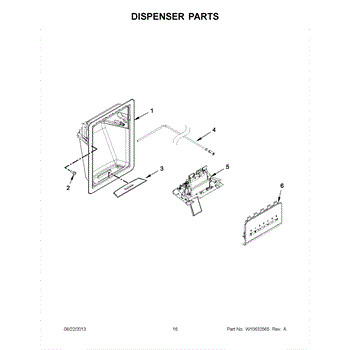

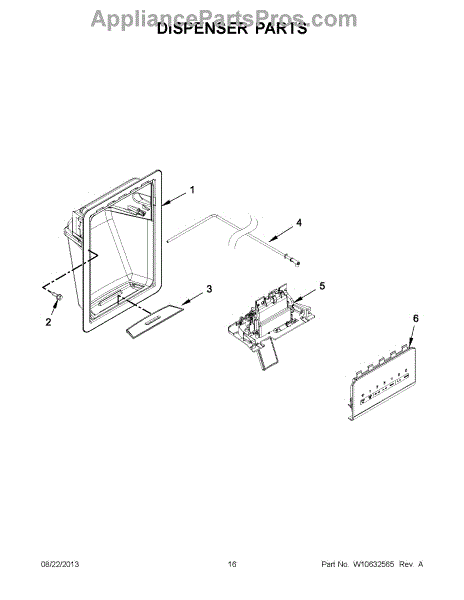

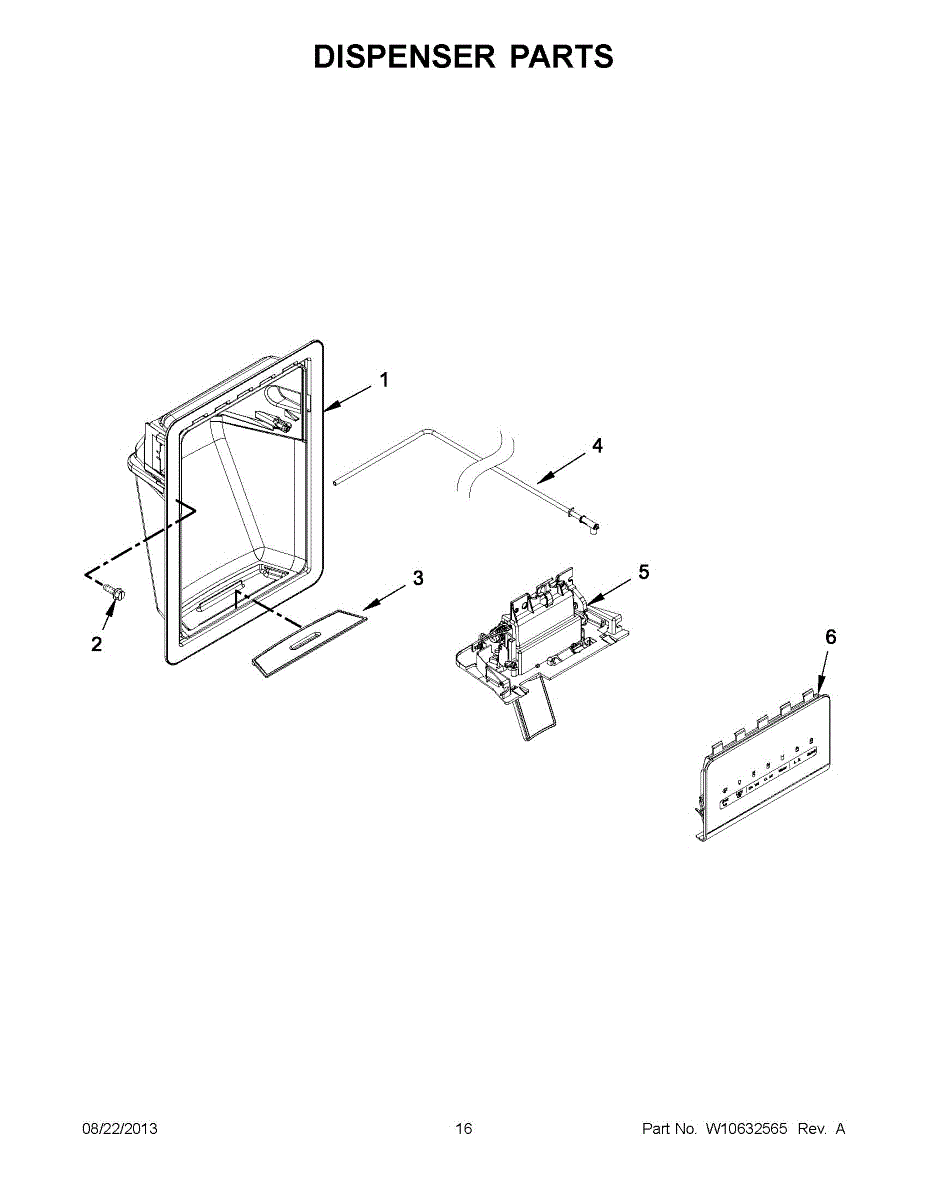

Parts for Whirlpool 7WRS22FDBW00: 09 - Dispenser Parts

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This dispenser grille sits in the well beneath your refrigerator's ice and water dispenser. It catches drips and small spills and gives the dispenser area a clean, finished look that's easy to wipe down and keep tidy.

• Collects drips and runoff from dispensing to protect the door surface
• Provides a stable resting surface for cups and bottles
• Removable for quick cleaning and maintenance
• Typical symptoms include cracks, broken tabs, heavy discoloration, or a grille that won't stay seated

• Usually a drop-in replacement: lift out the old grille and set the new one in the dispenser well
• Clean the dispenser well and clear the drain opening before installing
• Align and press down until the grille sits flat; do not force the plastic tabs
• If working around electrical or water components, disconnect power and shut off water for safety

Single water tube/fitting used in refrigerator water and ice systems to route supply water. Replacing a damaged tube restores reliable water flow and helps stop leaks and puddling under the appliance. What it does:

• Directs water from the household supply to the dispenser or ice maker.
• Common repair for visible leaks, puddles under the refrigerator, or intermittent dispenser flow.
• Restores consistent water flow so the dispenser and ice maker can fill properly.
• Replaces cracked, brittle or kinked factory tubing at the connection point.

• Shut off power and turn off the water supply before beginning work.
• Have a towel or small container ready to catch any remaining water in the line.
• Inspect connection seals and replace worn O-rings or gaskets as needed.

The Ice Door is an OEM part for Whirlpool refrigerators. It guides the ice from the ice maker into the dispenser, allowing for easy access to ice cubes or crushed ice. It helps prevent any spills or messes during the dispensing process.

A bad ice door can occur due to wear and tear, damage, or blockage caused by ice buildup. If you notice symptoms such as ice not dispensing properly, irregular ice cube sizes, or water leakage during the dispensing process, it may be time to replace the funnel chute.

Symptoms of a bad ice door include:

• Improper or inconsistent ice dispensing
• Irregular ice cube sizes
• Water leakage during the dispensing process

Repair your refrigerator's ice dispenser by replacing the faulty or damaged ice door with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Color: White
