How to replace ice maker WPW10300024 on a Whirlpool refrigerator

Is your refrigerator’s ice maker on the fritz, leaving you with warm drinks and frustration? Don’t worry—our handy guide is here to help you replace the troublesome Whirlpool ice maker assembly and restore your ice supply in no time. Check out the how-to video below to tackle this repair confidently and keep your appliances running smoothly!

Looking for the right part? Enter your appliance model number below to find the exact match and get your appliance running like new again!

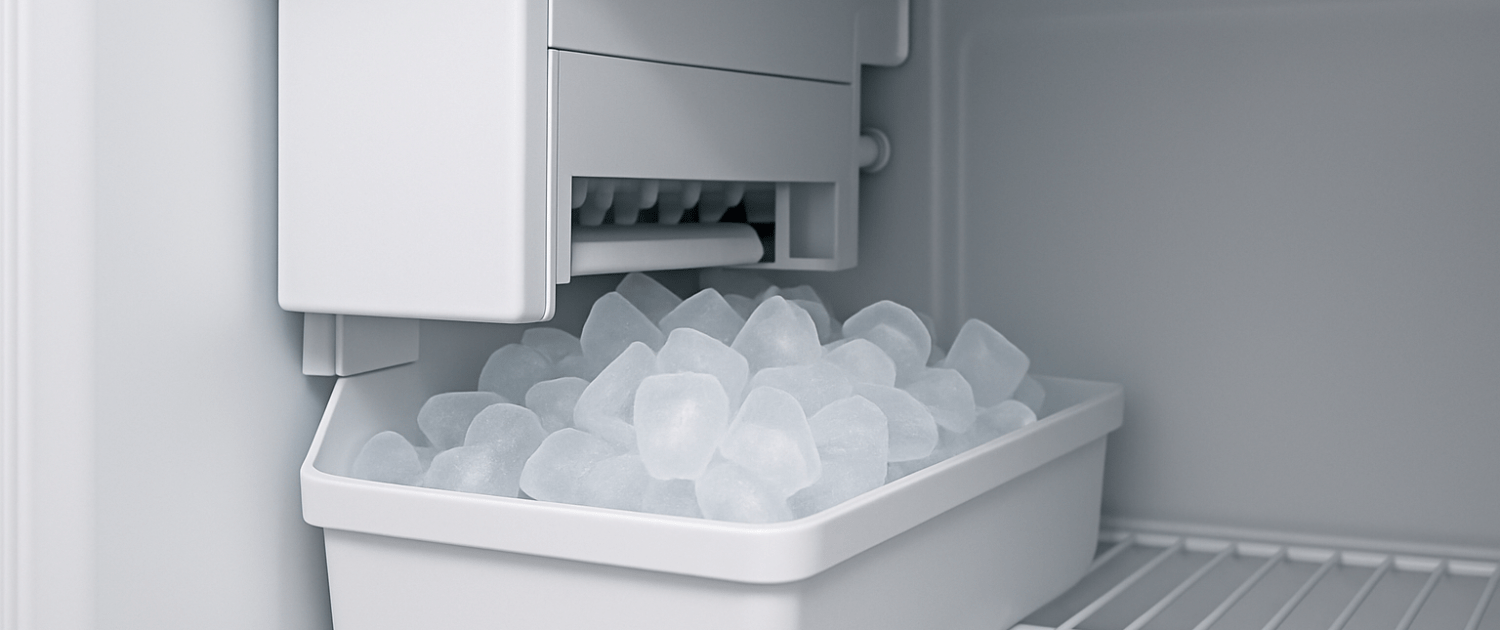

On a Whirlpool refrigerator, the ice maker assembly WPW10300024 is responsible for producing and dispensing ice, allowing your refrigerator to keep your drinks cool and refreshing. Over time, use and wear can cause the ice maker assembly to become damaged. Common signs that indicate the need for replacement include ice not being produced, ice clumping together, unusual noises, or leaks. Fortunately, with a few basic tools and some patience, you can tackle this repair yourself and get your refrigerator back in working order. So, let’s get started!

If you need any replacement parts for your appliance, you can enter your model number at AppliancePartsPros.com to order them. Most orders arrive in just two business days, and we have thousands of free guides to show you how to install your new parts.

The information in this article may not apply to your specific appliance model. We recommend consulting your manufacturer’s documentation or contact us with any questions.

Watch here: How To Replace: Whirlpool/KitchenAid/Maytag Refrigerator Ice Maker Assembly WPW10300024

Safety precautions

When working on any appliance, remember to keep safety first. Here are some tips to keep in mind:

• Always power off and unplug your appliance or switch off the circuit breaker before attempting any maintenance or replacement work. This keeps you safe by preventing any risk of injury from electric shock.
• Wear insulated work gloves to protect your hands from sharp metal parts, pinching hazards and debris.
• Take your time and don’t rush while working to prevent accidents and personal injuries.
• Work in a well-lit area so you can clearly see and access the interior parts.
• Clear your workspace of clutter and other obstacles. Keep children and pets away from the work area.
• Never work on internal parts with bare wet hands. Make sure the work area is completely dry.
• Check your user manual to see if there are specific installation or safety instructions for your part or appliance.
• Be gentle when handling or removing parts. Excessive force might damage the appliance or cause injury.
• Wear safety glasses when working with chemicals, dust or cleaning large debris to prevent injury.
• If the appliance has recently been used, give it plenty of time for any heating parts to cool down before working on it.
• Take pictures or make a note of wiring terminals or other connections before disconnecting to prevent any problems with reassembly.
• When working with wires, avoid touching any exposed wires or terminals. If you need to touch a wire, use a non-conductive tool or wear insulating gloves to prevent electrical shock.

Tools and materials needed

• Replacement part (make sure it’s compatible with your model before installing)
• 1/4″ nutdriver
• Fathead screwdriver

Replacement steps

Step 1: Disassembly and removal

1. Open both French doors of the refrigerator to access the ice maker compartment.
2. Locate the lock button on the ice container assembly.
3. Press the lock button and pull the ice container out.
4. Find the opening on the side of the ice maker compartment.
5. Insert a flat blade screwdriver into the opening and press down on the tab inside.
6. Slide the cover plate forward to remove it.
7. Identify the tab that holds the ice maker in position on the left rail.
8. Use the flat blade screwdriver to push in the tab and slide the ice maker out.
9. Grab the ice maker with both hands and pull it out gently.
10. Turn the ice maker over to access the locking tab.
11. Push down on the locking tab with the flat blade screwdriver and pull the plug apart.
12. Use the flat blade screwdriver to pry off the ice maker head cover.
13. Press on the tab of the harness block and pull it out using the screwdriver.
14. Pry out the connector plug with the flat blade screwdriver.
15. Use the quarter-inch nut driver to remove three screws that hold the ice maker in place.
16. Lift the assembly and slide it out, helping with the flat blade screwdriver if needed.
17. Use the flat blade screwdriver to pry out the arm and set it aside for reuse.
18. If applicable, discard any unnecessary brackets and install the thermal fuse into its clip.

Step 2: Installation and reassembly

1. Install the funnel at the back into the designated frame.
2. Attach the plug securely until it locks.
3. Use the quarter-inch screws and nut driver to mount the ice maker in place.
4. Insert the arm into its opening, ensuring it fits snugly.
5. Ensure the funnel and water inlet are in place, and verify that the fuses and plugs are securely connected.
6. Press the cover into position over the ice maker assembly.
7. Ensure the harness is out of the way and lift the assembly evenly into the opening.
8. Slide it into place on the rails.
9. Connect the plug securely.
10. Continue sliding the assembly in until it locks into place, indicated by a click sound.
11. Tuck the harness away neatly in the opening.
12. Slide in the cover to finish enclosing the ice maker compartment.
13. Slide the ice container assembly back onto the rails until it locks in place.
14. Ensure both doors are closed properly.
15. Restore power to the refrigerator and check that it’s cooling properly.

Additional information

Thanks for reading! We hope this guide helped you replace the ice maker assembly WPW10300024 on your Whirlpool refrigerator.
