Pd364gdbs Parts

This is a cooktop burner igniter OEM replacement part for Bosch cooktops and ranges and is sold as an individual part. This part creates a spark that ignites the burner within your cooktop or stovetop and is made of a combination of metal and ceramic.

Causes of a bad ignition plug can include issues with the electronic module, worn electrodes that no longer spark reliably, or damaged wiring.

Symptoms of a bad ignition plug include:

• Gas burners that will not light or remain lit
• Delayed ignition of one or more burners
• Intermittent or no sparking from the ignition plug

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Grate Foot Kit is an OEM part for Bosch ranges. This kit includes the small rubber feet that attach to the bottom of the range grates, providing stability and preventing the grates from scratching the range surface.

Over time, the grate feet can wear out or become damaged due to exposure to high temperatures, regular cleaning, or accidental impact. Missing or worn-out feet can cause the grates to sit unevenly or scratch the range surface.

Symptoms of a bad grate foot kit include:

• The range grates sitting unevenly or wobbling
• Scratches or damage on the range surface
• Grates sliding or shifting during cooking
• Missing or visibly worn-out rubber feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Potentiometer is an OEM replacement part for Bosch gas range or cooktops. It functions as a three-terminal resistor that adjusts the flow of electric current, which in turn, controls the ignition and temperature of the cooktop. This component is essential for the precise operation and control of the gas burners, ensuring they light up and maintain the desired flame intensity.

Causes of a malfunctioning Potentiometer can be attributed to wear and tear, electrical issues, or damage due to spills and cleaning products. A compromised potentiometer affects the flow of electric current, leading to issues with the ignition and temperature control of the gas burners.

Symptoms of a bad Potentiometer include:

• The cooktop not lighting or staying lit
• The ignitor continuously clicking without igniting the burner
• Inability to adjust the flame intensity or temperature accurately

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Venturi Gas Tube is an OEM replacement part for Bosch gas cooktop ranges. Its primary function is to ensure an optimal gas/air mixture for consistent and efficient burner combustion, thereby enhancing the overall performance of the cooktop.

Causes involve normal wear of internal components from continuous heating and cooling cycles. Corrosion damage may also disrupt the venturi tube over time.

Symptoms of a faulty venturi gas tube include:

• Unstable or hard-to-control flame levels
• Potential issues shifting burner flames out of their intended position
• Safety risks including carbon monoxide from improper fuel/air balance

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

Used to hold down the jet holder assembly.

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Oven Control Board is an OEM part for Bosch ranges and ovens that controls the power supply and operation of your oven. It receives signals from the control panel and relays the appropriate power to various heating elements and components, allowing you to cook.

A bad control board can occur due to electrical surges, component failure, or internal malfunctions. Signs of a faulty board include power irregularities, error codes, or unresponsive controls.

Symptoms of a bad control board include:

• Oven not turning on or heating
• Unresponsive or erratic control panel
• Error codes displayed

Replace your malfunctioning control board with this genuine OEM Bosch part to restore your oven. This Bosch part can also be used on Thermador and Gaggenau appliances.


The temperature sensor is an electronic probe that monitors internal appliance temperature and reports it to the control so it can regulate operation. Replacing a failed sensor restores more accurate temperatures and can clear temperature-related error codes. What it does:

• Senses internal temperature via resistance changes and sends the signal to the electronic control
• Helps the control reach and maintain the set temperature during operation
• Common failure symptoms: too hot/cold, won't reach set temp, long/short cycles, temperature error codes
• Can cause preheat to stall or the unit to shut off early (model dependent)

• Includes: 1 temperature sensor

• Disconnect power at the breaker before servicing
• Location and access vary by model; typically mounts with screws or a clip and connects to a 2-wire harness
• Handle the connector and wiring carefully; route and secure away from hot or moving parts
• After installation, clear stored errors and run a test cycle to proper readings

This replacement jet holder fits the 15,000 burner on gas cooktops and ranges. It supports the orifice and channels gas to the burner head, helping restore a stable flame and consistent heat when the original holder is damaged or corroded.

• Positions and secures the orifice for the 15,000 burner
• Routes gas from the valve/manifold to the burner head
• Helps maintain proper flame shape and output
• Replace if cracked, warped, or corroded; symptoms can include weak or uneven flame, yellowing, or difficulty lighting at that burner

• Shut off gas supply and disconnect power before servicing
• Remove grates, burner caps, and heads; raise or remove the cooktop surface to access the holder
• This holder is specific to the 15,000 burner position; transfer the orifice and any seals as required
• After reassembly, check all gas connections for leaks with a soap-and-water solution and verify burner operation

The Solenoid Valve is an OEM part for Bosch ranges. Located inside the control panel, the solenoid valve regulates gas to individual burners during the cooking cycle. It opens and closes electrically to direct fuel when its paired control knob is turned on.

Symptoms of a bad solenoid valve include:

• Inability to ignite or maintain a flame on specific burners
• Burners failing to respond to control settings
• Hesitation or delay in burner engagement
• Range functions in an unpredictable manner

Causes can involve normal wear of moving internal parts, mineral buildup inhibiting valve movement, or physical damage. Failure reduces the range's functionality and safety.

This OEM Bosch part is also compatible with Thermador and Gaggenau models.

This replacement tray restores the original fit and support in your appliance. It provides a stable surface for items and replaces a damaged or missing tray to keep things organized and functioning as intended.

• Provides a secure surface to hold items where the original tray sits
• Restores proper fit so items don't tip, slide, or fall
• Direct replacement for a cracked, warped, or missing tray
• Helps ensure the section operates as designed once the tray is seated correctly

• Disconnect power if accessing internal areas or moving the appliance
• Remove the old tray and clean the supports/rails before installing
• Align with existing guides or tabs and press/slide into place until fully seated
• Verify a level, secure fit before loading items back onto the tray

The Tube is a genuine OEM part for Bosch ranges. This part facilitates the delivery of gas to the surface burners, ensuring that they operate efficiently and safely.

Over time, the Tube may exhibit signs of wear or damage due to rusting, physical damage or natural degradation.

Symptoms indicating the need for a new Tube include:

• A decrease in burner flame quality or uneven flames, which can affect cooking performance.
• The smell of gas in the vicinity of the range, signaling a potential gas leak.
• Difficulty igniting the surface burners or experiencing incomplete combustion.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Re-Ignition Spark Module is an OEM replacement part Bosch ranges. It is an electronic component that generates sparks to reliably light the burners on a gas cooktop. Consistent sparking is necessary for fully lighting the burner flames and facilitating safe and efficient cooking operation.

Causes of a bad spark module can include normal component wear over time or damage from exposure to moisture or other contaminants. Improper cleaning methods could potentially impact performance.

Symptoms of a bad spark module include:

• Burners not lighting or sparking when the knob is turned
• Unreliable or intermittent lighting requiring multiple attempts
• Burner flames that emit an inconsistent or unstable pattern
• Sparks appearing outside of the burner ring pose a safety risk

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore model

This rotary potentiometer converts shaft rotation into an electrical signal the control board can read, providing precise position feedback for user selections. Replace it if inputs become erratic, jump between settings, or the control stops responding.

• Provides rotary position feedback to the electronic control
• Enables accurate selection and adjustment of functions or setpoints
• Wear or damage can cause drifting, dead spots, or incorrect readings
• Intermittent or no response to input is a common failure symptom

• Disconnect power before servicing
• Access the control/console area to reach the component
• Note shaft orientation and any connector positions; transfer exactly to the new part
• Handle electronics with ESD care and verify smooth, full-range operation after reassembly

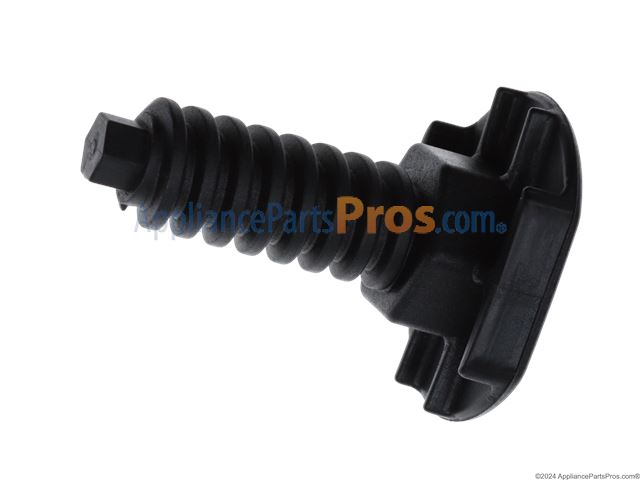

This Foot is an OEM component for Bosch Ranges. Functioning as a stabilizing support for the range, these feet provide balance and elevation, ensuring the appliance's proper positioning and stability on the floor.

A common issue with malfunctioning or damaged Foot involves wear, breakage, or loss of the foot's grip, leading to instability or uneven placement of the range. Exposure to weight strain, movement, or irregular floor surfaces can contribute to foot damage over time.

Symptoms of defective or worn-out Foot may include:

• Uneven or wobbly placement of the range
• Difficulty in leveling the appliance
• Visible damage or missing components in the feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

A replacement selector knob that lets you turn and choose appliance settings smoothly and safely. Restores a damaged, loose, or missing control knob so you can change cycles and temperatures with confidence. What it does:

• Fits onto the control shaft to select functions, cycles, or heat levels
• Replaces cracked, stripped, or worn knobs that won't stay set or slip during use
• Stops erratic control feel and restores a positive detent or indexed rotation
• Works with the matching control shaft shape

• Disconnect power to the appliance before servicing
• Align the knob splines with the control shaft and push straight on until fully seated
• If knob is stiff, check for debris on the shaft; do not force or hammer the knob into place
