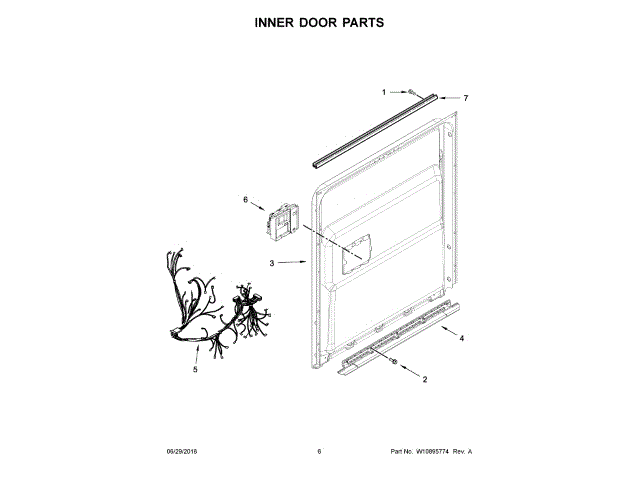

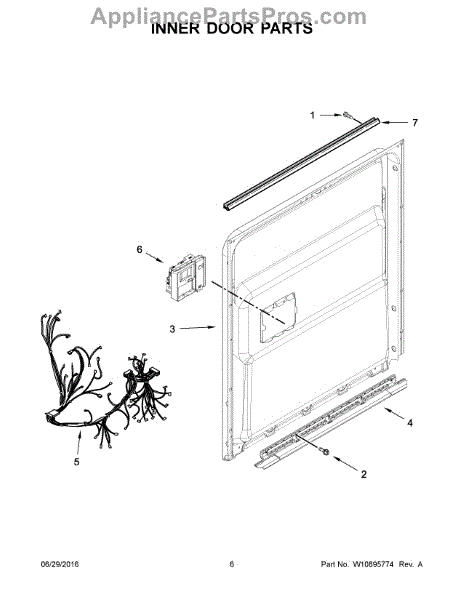

Whirlpool W10834759 Wire Harness (Assembly) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W10834759 replaces AP6033956.

Description

This wire harness assembly routes power and signals between your appliance's controls and internal components, restoring reliable electrical connections for proper operation. Designed to replace a damaged or worn factory harness. What it does:

• Connects control board, motors, sensors, and switches so components can communicate and receive power
• Restores intermittent or lost electrical connections caused by frayed wires or broken terminals
• Helps stop symptoms such as no power to specific components, erratic operation, or failure to start
• Provides factory-style connector shapes and routing to match original wiring paths

What's included: One wire harness assembly as pictured. Install notes:

• Disconnect power (unplug or shut off breaker) before starting work
• Match wire colors and connector shapes to the original harness; reference the appliance wiring diagram
• Inspect connectors and routing to avoid pinching or chafing when reinstalling panels
