Whirlpool W11248251 Wire Harness (Main) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11248251 replaces AP6974094.

Description

This wire harness connects the appliance's main electrical components to restore proper circuit routing and signal flow. Replacing a damaged harness helps stop intermittent power loss and erratic component operation. What it does:

• Routes power and signals between control board, motors, switches, and sensors
• Replaces frayed, burned, or broken wiring that can cause no-power or intermittent faults
• Restores correct connector fit and secure electrical contact for reliable operation
• Helps prevent short circuits and component failure when installed correctly

What's included:

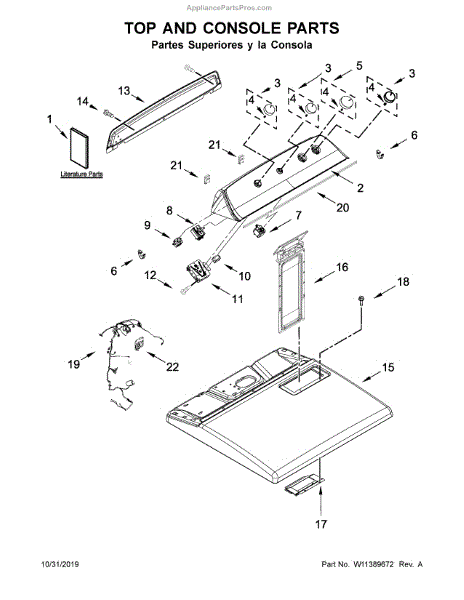

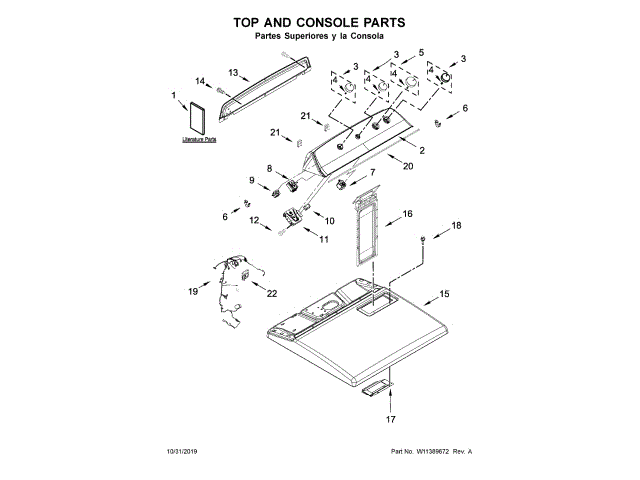

• One complete wire harness as shown

Install notes:

• Disconnect power (unplug or switch off breaker) before beginning any repair
• Label or photograph connector locations to ensure correct reassembly
• Inspect connectors and mating parts for damage; replace damaged terminals or housings
• Secure harness away from heat and moving parts
