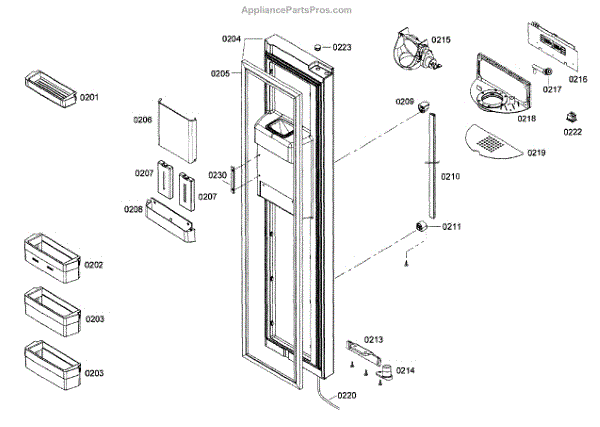

Patrick W Brooklyn , NY January 06, 2015 Appliance: Model B22CS30SNS/01 The led light on the water/ice dispenser stopped working I ordered the support, which I wasn't sure if it included the LED lights, because I could not see them due to the angle of the picture in the parts diagram. However, when the part arrived, the LED's were included and the installation was straight forward. Saved $$$ by not having to make a service call. Read More... 5 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Thomas R Chicago , IL October 28, 2019 Appliance: Bosch Refrigerator B22CS30SNS/01 The LEDs in the support stopped working Turned off frig, turned off the water supply. Protected the SS surface around the display unit with masking tape. Pried out the display unit on the top with a wide putty knife. Unplugged display unit. Unscrewed four TORX screws and pulled support out. Unplugged the heater switch and LED plugs from old support. Assembled in reverse order. Read More... 1 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
