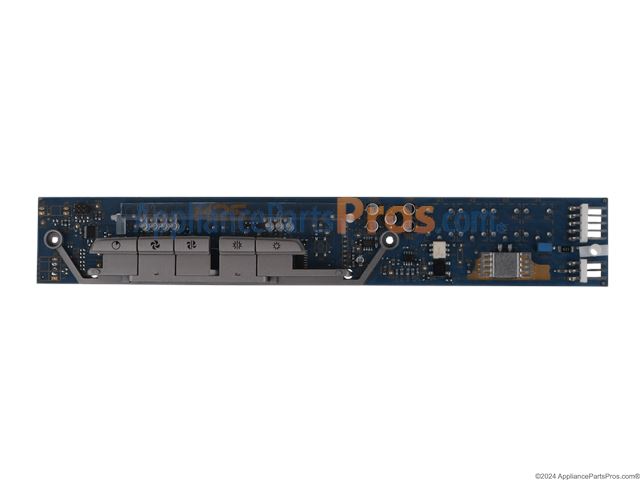

Broan SV09225 Electric Control (Range Hood) OEM Part

Product Details

Genuine Broan part.

Cross Reference Information

Part Number SV09225 replaces AP5949203, 3448648, V09225.

Description

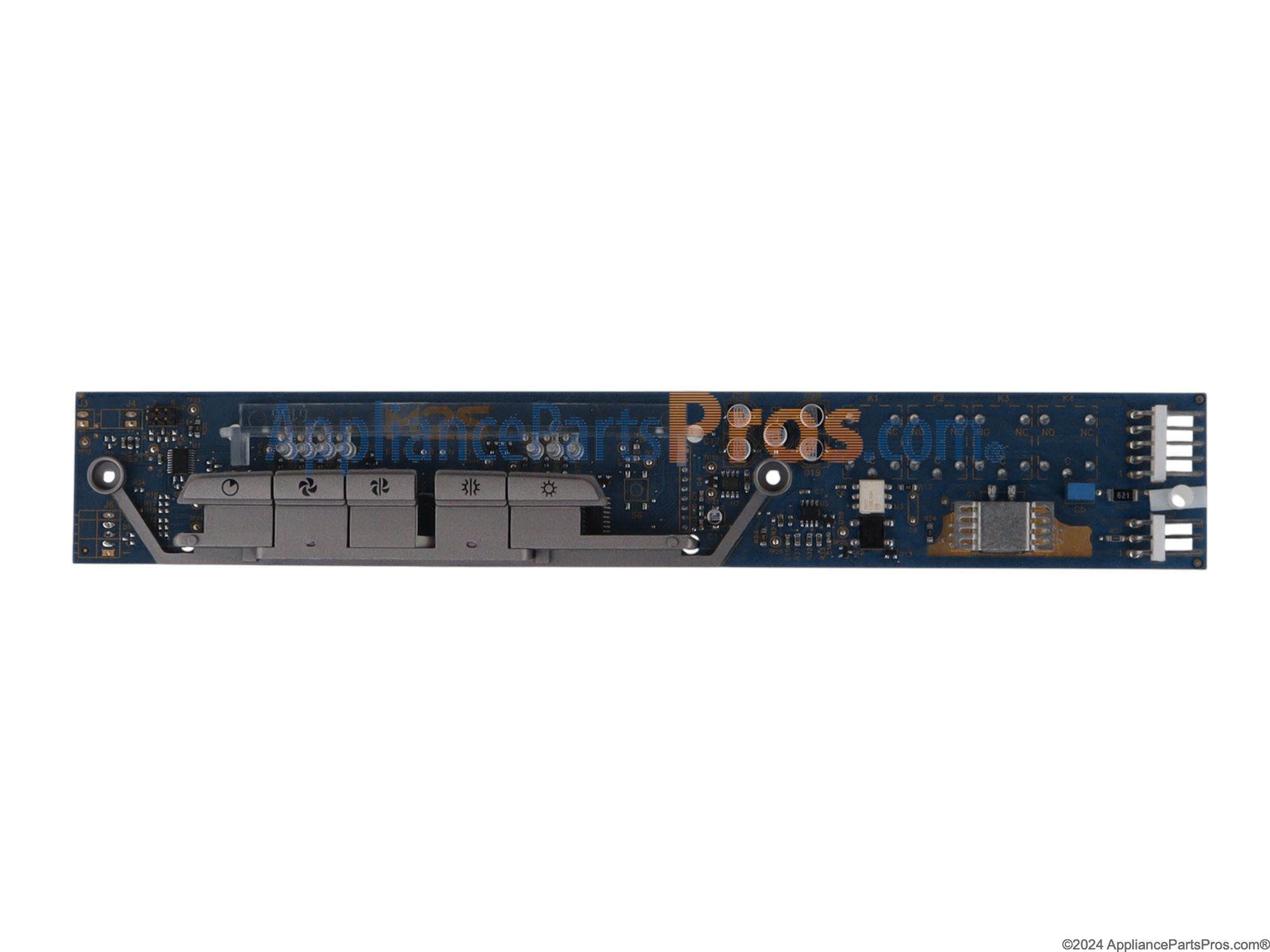

This electric control is the main electronic board that runs your range hood. Replacing a failed control restores reliable fan speed and light operation so the hood responds properly to the user buttons or touch controls.

• Regulates power to the blower motor and hood lights based on user input
• Switches between available fan speeds per model design
• Interprets keypad commands for on/off and lighting functions
• Common failure symptoms: no fan or lights, only one speed works, unresponsive buttons, or intermittent operation

What's included: Includes 1 electric control. Install notes:

• Disconnect power at the breaker and verify no voltage before servicing
• Handle the board by the edges and use ESD precautions
• Photograph wiring; move connectors one at a time to matching terminals
• Reuse original mounting hardware and test operation before final reassembly
