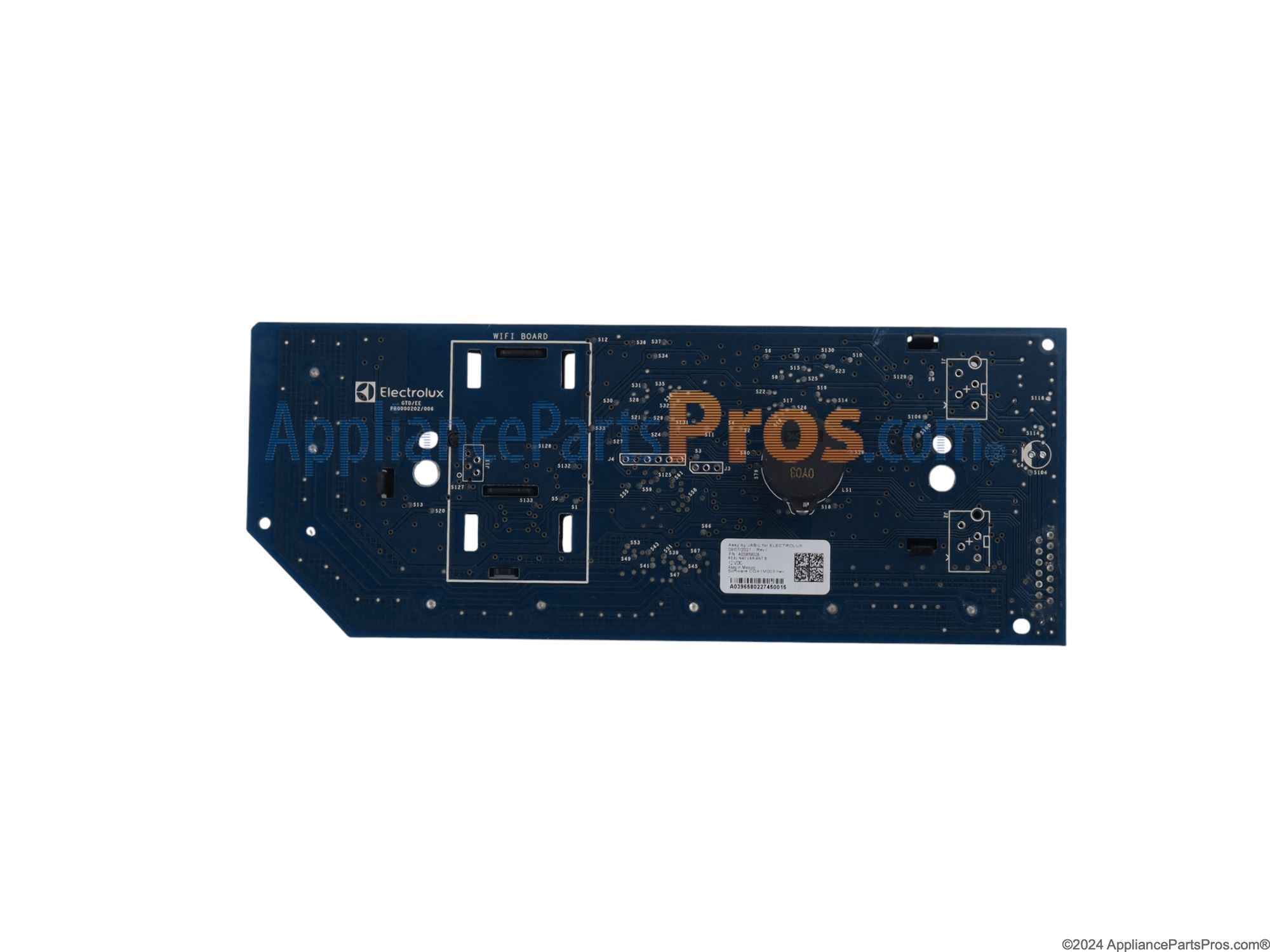

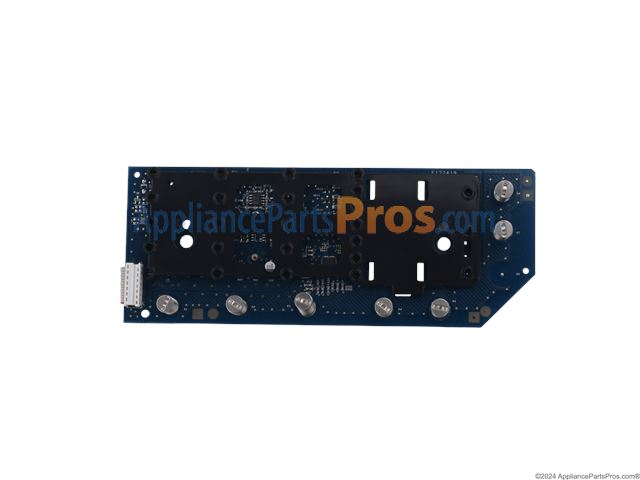

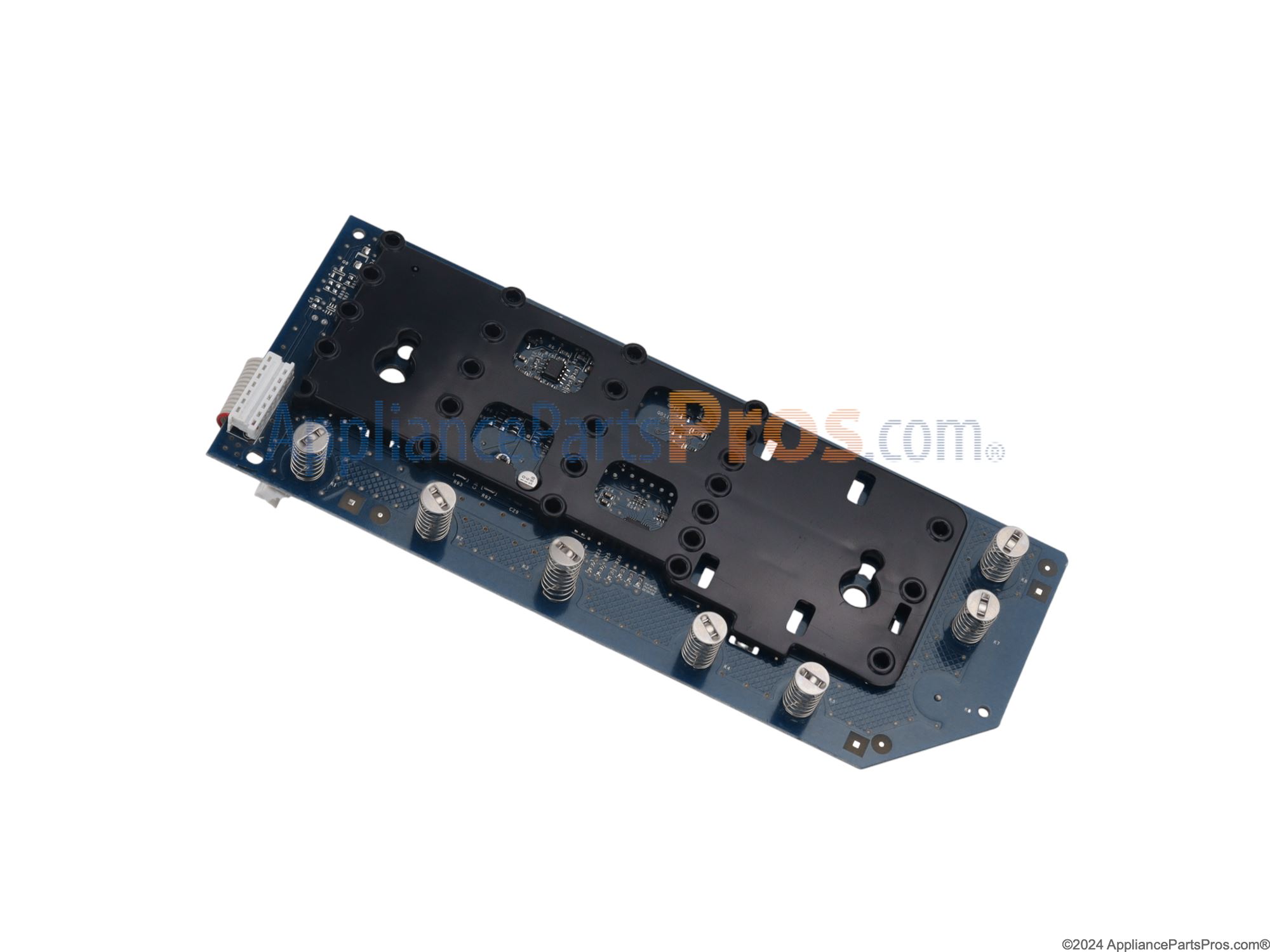

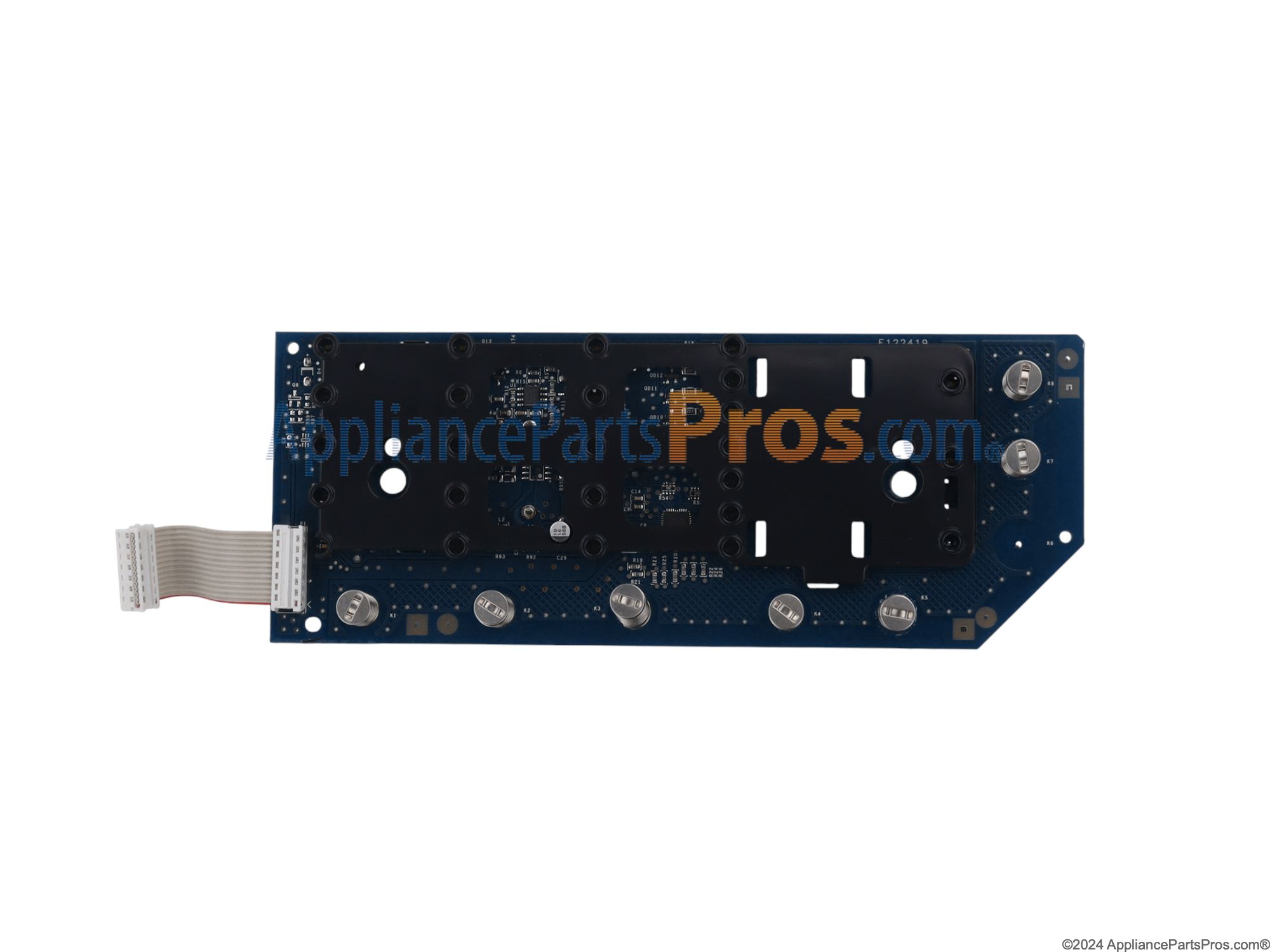

Frigidaire 5304505611 User Interface Control Board Assembly (Programmed) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Washer Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5304505611 replaces AP6030118, 4452483, PS11766152.

Description

This pre-programmed user interface control board assembly manages the buttons and display on your appliance's control panel. Replacing a failed UI board restores responsive controls and accurate indications from the panel. What it does:

• Interprets keypad inputs and drives the display/indicator LEDs
• Sends user selections to the main control for proper operation
• Helps resolve an unresponsive or intermittent control panel
• Addresses blank, flickering, or garbled display behavior

What's included:

• 1 pre-programmed user interface control board assembly

Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection; handle the PCB by the edges only
• Photograph wiring and ribbon connections; match keyed connectors and orientation on reassembly
• Reuse existing mounting hardware, trim, and overlays as needed; ensure all harnesses are seated before restoring power
