Frigidaire 5304514825 Electronic Oven Control Board (Surface Mount Console) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5304514825 replaces AP6328982, 4839378, 5304504540, PS12365837.

Description

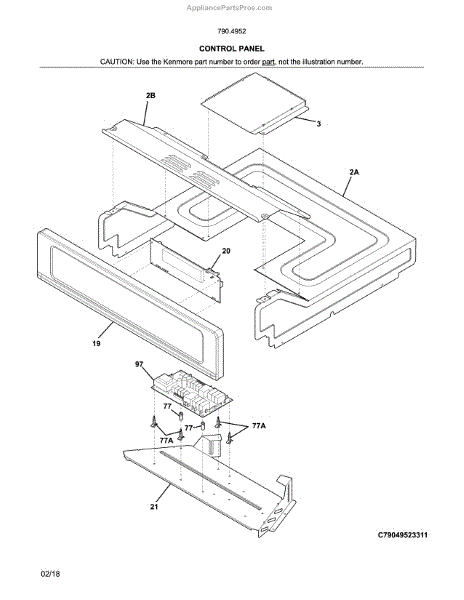

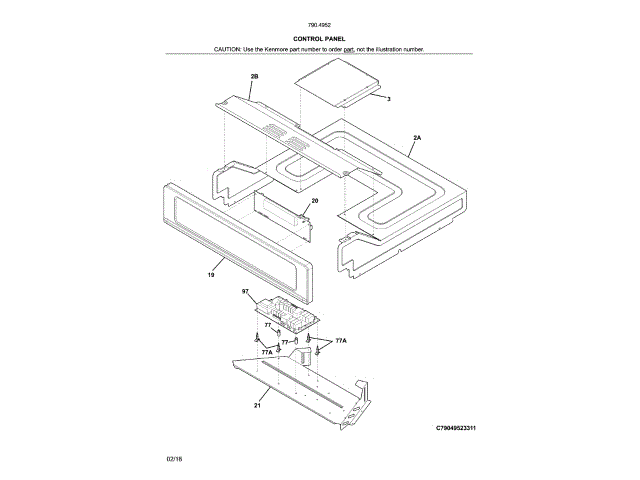

This electronic oven control board replaces a failed range control to restore oven display, touchpad response, and timed cooking functions. It mounts behind the front console and connects to the main wiring harness for full user-interface control. What it does:

• Manages oven functions such as bake, broil, timer, clock, and temperature control
• Powers and displays oven status; a faulty board can cause a blank display or unresponsive touchpad
• Controls heating relay signals; failures may result in oven not heating or elements not cycling correctly
• Interfaces with keypad and other modules to execute user commands

What's included:

• One electronic oven control board (console PCB) as shown

Install notes:

• Disconnect all power to the appliance before beginning any service to avoid shock
• Handle the board by its edges and avoid touching components to prevent ESD damage
• Secure all plugs; do not force connectors
• Reassemble the console and test oven functions after restoring power
