Best Seller
Manufacturer Part

Frigidaire 5304509630 Control Assembly (Main Electronic Control Board) OEM Part

Manufacturer's Part Number: 5304509630
Genuine Frigidaire part
Appliance Compatibility Tool
$244.31
IN STOCK - SHIPS TODAY

Secure and trusted checkout with

IN STOCK Less than 100 left
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Most orders delivered in 1-2 business days

Call us 1-877-477-7278
Need Help? Chat with a Pro

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5304509630 replaces AP6230686, 5304509631.

Description

This control assembly is the main electronic control board for the appliance's user interface and operating functions, restoring reliable control of cycles, display, and timed operations. What it does:
  • Manages oven/range/dishwasher cycle selection, timing, and core electronic functions.
  • Supplies the display and touch/selector input signals so settings register and show correctly.
  • Regulates control outputs that start heating elements, motors, or valves per selected programs.
  • Common symptoms it can fix: blank or unresponsive display, unresponsive buttons/keys, oven/range not starting or not following selected settings.
What's included: One control assembly. Install notes:
  • Disconnect power at the breaker before servicing to avoid shock or damage.
  • Handle the board by the edges and avoid touching electronic components or connector pins.
  • Verify all wiring harness connectors are fully seated; match harness routing to the diagram before restoring power.

Have questions? Ask our pros!

Contact us in a way that is convenient for you

Call us 1-877-477-7278
Need Help? Chat with a Pro
Or ask a question by filling in the form

Share your thoughts with other customers

Ask a Question

Cross Reference Information

Frigidaire 5304509630 Control Assembly (Main Electronic Control Board) OEM Part

Part Number:
OEM18692067
Manufacturer's Part Number:
5304509630

Fits 1 model

ManufacturerModel NumberDescription

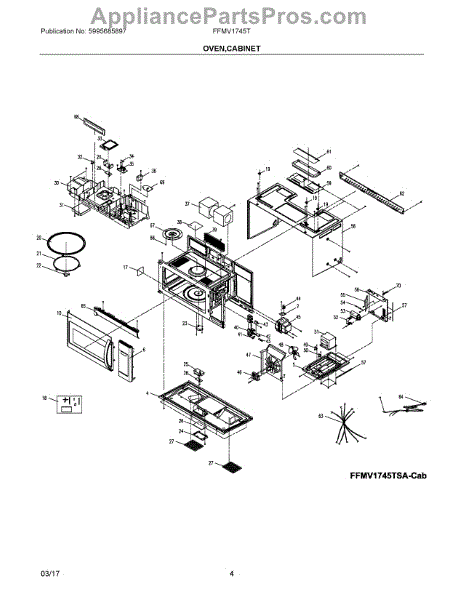

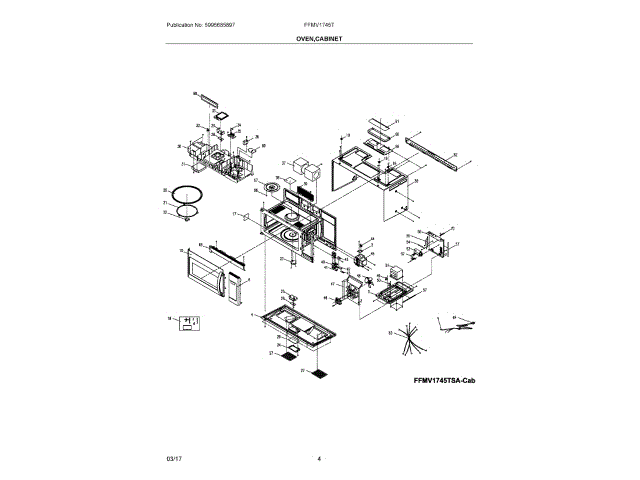

FrigidaireFFMV1745TWAMICROWAVE, OVER-THE-RANGE
