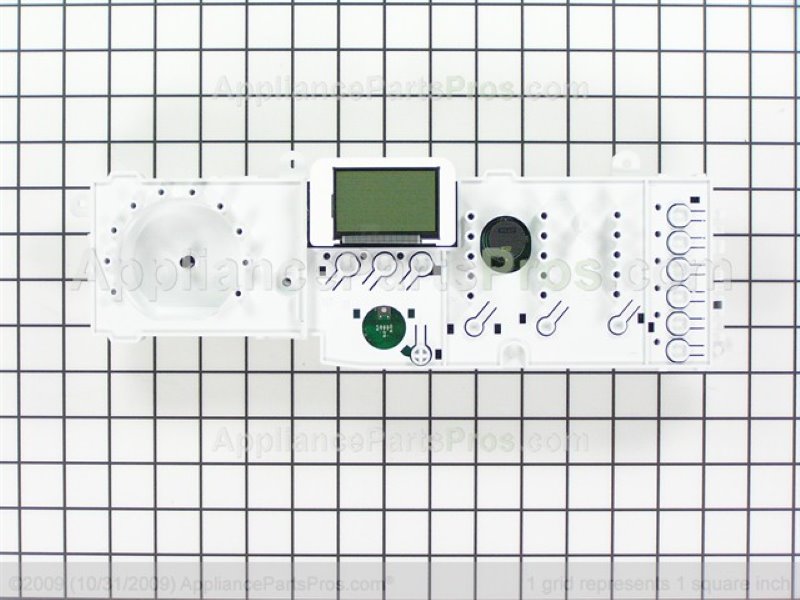

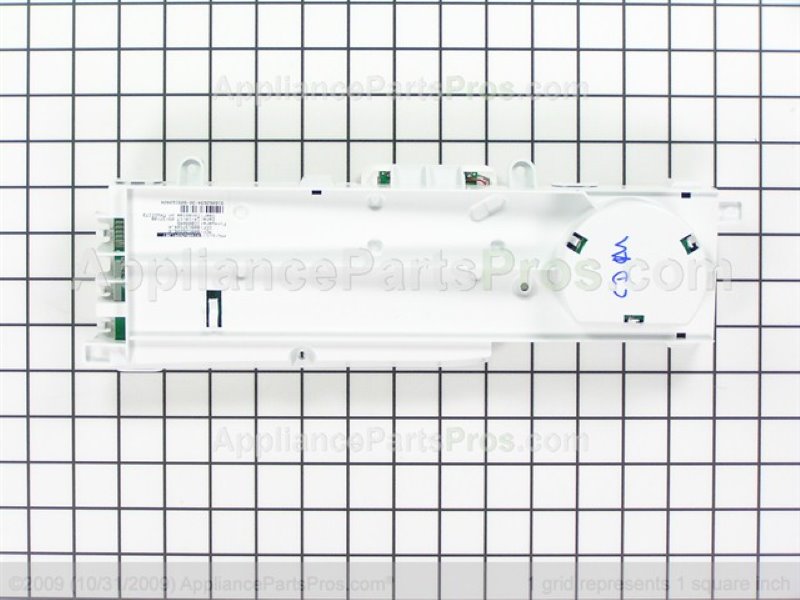

Frigidaire 809160404 Control Board (Electronic Control Module) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Dryer Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 809160404 replaces AP5950032, 134994710, 3515946, 7134994710, PS10057456.

Description

This is the electronic control module that manages appliance functions, timing and user interface signals so your appliance operates correctly. Replacing a faulty control board restores reliable command of cycles and electronic features. What it does

• Receives input from buttons/controls and sends commands to motors, valves and heating elements
• Manages cycle timing, user selections and status signals
• Faulty board can cause unresponsive controls, incorrect cycles, error codes or no power to controlled components
• Helps stop intermittent or erratic operation caused by damaged circuitry or failed components on the module

What's included One electronic control board Install notes

• Always disconnect power at the breaker or unplug the appliance before starting work
• Handle the board carefully and avoid touching circuit traces; use ESD protection if available
• Keep fasteners and connectors in their original positions; match connector locations during reassembly
