Frigidaire 316630005 Electronic Oven Control Board (Clock/Timer) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Range / Cooktop / Oven Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 316630005 replaces AP5736344, 3016956, PS8689402.

Description

This electronic control board manages the oven's heating functions and the clock/timer display. Replacing a failed controller restores accurate temperature control, reliable cooking modes, and a working display on your range or wall oven. What it does:

• Controls heating element relays based on user input and temperature sensor feedback
• Operates the digital display, clock, and kitchen timer
• Coordinates oven modes such as preheat, timed bake, and self-clean
• Common symptoms of a failing board: no heat or erratic temperatures, blank/unresponsive display, beeping or error codes, inability to start or cancel bake/broil

What's included:

• 1 electronic control board (controller) assembly

Install notes:

• Disconnect power at the breaker before servicing; this board carries live voltage

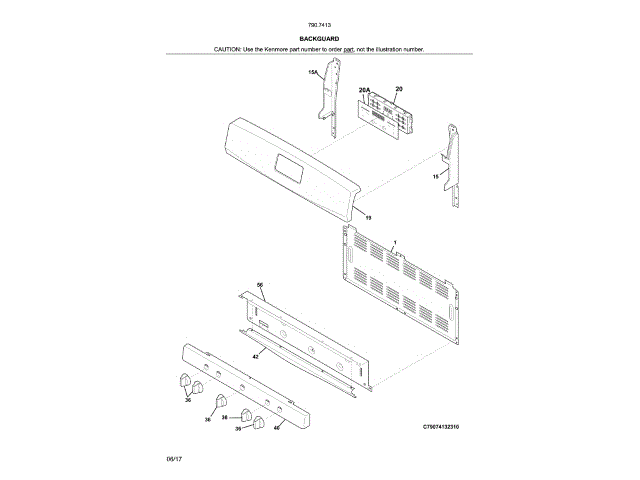

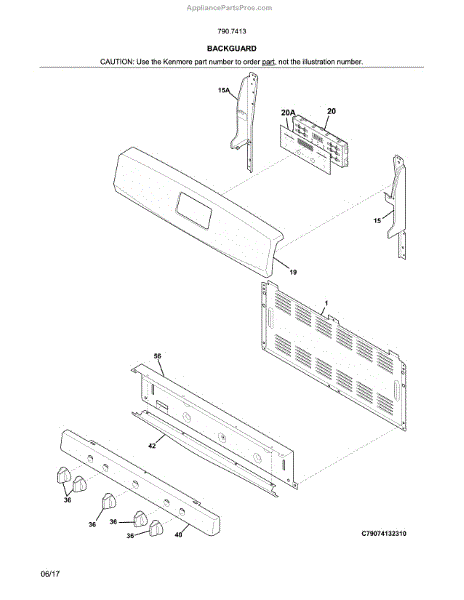

• Access through the control panel; remove panels/screws as needed to reach the board
• Move wire connectors one at a time from the old board to the new; take photos for reference
• Use ESD protection and avoid touching circuitry; set the clock and test all oven functions after installation
