Ge WD22X10066 Middle Spray Arm Assembly OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WD22X10066 replaces AP4511836, 1567279, AH2374242, EA2374242, PS2374242, WD22X10083.

Description

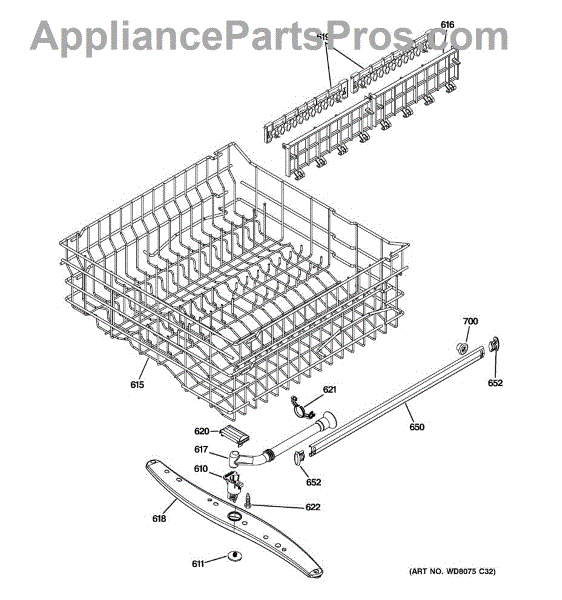

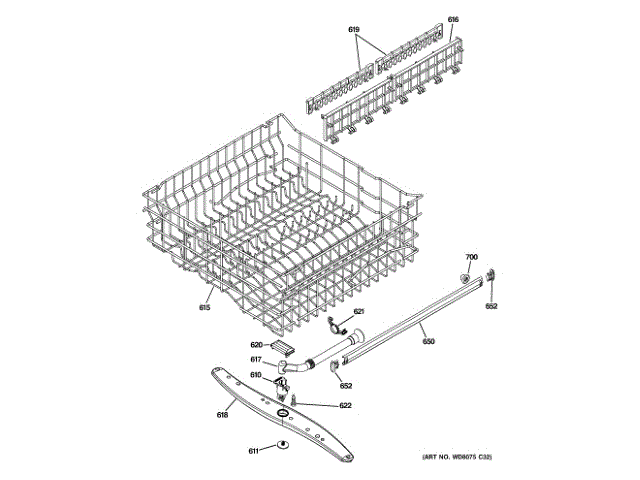

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

What's included: 1 middle spray arm assembly Install notes:

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation
