Ge WB02T10609 Radiant Element Bracket OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB02T10609 replaces AP5809895, 3453249, PS8766972.

Description

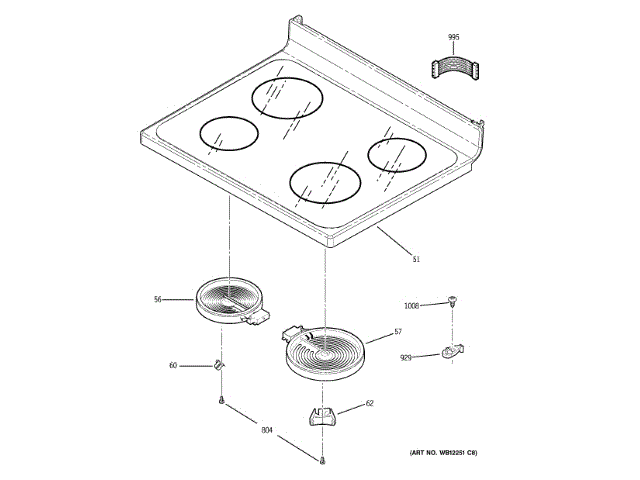

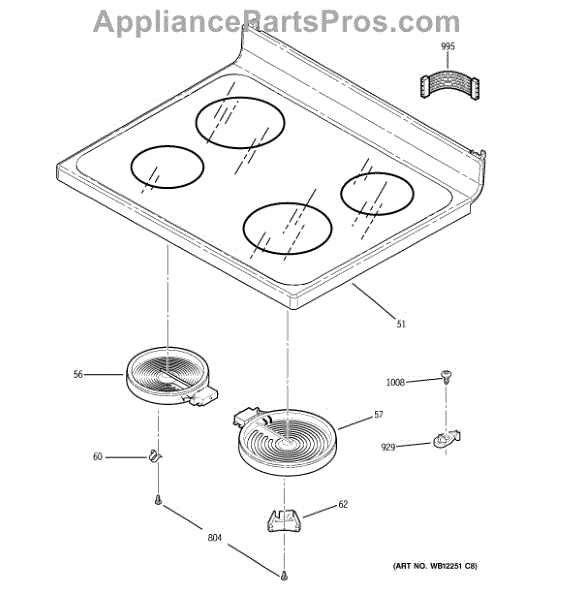

This bracket secures the radiant surface element beneath a smooth-top range or cooktop. Replacing a bent or broken bracket restores proper element position so it stays stable under the glass for consistent performance.

• Supports and centers the radiant heating element under the glass top
• Maintains correct clearance and alignment with the cooktop
• Helps prevent element movement, vibration, or sagging
• Symptoms include a loose/wobbly element, uneven heating, or visible damage to the original bracket

What's included: One bracket.

• Disconnect power at the breaker and allow the unit to cool completely
• Lift and support the glass top to access the element assembly
• Note wiring/orientation; transfer the element to the new bracket without stressing terminals or leads
• Ensure the element is centered and secured before reassembly and testing
