Ge WR9X565 Defrost Timer OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Refrigerator Control Board and Refrigerator Defrost Timer, Adaptive Defrost Control.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WR9X565 replaces AP2061755, 311082, AH310990, EA310990, PS310990, WR09X0565, WR09X10103.

Description

The defrost timer governs the automatic defrost cycle, periodically switching the refrigerator from cooling to defrost. Replacing a failed timer restores reliable defrosting to limit frost buildup and help maintain steady, consistent temperatures. What it does:

• Advances the system through run and defrost periods at set intervals
• Sends power to the defrost heater during defrost, then returns the unit to cooling
• A failed timer may cause heavy frost on the evaporator, poor cooling, or continuous running
• A timer that does not advance or is stuck can leave the refrigerator in defrost or prevent defrost entirely

What's included:

• 1 defrost timer

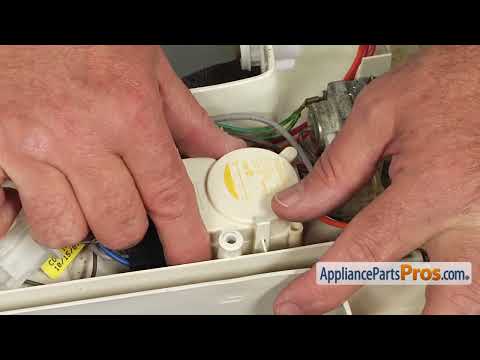

Install notes:

• Disconnect power before servicing
• Access location varies by model
• Photograph wire positions; move wires one at a time to the matching terminals on the new timer
• Transfer any mounting bracket, secure the timer, and restore power to verify operation
