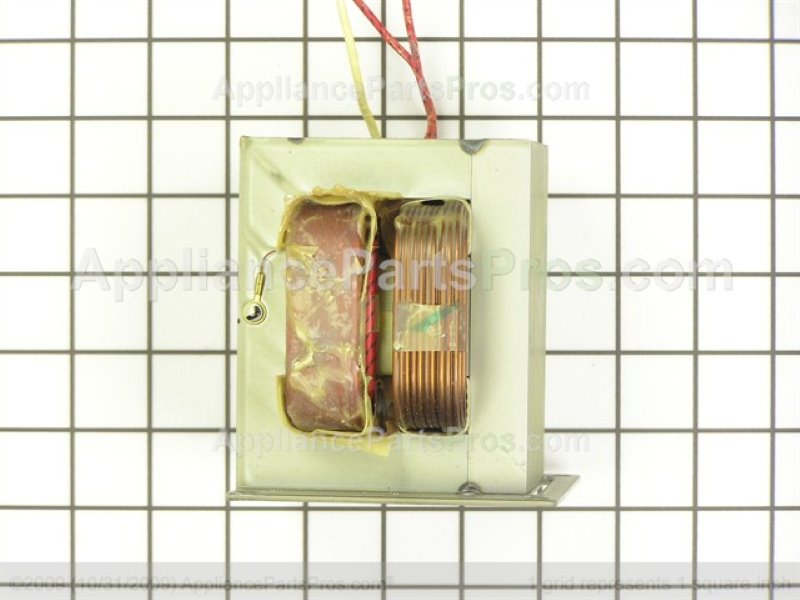

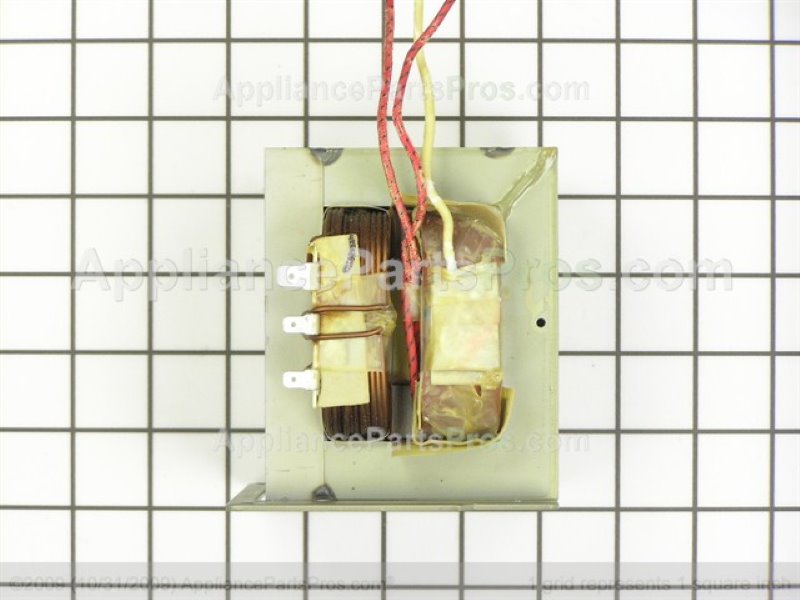

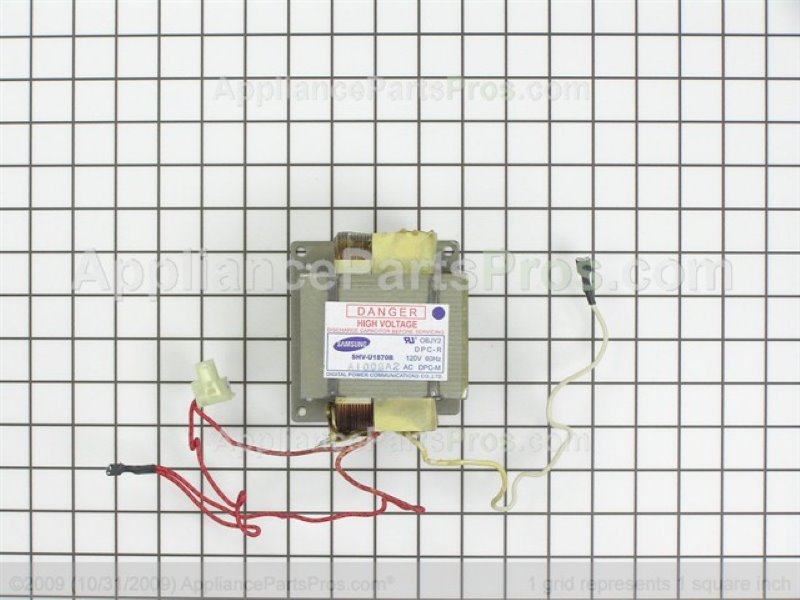

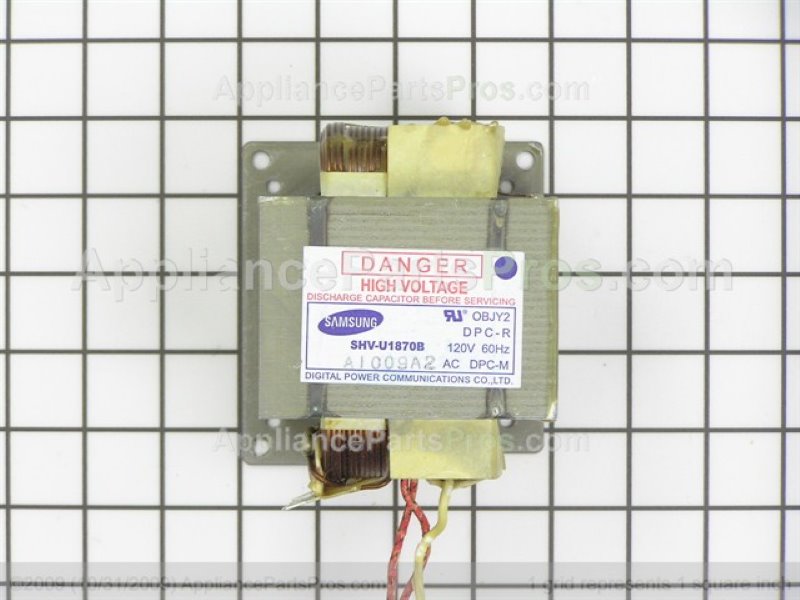

Ge WB27X10867 High-Voltatransformer (Magnetron) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Microwave Transformer.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB27X10867 replaces AP3860593, 1167215, AH1016668, EA1016668, PS1016668.

Description

This high-voltage transformer supplies the elevated voltage needed by the magnetron to produce microwave energy. Replacing a faulty transformer restores heating performance and reduces risk of electrical faults in the oven. What it does:

• Converts line voltage to the high voltage required by the magnetron to generate microwaves.
• Can cause no-heat conditions when failed; replaces a transformer that no longer powers the magnetron.
• Works with the HV capacitor and diode as part of the microwave high-voltage circuit.

What's included: One high-voltage transformer. Install notes:

• Disconnect power at the house breaker and unplug the appliance before servicing.
• The high-voltage capacitor can hold a dangerous charge—discharge it properly before touching HV components.
• Use insulated tools and avoid contact with transformer terminals; refer to the service manual for wiring and mounting details.
