Ge WB18X32543 Infinite Switch Wiring Harness (Single) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB18X32543 replaces AP6874064, WB18X24519.

Description

This wiring harness connects the oven or range infinite (rotary) control to the appliance's power and selector circuitry, restoring proper control signal routing for temperature or speed settings. Use to replace a damaged or burned harness to regain reliable control operation. What it does:

• Provides the factory wiring connections for an infinite (rotary) control so the control can select heating levels or fan speeds
• Transfers power and control signals between the infinite switch and the appliance wiring
• Commonly replaced when wires are frayed, melted, broken, or when the control does not respond reliably
• Helps eliminate intermittent operation, no-heat or stuck-selector symptoms caused by open or shorted harness wiring

What's included:

• One infinite switch wiring harness

Install notes:

• Disconnect power to the appliance at the breaker before servicing to avoid shock hazard

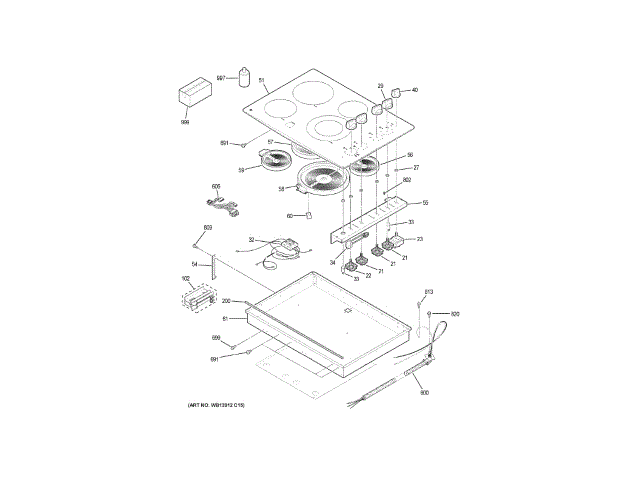

• Verify the harness routing and connector orientation with the parts diagram before disconnecting components
• Replace only with the correct harness PN to ensure proper fit and connector compatibility
