Ge WR71X10196 Ice Bucket Shelf OEM Part

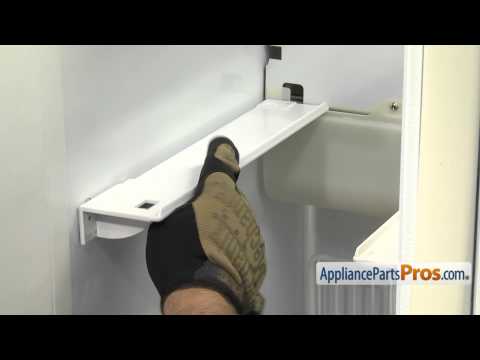

Drilled out the rivets on the rear of the bucket shelf on each side (needed an angle drive drill for the left side) and removed the front screws. Installed the new shelf both sides with original screws in the front and 8-32 bolts and nuts in the rear. 3 screws to install the bucket to the auger assembly.

Just like the You Tube video on AppliancePartsPro except used a screw and nut instead of rivet.

Replaced with new ones

The old ice bucket was realtively easy to remove; there are 6 screws of differing sizes, so keep in mind which screw goes where. Once the old bucket was removed, it was easy to line everything up and replace the screws. The shelf has one screw to be removed and a rivet in the back, which I snapped with a pair of wire cutters. I don't have a rivet gun, so I used a nut and a low-profile screw in it's place. The bottom of the hole where the rivet is supposed to go is obscured by the shelf, so you may have to work with it to get a good fit. Total time for repairs: 20 minutes

Unfortunately, I had to replace the entire ice maker, as the fill cup wasn't available separately. I also replaced the ice bucket shelves, as they were sagging, making it difficult to insert the ice bucket. The only difficulties were in installing the new shelves with a pop rivet. It was awkward positioning everything in the tight confines of my side by side freezer compartment and squeezing the pop rivet tool while keeping the rivet properly in place. It took me a couple of tries to get it right. The other slight difficulty was with positioning the new power cord so that the ice bucket would slide into place, as the cord was quite stiff and didn't want to bend and keep its shape. I also used an oscillating tool with a bimetal place to cut through the old rivets for the shelves instead of trying to chisel the rivets as in the video.
