Ge WH12X10093 Water Level Pressure Switch (Washer) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Washer Switch.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WH12X10093 replaces AP2045923, 824424, AH269820, EA269820, PS269820, WH12X10130.

Description

This washer water level pressure switch senses tub fill via air pressure and tells the control when to stop filling and advance. Replacing a failed switch restores accurate water levels to prevent overfilling, underfilling, and cycle stalls.

• Monitors air pressure from the tub through a small hose to determine the selected water level
• Signals the timer/control to open/close the inlet valves and move the cycle to agitation/spin
• Symptoms include overfilling or not stopping fill, little or no fill, or cycles that won't advance because "full" isn't detected
• Water level doesn't match the selector setting or changes unpredictably

What's included: 1 pressure switch Installation notes:

• Disconnect power and shut off water supply before servicing

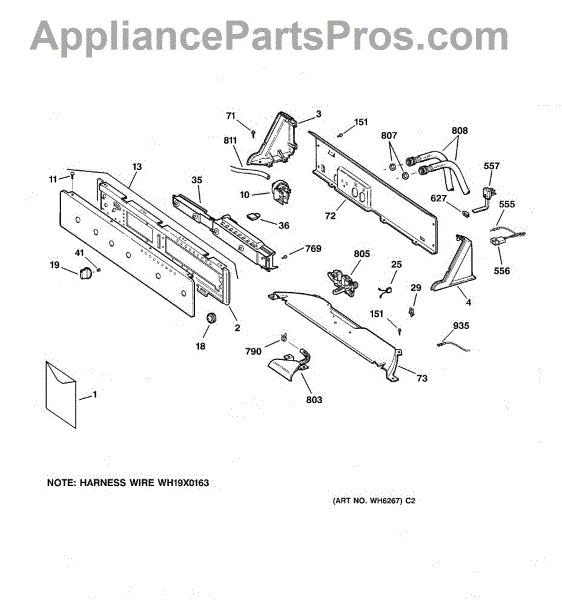

• Access the control console; label or photograph wire locations and transfer them to the new switch one at a time
• Move the existing pressure hose to the new switch; ensure the hose is clear, not kinked or cracked, and fully seated
• Reinstall the knob/control panel and test fill at multiple level settings; access and steps may vary by model
