Lg 3496W0A001H Coffee Maker (Assembly) OEM Part

Product Details

Genuine Lg part. See all items in Microwave Accessories and Microwave Guard, Shield, Barrier.

Cross Reference Information

Part Number 3496W0A001H replaces AP4833279, 1303909, 3920W1A012B, AH3556546, EA3556546, PS3556546.

Description

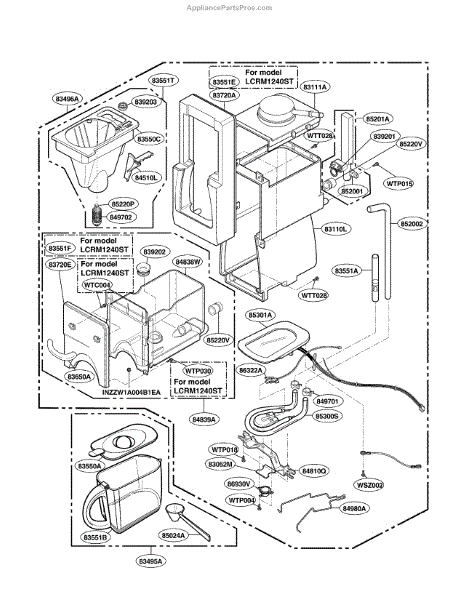

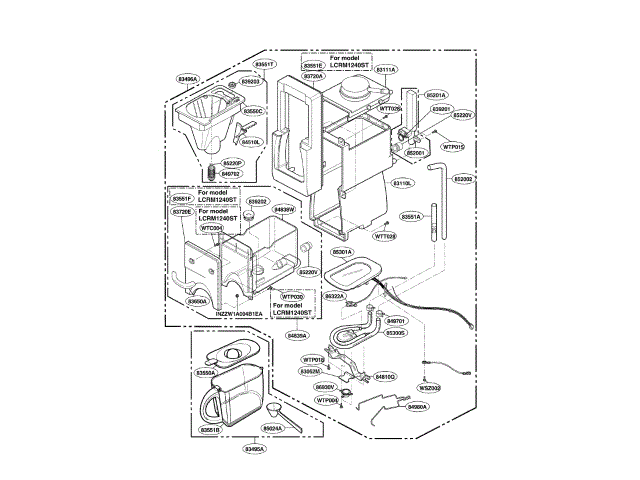

This coffee maker assembly replaces a faulty built-in coffee brewing unit to restore brewing and dispensing in compatible refrigerators. It installs into the fridge's beverage area and returns normal coffee brewing operation when the original fails. What it does

• Replaces the refrigerator's internal coffee brewing unit to allow normal brew cycles.
• Restores proper water flow and heating when the existing coffee maker is not brewing.
• Stops intermittent brewing or complete failure to dispense brewed coffee.
• Helps address leaks or pooling under the brew area when the internal unit is cracked or damaged.

What's included

• One coffee maker assembly

Install notes

• Disconnect power and shut off water supply before starting work.
• Remove the refrigerator beverage panel per service manual to access the unit.
• Handle the assembly and fragile fittings with care to avoid damage to tubes and connectors.
