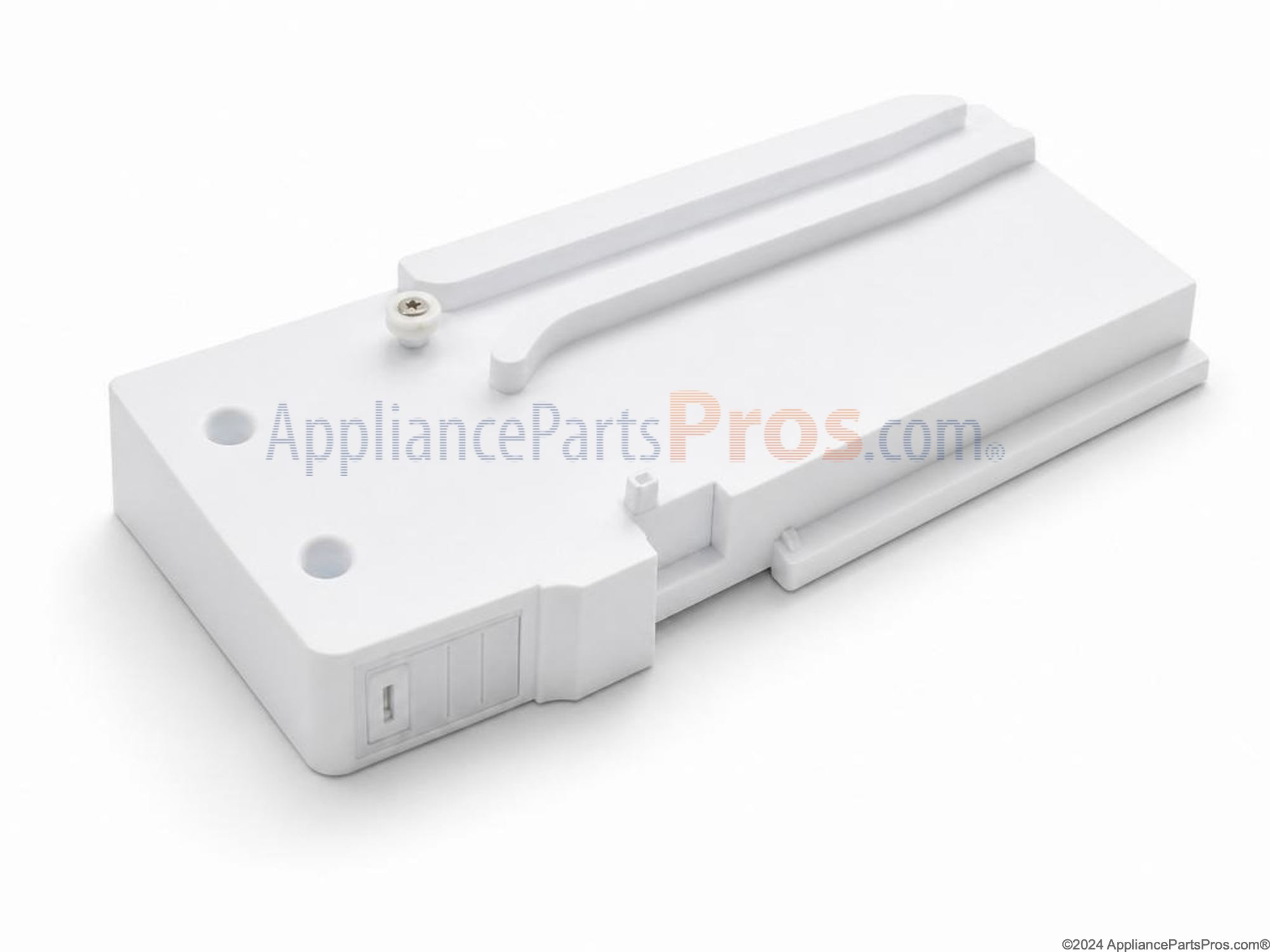

Lg AEC73317720 Rail Guide Assembly (Refrigerator Drawer) OEM Part

Product Details

Genuine Lg part.

Cross Reference Information

Part Number AEC73317720 replaces AP5783578, 2758390, AEC73317706, PS8749148.

Description

This rail guide assembly provides the sliding track that supports a pull-out refrigerator drawer. Replacing a worn or bent rail restores smooth operation and proper alignment so the drawer opens and closes without sticking.

• Supports the drawer and provides a smooth sliding path
• Keeps the drawer level and aligned during travel
• Helps ensure full extension and proper closure
• Replaces rails that are bent, cracked, or have worn internal components
• Common symptoms include sticking, uneven movement, grinding/popping noises, or the drawer not closing flush

What's included: One rail guide assembly Install notes:

• Unplug the refrigerator and remove items from the affected drawer
• Remove the drawer/basket and door front per your model's instructions to access the rail
• Retain and reuse mounting screws and any brackets or end stops; transfer to the new rail if needed
• Install the new rail, ensure both sides are parallel and level, then test drawer travel before reloading
