Best Seller
Manufacturer Part

Mtd 684-04168 Pulley Assembly OEM Part

Manufacturer's Part Number: 684-04168
Genuine Mtd part
Appliance Compatibility Tool
$44.59
IN STOCK - SHIPS TODAY

Secure and trusted checkout with

IN STOCK Less than 100 left
Ships Today. Most orders arrive by Monday, November 23 Guaranteed

Order now and we'll ship it out Today

Most orders delivered in 1-2 business days

Call us 1-877-477-7278
Need Help? Chat with a Pro

Product Details

Genuine Mtd part.

Cross Reference Information

Part Number 684-04168 replaces AP6090526, 1824137, PS9061041.

Description

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

Have questions? Ask our pros!

Contact us in a way that is convenient for you

Call us 1-877-477-7278
Need Help? Chat with a Pro
Or ask a question by filling in the form

Share your thoughts with other customers

Ask a Question

Cross Reference Information

Mtd 684-04168 Pulley Assembly OEM Part

Part Number:
OEM18271587
Manufacturer's Part Number:
684-04168

Fits 254 models

ManufacturerModel NumberDescription

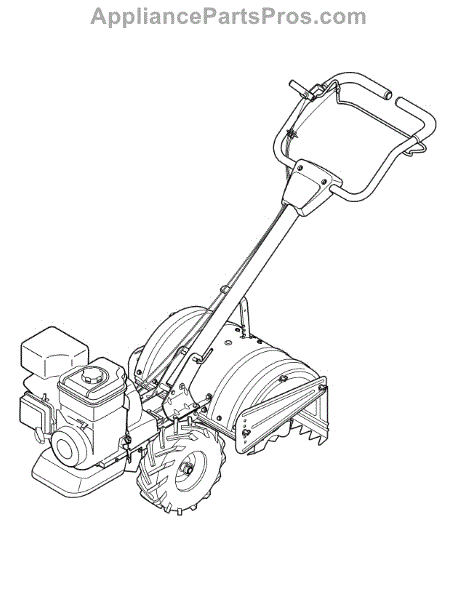

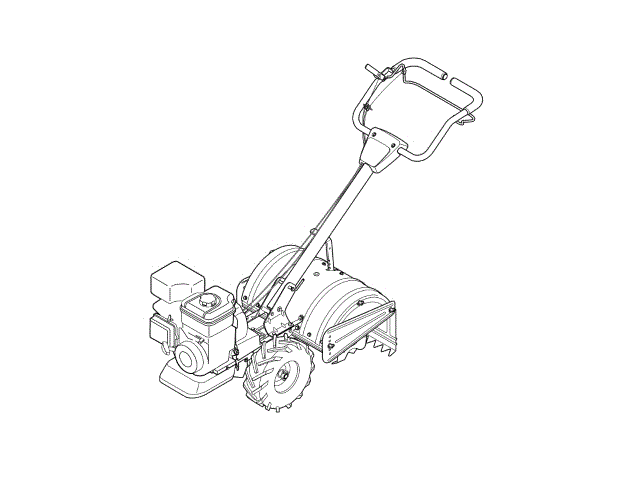

Kmart01721957-7Rear-Tine Tiller
Kmart01739328-1Rear-Tine Tiller
MTD13A-240-762Snow Thrower
MTD Pro2005-2
Yard Machines21AA404B000 (2009)
Yard Machines21AA404B000 (2010)
Yard Machines21AA404B000 (2011)
Huskee / Husky21AA404B031 (2009)
MTD21AA404B031Rear-Tine Tiller
Yard Machines21AA404B052 (2009)
Yard Machines21AA404D200 (2012)
Yard Machines21AA404D229 (2009)
Yard Machines21AA404D229 (2010)
Huskee / Husky21AA404D231 (2009)
Huskee / Husky21AA404D231 (2010)
MTD21AA404D299Rear-Tine Tiller
Craftsman21AA404D299 (2011)
Craftsman21AA404D299 (2010)
Craftsman21AA404D299 (2012)
Yard Machines21AA40M1000 (2009)
Yard Machines21AA40M1000 (2010)
Yard Machines21AA40M1000 (2011)
Yard Machines21AA40M1000 (2012)
Yard Machines21AA40M1000 (2013)
MTD21AA40M1029Rear-Tine Tiller
Yard Machines21AA40M1029 (2010)
Yard Machines21AA40M1029 (2009)
Yard Machines21AA40M1029 (2011)
Huskee / Husky21AA40M1031 (2011)
MTD21AA40M1031Rear-Tine Tiller
Huskee / Husky21AA40M1031 (2010)
MTD21AA40M1052Rear-Tine Tiller
Yard Machines21AA40M1052 (2011)
Yard Machines21AA40M1052 (2009)
Yard Machines21AA40M1052 (2010)
Yard Machines21AA40M1052 (2012)
Yard Machines21AA40M7700 (2012)
Yard Machines21AA40M7752 (2012)
Yard Machines21AA40M7752 (2015)
Yard Machines21AA40M7752 (2014)
Yard Machines21AA40M8700 (2014)
Yard Machines21AA40M8700 (2015)
MTD21AB40M1099Rear-Tine Tiller
Craftsman21AB40M1099 (2010)
Craftsman21AB40M1099 (2011)
Craftsman21AB40M1099 (2012)
MTD21AB40M7799Rear-Tine Tiller
Craftsman21AB40M7799 (2012)
Troy-Bilt21C-64M1066Rear-Tine Tiller
Troy-Bilt21C-65M1066Rear-Tine Tiller
