Frigidaire Range FEF352AWE Element will not heat

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

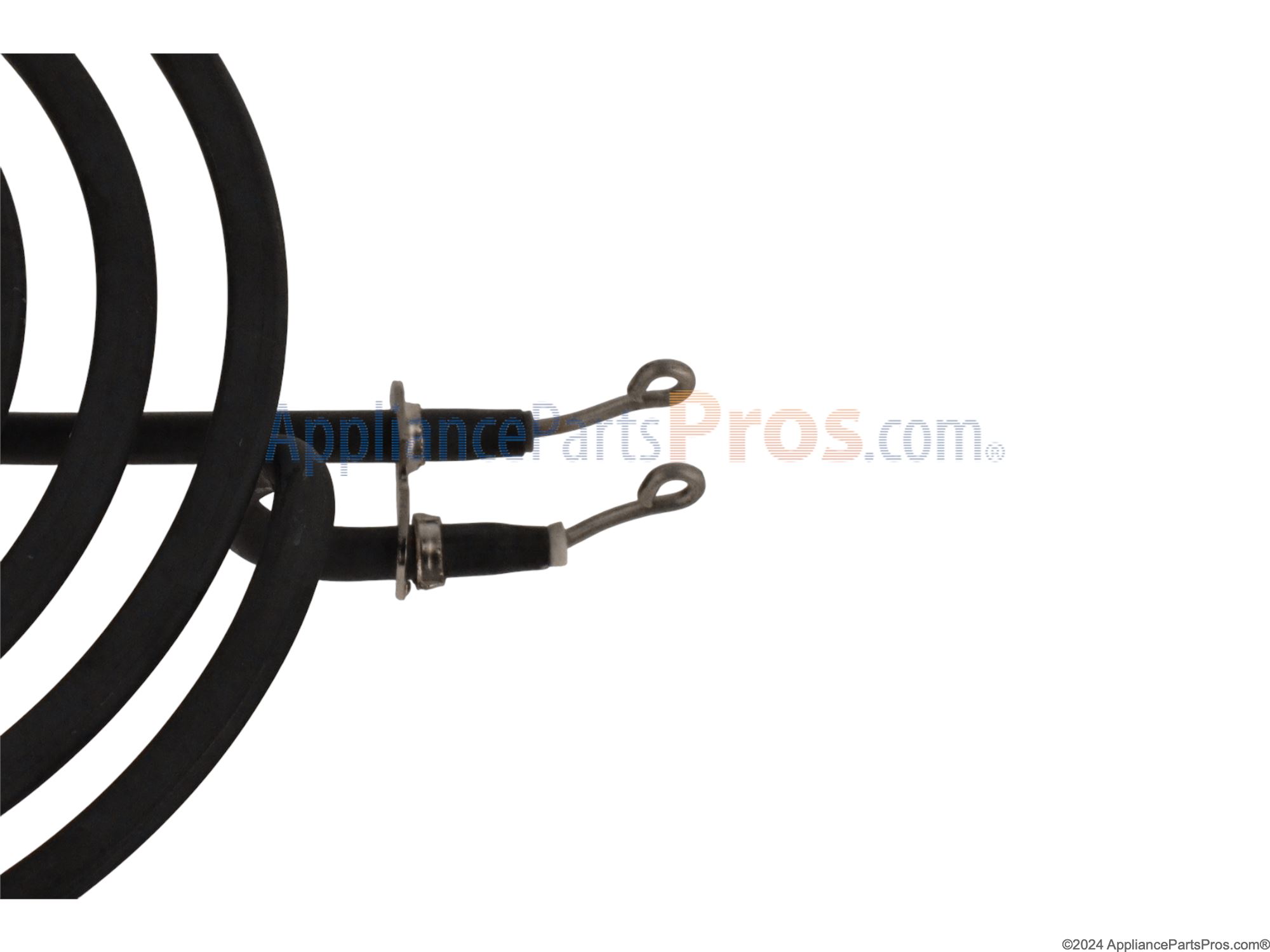

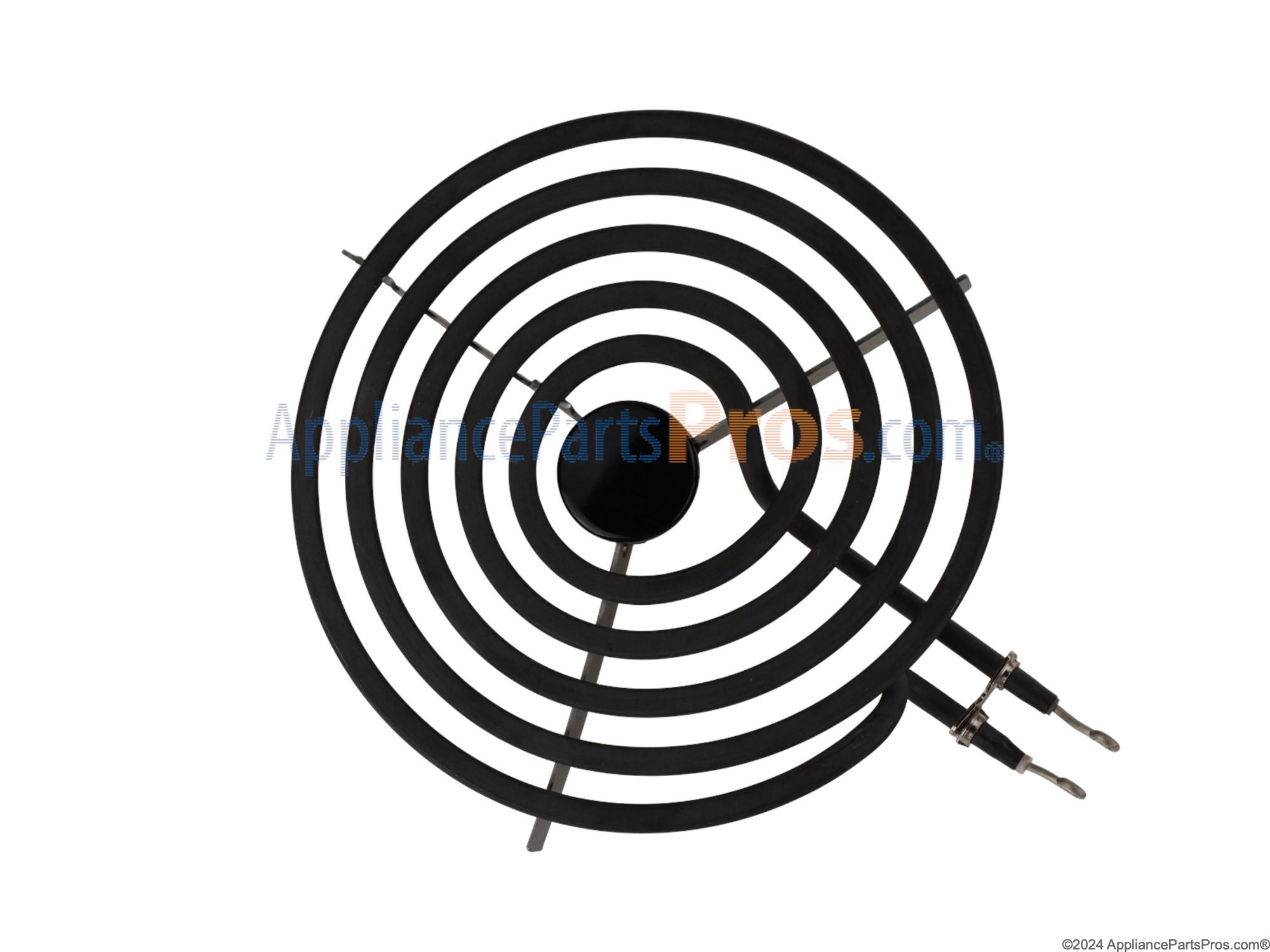

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Large Surface Element Switch is an OEM replacement part for Frigidaire ranges and cooktops. It is a component that controls the power and temperature settings for one of the larger surface heating elements on the appliance.

Symptoms of a faulty Large Surface Element Switch include:

• Difficulty in adjusting or maintaining consistent heat settings
• The surface element not heating up or cycling on and off unexpectedly
• Flickering or erratic behavior of the surface element
• Burning smell or visible signs of overheating

Causes of a bad large surface element switch can include normal wear and tear, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and cooktop models.

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

The Oven Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and regulates the oven's temperature by sending accurate temperature readings to the control board. This ensures that the oven maintains the desired cooking temperature throughout the baking or roasting process.

Causes of a bad oven temperature sensor include exposure to high heat over extended periods, electrical issues, or physical damage to the sensor probe.

Symptoms of a bad oven temperature sensor include:

• Incorrect oven temperatures
• Overheating or underheating during use
• Erratic temperature readings
• The oven not reaching the set temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
