General Electric Dishwasher EDW2020F00BB Leaking

The Water Inlet Valve is an OEM part for GE dishwashers. It is responsible for opening and closing the water supply to the dishwasher. It regulates the water pressure and ensures the proper amount of water is dispensed for each cycle. This part has a 3/8” inlet and includes the mounting bracket.

Causes of a faulty water inlet valve can include wear and tear over time, sediment or debris buildup, electrical component failure, or damage due to high water pressure. These factors can result in issues such as inadequate water flow, leaks, or the dishwasher not filling or draining properly.

Symptoms of a bad water inlet valve may include:

• Insufficient water supply or low water pressure
• Leaks around the valve area
• Inability to start or complete dishwasher cycles

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This OEM Replacement Part is a rubber connector with female threads. It is designed to provide a secure connection between the spray arm and the pump in a dishwasher. The connector measures 2-3/4 inches in diameter and 2-1/8 inches in height. This part is crucial to ensuring the proper functioning and efficiency of your dishwasher's spray arm pump.

Over time, the pump connector can wear out or become damaged due to repeated exposure to water, detergent, and high temperatures. This wear and tear can lead to leaks or a decrease in the dishwasher’s performance.

Symptoms of a bad pump connector include:

• Water leaks under or around the dishwasher
• Reduced water pressure during the cleaning cycle
• The dishwasher not draining properly
• Unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This connector has female threads. For male threads use WD18X206.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

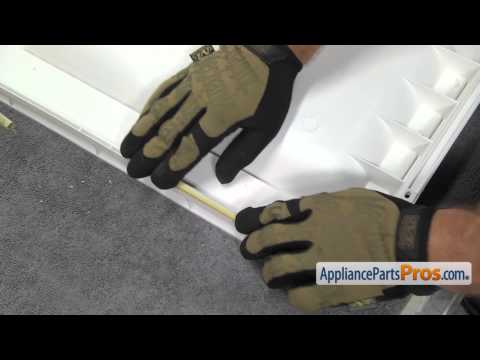

The Door Gasket Insert is an OEM part for GE dishwashers, specially designed to create a watertight seal along the dishwasher door's perimeter. This insert is crucial for preventing water from leaking out of the dishwasher during operation. It fits snugly into the door's groove, ensuring that the door closes securely and no water can escape during the washing and rinsing cycles.

Causes for a Door Gasket Insert to fail include regular wear and tear from daily use, exposure to harsh detergents and high temperatures, and physical damage from loading and unloading dishes.

Symptoms of a bad Door Gasket Insert include:

• Water leaking from around the dishwasher door.
• The dishwasher door feels loose or doesn't close as tightly as before.
• Visible signs of wear, such as cracks, brittleness, or deformation in the gasket.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Dishwasher Door Gasket is an OEM part for GE dishwashers. It forms a seal around the dishwasher door to prevent water from leaking during the wash cycle. The gasket has an approximate length of 89 inches.

Causes of a bad door gasket can include wear and tear over time, improper cleaning or maintenance, or damage from sharp objects or harsh chemicals. These issues can cause the gasket to become brittle, cracked, or misshapen, compromising its sealing capability.

Symptoms of a bad door gasket include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or tears in the gasket
• The dishwasher door not closing properly
• Excess moisture around the dishwasher area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For the short 4" piece of gasket in the bottom middle, also order WD08X10015.

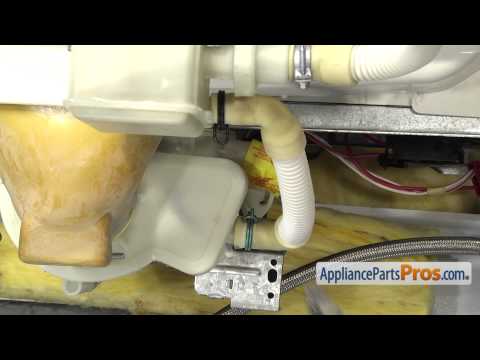

The Complete GE Pump and Motor Assembly is an OEM replacement part for GE dishwashers. This assembly is integral to the dishwasher’s functionality, as it combines both the pump and motor components that work together to circulate water during the wash and rinse cycles. The pump forces water through the spray arms, while the motor drives this process, ensuring thorough cleaning of the dishes.

Over time, the pump and motor assembly can wear out due to constant use and exposure to water and detergents. Additionally, debris or hard water buildup can clog the pump, causing strain on the motor and leading to failures. Electrical issues or damage from power surges can also impair the assembly's performance.

Symptoms of a bad pump and motor assembly include:

• The dishwasher not cleaning dishes properly
• Water not circulating or spraying during cycles
• Unusual noises, such as grinding or humming, coming from the dishwasher
• Water not draining properly from the tub
• The dishwasher not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Used to supply water to the upper spray washarm.

The Piston & Nut Assembly is an OEM part for GE dishwashers. It plays a critical role in the dishwasher’s water management system, helping to control water flow and ensuring proper drainage during the wash cycle.

You should replace this piston & nut assembly if it becomes worn out or damaged. Causes of a bad piston & nut assembly can include mineral buildup from hard water, general wear and tear from regular use, or physical damage due to debris or foreign objects in the dishwasher.

Symptoms of a bad piston & nut assembly include:

• Water not draining properly from the dishwasher
• Puddles of water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Incomplete cleaning of dishes due to improper water flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement part is a lower arm spray, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. The lower arm sprays are an important part of the cleaning process in many dishwashers. This spray arm is situated underneath the top dish rack and projects water downward for more sufficient cleaning.A new lower spray arm might be needed if the user notices the current one is failing to spin or expel water. If dishes are coming out of the dishwasher and are only partially cleaned, then it might be time for a new arm spray. Be sure the water is completely turned off from the appliance before attempting to repair this part. Refer to the user guide for more specific directions on how to replace the lower arm spray. This lower arm spray is sold individually and is sourced directly from the manufacturer. This dispenser is a genuine OEM part.

This 3rd level spray arm assembly restores targeted wash action from the top of the tub, improving coverage to the upper rack. Replace it if jets are clogged, the arm is damaged, or upper-rack cleaning performance has declined.

• Directs wash water from above to reach items on the upper rack and hard-to-hit areas
• Helps ensure even spray coverage when functioning properly
• Common symptoms of failure: upper-rack dishes still dirty, weak spray from the ceiling area, visible cracks or mineral buildup, rattling during cycles
• Restores intended water distribution for consistent cleaning results

• Disconnect power and turn off the water supply before servicing
• Open the door; remove the upper rack if needed for access
• Release the mounting clip/retainer or screw, remove the old assembly, and seat the new one until fully secured
• Ensure proper clearance/orientation; run a short test cycle to confirm spray and operation

The Drain Hose is an OEM part for GE dishwashers. This part carries the wastewater from the dishwasher to the household plumbing, ensuring efficient and effective drainage after each wash cycle.

Causes of a bad drain hose can include regular wear and tear, kinks or bends that restrict water flow, or damage from improper installation.

Symptoms of a bad drain hose include:

• Water not draining properly from the dishwasher
• Leaks or puddles of water around the dishwasher
• Visible cracks or splits in the hose
• Unpleasant odors due to stagnant water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

Inner door panel replaces the interior face of the appliance door, restoring a clean surface and proper support for door components so the door can close and seal as intended. Ideal when the door liner is cracked, dented, or visibly worn. What it does:

• Serves as the interior surface of the door and supports the inner glass or window.
• Provides a mounting surface for latches, seals, and related hardware to help maintain a proper door closure.
• Reduces rattling, visible damage, or interior door gaps that can affect operation.
• Protects internal door components from debris and normal wear.

• Disconnect power and unplug the appliance before starting any repair.
• Use basic hand tools to remove door trim or screws; keep all fasteners for reassembly.
• Handle inner glass and sharp edges carefully—wear gloves and eye protection.
• Refer to the appliance's service manual or OEM instructions for model-specific removal and reinstallation steps.

This genuine replacement fill hose routes incoming water from the inlet valve to the dishwasher tub, restoring proper water delivery for washing cycles. Replaces worn or cracked hoses to help stop leaks and ensure reliable fill performance. What it does:

• Carries water from the inlet valve to the dishwasher tub during fill cycles
• Restores proper water flow when original hose is leaking, split, or clogged
• Helps prevent water damage caused by deteriorated or cracked hose sections
• Works with the dishwasher's fill and wash functions to maintain normal operation

• Disconnect power and shut off the household water supply before starting
• Inspect clamps, grommets, and fittings and replace if damaged
• Route hose without kinks and secure with proper clamps to avoid leaks
