General Electric Dishwasher HDA2000F04BB Leaking

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Door Gasket is an OEM part for GE dishwashers. It forms a seal around the dishwasher door to prevent water from leaking during the wash cycle. The gasket has an approximate length of 89 inches.

Causes of a bad door gasket can include wear and tear over time, improper cleaning or maintenance, or damage from sharp objects or harsh chemicals. These issues can cause the gasket to become brittle, cracked, or misshapen, compromising its sealing capability.

Symptoms of a bad door gasket include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or tears in the gasket
• The dishwasher door not closing properly
• Excess moisture around the dishwasher area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For the short 4" piece of gasket in the bottom middle, also order WD08X10015.

The Water Inlet Valve is an OEM part for GE dishwashers. It is responsible for opening and closing the water supply to the dishwasher. It regulates the water pressure and ensures the proper amount of water is dispensed for each cycle. This part has a 3/8” inlet and includes the mounting bracket.

Causes of a faulty water inlet valve can include wear and tear over time, sediment or debris buildup, electrical component failure, or damage due to high water pressure. These factors can result in issues such as inadequate water flow, leaks, or the dishwasher not filling or draining properly.

Symptoms of a bad water inlet valve may include:

• Insufficient water supply or low water pressure
• Leaks around the valve area
• Inability to start or complete dishwasher cycles

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This OEM Replacement Part is a rubber connector with female threads. It is designed to provide a secure connection between the spray arm and the pump in a dishwasher. The connector measures 2-3/4 inches in diameter and 2-1/8 inches in height. This part is crucial to ensuring the proper functioning and efficiency of your dishwasher's spray arm pump.

Over time, the pump connector can wear out or become damaged due to repeated exposure to water, detergent, and high temperatures. This wear and tear can lead to leaks or a decrease in the dishwasher’s performance.

Symptoms of a bad pump connector include:

• Water leaks under or around the dishwasher
• Reduced water pressure during the cleaning cycle
• The dishwasher not draining properly
• Unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This connector has female threads. For male threads use WD18X206.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

The Inlet Sump is an OEM replacement part for GE dishwashers. Located at the bottom of the dishwasher tub, the carefully contoured inlet sump collects and transports dirty wash water containing food debris to the filtration system. Its inlet ports and drainage routes optimize flow for thorough cleaning cycles.

Symptoms of a problem with the inlet sump include:

• Poor drainage or water not properly collecting at the bottom of the tub
• Clogged or leaking drainage valves that impact water circulation
• Buildup of food or grime that blocks water movement

Causes can be normal wear and accumulation of debris over time. Mineral deposits from hard water may also cause drainage issues.

This part is also compatible with Hotpoint and some Kenmore dishwashers.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

The Drain Hose is an OEM part for GE dishwashers. This part carries the wastewater from the dishwasher to the household plumbing, ensuring efficient and effective drainage after each wash cycle.

Causes of a bad drain hose can include regular wear and tear, kinks or bends that restrict water flow, or damage from improper installation.

Symptoms of a bad drain hose include:

• Water not draining properly from the dishwasher
• Leaks or puddles of water around the dishwasher
• Visible cracks or splits in the hose
• Unpleasant odors due to stagnant water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

This genuine replacement fill hose routes incoming water from the inlet valve to the dishwasher tub, restoring proper water delivery for washing cycles. Replaces worn or cracked hoses to help stop leaks and ensure reliable fill performance. What it does:

• Carries water from the inlet valve to the dishwasher tub during fill cycles
• Restores proper water flow when original hose is leaking, split, or clogged
• Helps prevent water damage caused by deteriorated or cracked hose sections
• Works with the dishwasher's fill and wash functions to maintain normal operation

• Disconnect power and shut off the household water supply before starting
• Inspect clamps, grommets, and fittings and replace if damaged
• Route hose without kinks and secure with proper clamps to avoid leaks

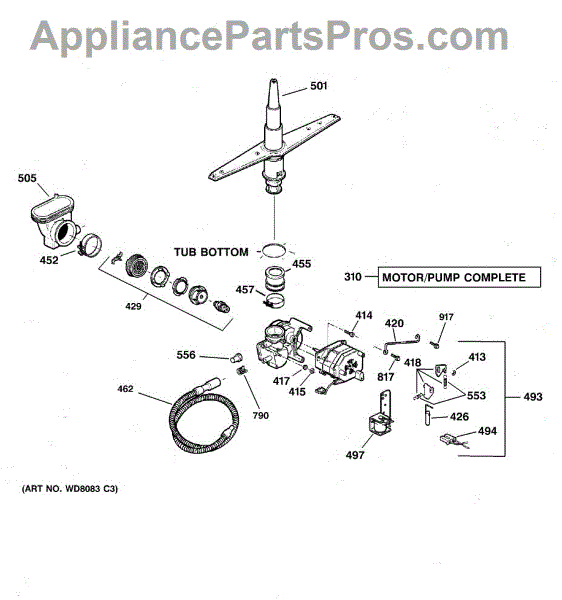

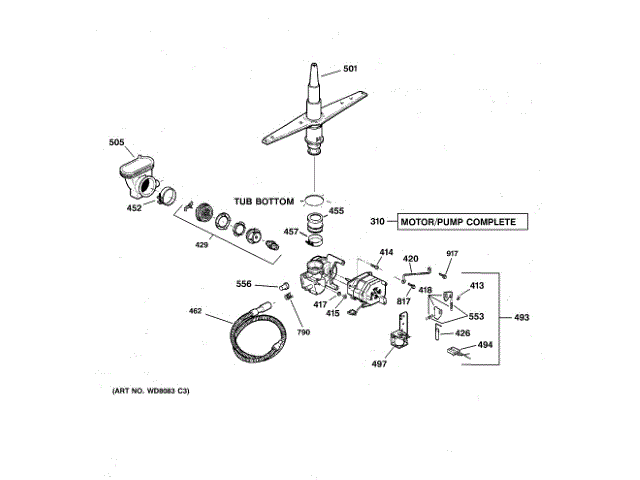

The Spray Arm Assembly is an OEM part for GE dishwashers. This component is located at the bottom of the dishwasher and is responsible for distributing water to clean the dishes during the wash cycle. It rotates to ensure that water reaches all areas within the dishwasher, providing thorough cleaning of the dishes.

Causes of a bad spray arm assembly can include clogging due to food particles or debris, wear and tear from regular use, or damage from improper loading of items. Such issues can obstruct water flow or prevent the spray arm from rotating effectively, leading to suboptimal cleaning performance.

Symptoms of a bad spray arm assembly include:

• Dishes not being cleaned properly
• Inconsistent water spray patterns
• Noisy operation during the wash cycle
• The spray arm not rotating or moving smoothly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Inner door panel replaces the interior face of the appliance door, restoring a clean surface and proper support for door components so the door can close and seal as intended. Ideal when the door liner is cracked, dented, or visibly worn. What it does:

• Serves as the interior surface of the door and supports the inner glass or window.
• Provides a mounting surface for latches, seals, and related hardware to help maintain a proper door closure.
• Reduces rattling, visible damage, or interior door gaps that can affect operation.
• Protects internal door components from debris and normal wear.

• Disconnect power and unplug the appliance before starting any repair.
• Use basic hand tools to remove door trim or screws; keep all fasteners for reassembly.
• Handle inner glass and sharp edges carefully—wear gloves and eye protection.
• Refer to the appliance's service manual or OEM instructions for model-specific removal and reinstallation steps.
