General Electric Dishwasher PSD400V-61BA Leaking

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Inlet Sump is an OEM replacement part for GE dishwashers. Located at the bottom of the dishwasher tub, the carefully contoured inlet sump collects and transports dirty wash water containing food debris to the filtration system. Its inlet ports and drainage routes optimize flow for thorough cleaning cycles.

Symptoms of a problem with the inlet sump include:

• Poor drainage or water not properly collecting at the bottom of the tub
• Clogged or leaking drainage valves that impact water circulation
• Buildup of food or grime that blocks water movement

Causes can be normal wear and accumulation of debris over time. Mineral deposits from hard water may also cause drainage issues.

This part is also compatible with Hotpoint and some Kenmore dishwashers.

The Complete GE Pump and Motor Assembly is an OEM replacement part for GE dishwashers. This assembly is integral to the dishwasher’s functionality, as it combines both the pump and motor components that work together to circulate water during the wash and rinse cycles. The pump forces water through the spray arms, while the motor drives this process, ensuring thorough cleaning of the dishes.

Over time, the pump and motor assembly can wear out due to constant use and exposure to water and detergents. Additionally, debris or hard water buildup can clog the pump, causing strain on the motor and leading to failures. Electrical issues or damage from power surges can also impair the assembly's performance.

Symptoms of a bad pump and motor assembly include:

• The dishwasher not cleaning dishes properly
• Water not circulating or spraying during cycles
• Unusual noises, such as grinding or humming, coming from the dishwasher
• Water not draining properly from the tub
• The dishwasher not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Used to supply water to the upper spray washarm.

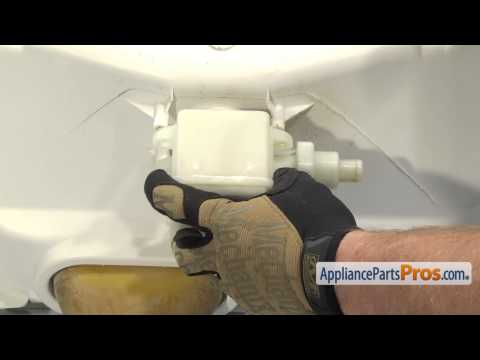

The Dishwasher Water Inlet Valve is an OEM part for GE dishwashers. It controls the flow of water into the dishwasher during each cycle phase. The valve regulates water pressure and volume to provide the right amount for washing, rinsing, and adjusts flow based on cycle settings.

Causes of a bad water inlet valve include mineral buildup from water hardness inhibiting movement or damage allowing leaks.

Symptoms of a bad inlet valve are:

• Incomplete or inadequate washing
• Long cycle times or shutting off prematurely
• Water leaking or spraying inside machine

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

The Piston & Nut Assembly is an OEM part for GE dishwashers. It plays a critical role in the dishwasher’s water management system, helping to control water flow and ensuring proper drainage during the wash cycle.

You should replace this piston & nut assembly if it becomes worn out or damaged. Causes of a bad piston & nut assembly can include mineral buildup from hard water, general wear and tear from regular use, or physical damage due to debris or foreign objects in the dishwasher.

Symptoms of a bad piston & nut assembly include:

• Water not draining properly from the dishwasher
• Puddles of water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Incomplete cleaning of dishes due to improper water flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

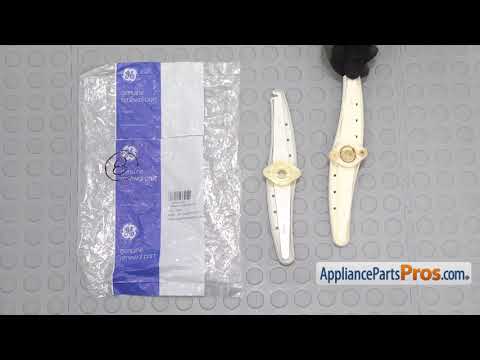

This 3rd level spray arm assembly restores targeted wash action from the top of the tub, improving coverage to the upper rack. Replace it if jets are clogged, the arm is damaged, or upper-rack cleaning performance has declined.

• Directs wash water from above to reach items on the upper rack and hard-to-hit areas
• Helps ensure even spray coverage when functioning properly
• Common symptoms of failure: upper-rack dishes still dirty, weak spray from the ceiling area, visible cracks or mineral buildup, rattling during cycles
• Restores intended water distribution for consistent cleaning results

• Disconnect power and turn off the water supply before servicing
• Open the door; remove the upper rack if needed for access
• Release the mounting clip/retainer or screw, remove the old assembly, and seat the new one until fully secured
• Ensure proper clearance/orientation; run a short test cycle to confirm spray and operation

The Drain Hose is an OEM part for GE dishwashers. This part carries the wastewater from the dishwasher to the household plumbing, ensuring efficient and effective drainage after each wash cycle.

Causes of a bad drain hose can include regular wear and tear, kinks or bends that restrict water flow, or damage from improper installation.

Symptoms of a bad drain hose include:

• Water not draining properly from the dishwasher
• Leaks or puddles of water around the dishwasher
• Visible cracks or splits in the hose
• Unpleasant odors due to stagnant water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

This genuine replacement fill hose routes incoming water from the inlet valve to the dishwasher tub, restoring proper water delivery for washing cycles. Replaces worn or cracked hoses to help stop leaks and ensure reliable fill performance. What it does:

• Carries water from the inlet valve to the dishwasher tub during fill cycles
• Restores proper water flow when original hose is leaking, split, or clogged
• Helps prevent water damage caused by deteriorated or cracked hose sections
• Works with the dishwasher's fill and wash functions to maintain normal operation

• Disconnect power and shut off the household water supply before starting
• Inspect clamps, grommets, and fittings and replace if damaged
• Route hose without kinks and secure with proper clamps to avoid leaks
