Roper Range 2102W2E Element will not heat

This 8-inch surface burner element is the plug-in coil used on many electric ranges. Replacing a worn or failed element restores reliable heating and more even cooking performance on your stovetop.

• Provides heat to pots and pans when energized by the surface control
• Common fix for an element that won't heat or only heats partially
• Addresses visible coil damage such as breaks, blisters, or burned spots
• Corrects intermittent heating caused by an open or failing element

• Disconnect power to the range/unplug before servicing and ensure the element is cool
• Lift the old coil slightly, then pull straight out from the receptacle
• Inspect the receptacle/terminal block and drip bowl; replace if overheated or damaged
• Fully insert the new element terminals into the receptacle, seat the coil level, and test

This 6-inch surface element restores steady, even heat to the small burner on your electric range. Replace a burned-out coil to get back to reliable boiling, simmering, and everyday cooking performance.

• Converts electrical power into heat at the 6-inch burner position
• Helps when the small surface burner won't heat or heats unevenly
• Common signs include visible hot spots, blistering, or burned/loose terminals
• Seats in the drip bowl and connects to the proper surface element receptacle

• Disconnect power at the breaker or unplug the range; allow the element to cool before servicing
• Lift the old element from the drip bowl and pull straight out from the receptacle; avoid twisting or bending the coil
• Inspect the element receptacle for heat damage; replace the receptacle if contacts are burned or loose
• Fully seat the new element and ensure it sits level in the drip bowl before use

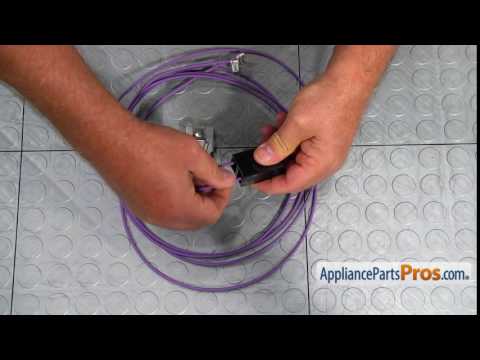

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.
