Jonathan R Mequon , WI March 27, 2016 Appliance: Samsung Refrigerator RF266AASH/XAA-0000 French door center flap spring ripped out flap no longer opened automatically when door closed In order it SHOULD be done: Pried off two white caps covering the screws that attach the flap to the left door, then removed screws. Lifted flap up to remove from door and disconnected cable. Used a thin blade to pry out the inner cover of the flap, then carefully pried out the insulation piece inside. Loosened the screw holding the center cap from the inside and removed cap. Worked the cable out of the hinge piece so it could be removed and cable pulled through case. Pried upper and lower caps off to remove hinge pieces. Swapped everything over to the new flap case in reverse order, re-installed flap on door, and installed spring with its pin sheath. Done! Read More... 18 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Screwdrivers
Lex D Wyndmoor , PA September 14, 2018 Broken hinge Having the step by step video made this fix actually enjoyable! Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers

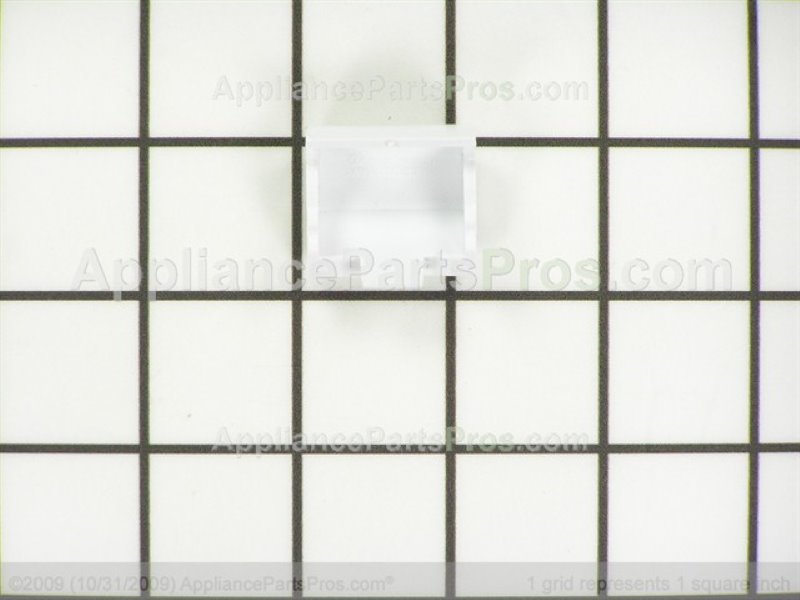

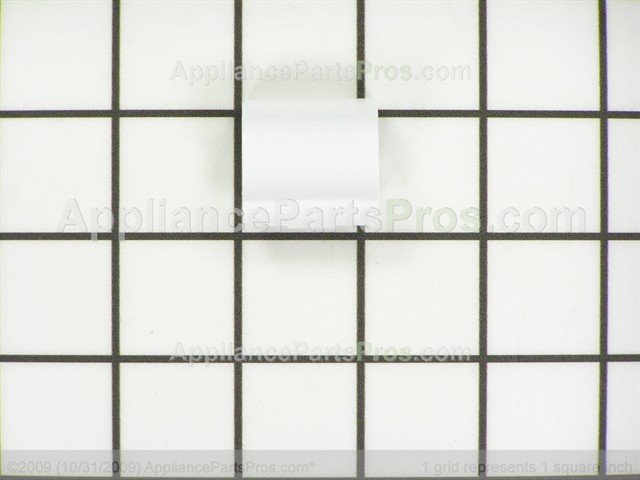

Marcus P Charlotte , NC January 06, 2018 Appliance: Model SAMSUNG SIDE BY SIDE One of the plastic hinges broke On Christmas day my son couldn't get one of our 2 refrigerator doors to close properly. Upon inspection, I had noticed that one of the 3 plastic hinges, which mounts the small flap on one of the doors, had broken.So on Christmas, I was able to search the Appliance Parts Pros website and found exactly what I needed.The parts breakdown of the door, as well as the great pictures of each part, helped a novice like me make the right decision. I would definitely use them again.All I needed was a flat screwdriver and a Phillips head. I removed cap C which frees the hinge to be slid in an upward position which releases it from the door. I reversed the process in order to re-install. Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Steven P Elm Ira Hgts. , NY September 25, 2016 Appliance: Samsung Refrigerator RF217ACRS/XAA Broken hinge Replaced broken hinge and changed spring Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Susan L Richfield , OH March 12, 2016 Flap on french door broken Bought a replacement Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
