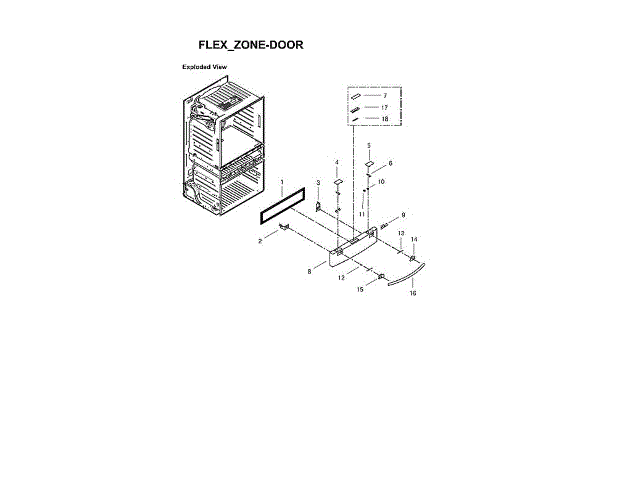

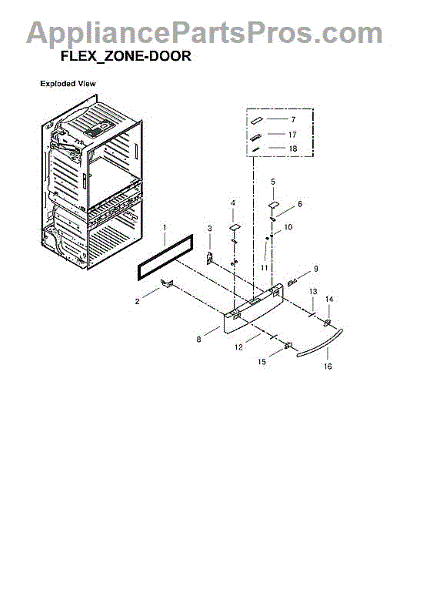

Jesse R Houston , TX January 22, 2017 Appliance: Model AP4576914 (DA67-02513A) The handle to the middle compartment is used more often since that's where we store leftovers and cold cuts so the handle was giving out and finally broke off on one end THE PLASTIC BROKE, WE FOUND THE DIAGRAM WHICH TELLS YOU THE PART NIMBER. REALIZING THEY WILL BREAK OFTEN, WE ORDERED 2 OF EACH SIDE WHICH ARE JUST A FEW DOLLARS. WE ALSO ORDERED AN EXTRA CAP CAUSE ONE BROKE WHEN WE SNAPPED IT OFF, WE USED A VERY THIN KNIFE TO START LIFTING THE CAPS. AS YOU REMOVE IT ALL, VIDEO IT AND REMOVE THE OTHER SIDE AS WELL SO YOU CAN REMEMBER HOW TO REPLACE IT WHEN THE PARTS ARRIVE. MAKE SURE YOUR PLATE ON R SIDE IS CENTERED BEFORE TIGHTENING BUT THEY ARE PLASTIC SO CANNOT TIGHTEN TOO MUCH ANDTHE LEFT SIDE ALSO OR THEY WILL NOT SIT RIGHT WHEN YOU LIFT THE HANDLES THEY WILL RUB ON ONE SIDE ALSO PUT BOTH PLATES IN AT SAME TIME NOT ONE SIDE FIRST AND THEN THE OTHER, SO DO NOT SNAP CAPS ON WITHOUT TESTING IT BY OPENING AND CLOSING THE DOOR SO THE PLATES DON'T RUB IN CASE YOU HAVE TO REMOVE THEM AND UNSCREW THE PLATES TO CENTER THEM SLIGHTLY. CAN'T EMPHASIZE THE IMPORTANCE OF CENTERING THE PLATES. Read More... 5 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
John Y Houston , TX October 01, 2022 Appliance: Samsung Refrigerator RF4287HARS/XAA-0000 Broken cap handle on middle flex drawer. REMOVED THE HANDLE AND REPLACED THE BROKEN HANDLE CAP AND THE CAP SHAFT. Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers
Karla S Lewiston , NY May 06, 2018 Handle broke off the freezer drawer The parts we ordered were an exact match. Easy to replace and saved a 75.00 dollar service call. Thank you. Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Matt M Pottstown , PA November 13, 2018 Broken cap handles Replaced both parts Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Roman M Pharr , TX May 28, 2017 Cap handle broke Ordered both sides to have a new pair in service although just one seemed to be broken from where the screws tie the handle. After closer inspection, the other side had broken internally. Disassembled the existing ones in 5 minutes. Got the ports 4 days later and installed it right back. 5 minute process also. Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
