Prg366/1 Parts

This lava rock basket holds and secures lava rocks used with compatible gas burner assemblies to support even heat distribution and protect the burner area. It replaces a worn, broken, or missing basket for safe operation. What it does:

• Holds lava rocks in place so they heat evenly for consistent burner performance
• Protects the burner tray from direct contact with lava rock and debris
• Helps prevent lava rocks from shifting or falling into the burner area
• Addresses symptoms such as loose or missing rock support, shifting lava rock, or unstable burner arrangement

• One lava rock basket assembly

• Turn off the gas supply and power to the appliance before servicing
• Use basic hand tools; verify correct fit and orientation before finalizing installation
• Dispose of damaged lava rocks and worn parts responsibly

This flexible door seal/gasket creates a watertight barrier around the appliance door to help prevent leaks and keep internal temperatures stable. Replacing a worn seal restores proper sealing for reliable operation. What it does:

• Seals the door edge to prevent water from leaking during cycles
• Helps maintain internal temperature and cleaning performance
• Reduces moisture buildup and prevents odors from trapped debris
• Restores proper door alignment when the old seal has become misshapen or torn

• Disconnect power and water supply before starting any repair
• Remove the old seal by gently pulling from the door channel and clean the channel of debris
• Press the new gasket into the channel evenly, working around the entire door; ensure the seal is fully seated and not twisted
• If clips or retainers are present, verify they are correctly engaged; do not use sharp tools that can nick the gasket

This grill grate provides a stable, even cooking surface for compatible Bosch grills, restoring proper support and heat contact for pans and food. It replaces worn, bent, or missing grates to improve cooking consistency. What it does:

• Serves as the primary cooking surface, supporting cookware and food above the burner or heat source.
• Restores proper clearance and airflow for even heating when original grate is warped or damaged.
• Keeps food elevated and stable to prevent tipping or contact with burners.
• Foot provides extra stability and corrects alignment within the grill frame.

• One grill grate with attached foot

• Ensure the appliance is completely cool and gas/electric supply is turned off before handling.
• Typically installs as a drop-in replacement; align grate and foot with existing supports and seating points.
• Inspect surrounding seals and supports; replace any damaged mounting hardware for secure fit.
• Clean with non-abrasive cleaners; avoid harsh scrubbing that could remove coatings or finish.

This grease catch tray collects drips and overflow from the grill/broiler area to help keep the oven or grill cavity cleaner and reduce grease buildup. It fits into the grill assembly to channel grease away from heating elements. What it does:

• Catches grease and drippings from the grill or broiler surface to protect the cavity floor
• Helps reduce smoke and flare-ups caused by grease contacting hot surfaces
• Keeps grease contained for easier cleanup and routine maintenance
• Restores proper grease control when the original tray is damaged, warped, or missing

• One grease catch tray

• Allow the appliance to cool and disconnect power before servicing
• Remove oven racks or grill components as needed to access the tray slot
• Slide the tray into place until it seats securely; no special tools typically required
• Dispose of heavy grease safely and clean the tray regularly per owner manual guidance

This replacement griddle can is the stamped inner pan that supports the griddle surface and collects/drains cooking grease. It restores a secure, properly shaped cooking surface so the griddle heats and drains as designed. What it does

• Replaces a dented, warped or corroded griddle pan that can interfere with even cooking
• Provides the molded surface and drainage channels that direct grease away from heating elements
• Helps reduce grease pooling that can cause excess smoke or flare-ups
• Restores proper fit and alignment of the griddle assembly in the cooktop cavity

• One griddle can (inner griddle pan)

• Disconnect power to the appliance and allow all surfaces to fully cool before beginning work
• Use gloves to avoid sharp edges on the metal pan and protect hands from grease
• Remove the griddle surface and any fasteners per the appliance service instructions; reinstall using OEM hardware
• Follow the appliance manufacturer's service manual for torque, alignment and testing procedures

This orifice is the small, calibrated gas jet used in the oven burner to control natural gas flow for proper combustion and consistent heat. It replaces a worn or clogged orifice to help restore reliable oven ignition and baking performance. What it does:

• Directs and meters natural gas to the oven burner for correct flame size and stability
• Helps resolve symptoms like weak or uneven burners, weak ignition, or yellow/sooting flames when caused by a restricted orifice
• Used on the oven top/burner assembly where a #38 sized jet is specified
• Fits into the burner orifice holder and works with the existing regulator and valve

• Install only after shutting off the gas supply and following all safety procedures; check for leaks with a soapy water solution or approved leak detector
• Use correct tools and avoid damaging the orifice tip; thread carefully to prevent cross-threading
• Do not modify the orifice; replace with the exact specified size to maintain safe operation

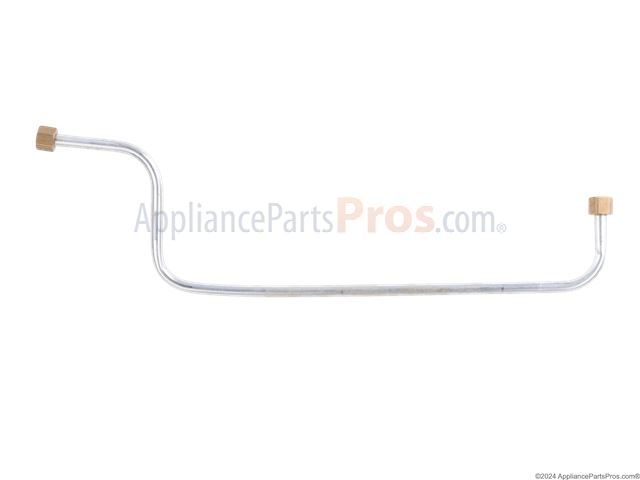

This Tube is an OEM part for Bosch Gas Ranges. This component ensures the proper flow of gas for efficient cooking operations. Constructed with high-quality materials, it guarantees reliability and safety during use.

A common cause of a faulty Tube Gas Range is wear and tear over time, leading to potential leaks or blockages in the gas flow. Additionally, exposure to high temperatures or physical damage can also compromise its functionality.

Symptoms of a malfunctioning Tube may include:

• Uneven or inadequate flame
• Gas odor during appliance use
• Inconsistent heating temperatures

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This channel burner mounting secures a cooktop burner assembly in place so the burner stays aligned for proper operation. It replaces a damaged or bent mounting channel to restore stable burner positioning and safe function. What it does

• Holds the burner assembly in the correct position under the cooktop surface
• Prevents burner movement that can cause misalignment or uneven heating
• Helps maintain proper spacing for reliable ignition and flame stability
• Replaces bent, cracked, or corroded mounting channels that no longer secure the burner

• One channel burner mounting bracket (single mounting channel)

• Turn off gas and electrical power to the appliance before beginning work
• Remove cooktop components as required to access the burner mounting
• Handle edges carefully; part and surrounding sheet metal can be sharp
• Verify burner alignment and safe operation after installation
