Shpm78z52n/01 Parts

This holder secures internal components to keep assemblies aligned and stable, reducing vibration and wear. It's a simple replacement that restores proper fit where a broken or missing clip causes loose panels or noisy operation. What it does

• Secures and aligns panels or wiring harnesses inside the appliance
• Prevents rattling, vibration, and misalignment caused by damaged or missing clips
• Helps maintain proper component spacing to avoid wear or interference
• Restores secure attachment after breakage or plastic fatigue

• Disconnect power and water before starting any repair
• Remove access panels or trim to reach the damaged clip—keep fasteners organized
• Press or snap the holder into place; replace any broken tabs before reassembling
• If plastic anchors are damaged, replace them with matching OEM clips

This replacement worm gear is a small plastic drive gear that transmits rotational motion between the motor and driven components, restoring normal gear-driven movement and reducing slipping or grinding. What it does:

• Transfers torque from the motor to the mating gear or gearbox for proper mechanical operation
• Replaces worn, stripped, or damaged worm teeth that cause slipping or loss of drive
• Stops grinding, clicking, or intermittent movement when the gear is the fault
• Helps restore smooth, consistent operation of the driven mechanism when installed correctly

• One worm gear

• Disconnect power to the appliance before beginning any repair
• Inspect mating gears and shafts for wear; replace worn parts to prevent repeat failure
• Use OEM-approved lubricant only where specified; do not force or overtighten mating components

The Dishwasher Installation Set is an OEM part for Bosch dishwashers. This set contains all necessary hardware for professional installation or replacement, including leveling legs, mounting brackets and anti-tip brackets. Manufactured from corrosion-resistant steel, these parts securely fasten the dishwasher into place.

Causes relate to normal wear over time from use. Improper original installation may also compromise individual parts. Failing to properly level, brace or anchor the dishwasher leads to unnecessary stresses.

Symptoms of worn or missing installation hardware include:

• Looseness, shaking or movement during operation
• Doors failing to properly self-close or seal fully
• Leaks developing around dishwasher connections
• Installation not compliant with current regulations

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

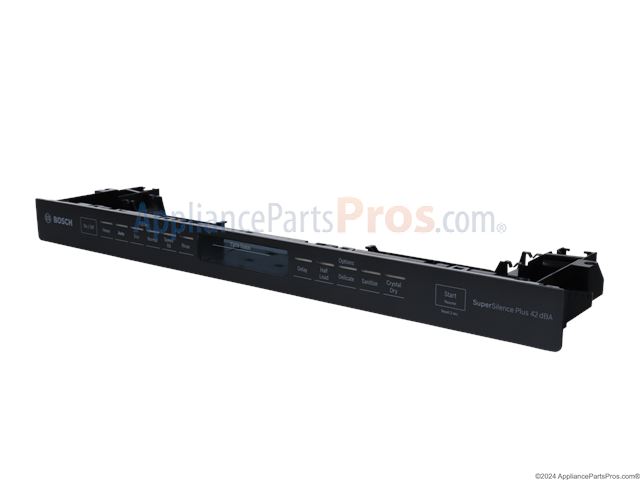

The Panel Facia is an OEM part for Bosch dishwashers. It is the front control panel of your dishwasher, providing a clean and polished look.

A bad panel facia can occur due to wear and tear over time, accidental damage, or exposure to moisture and cleaning agents. Signs of a faulty facia include cracks, discoloration, or a loose fit that compromises the aesthetic appeal of your dishwasher.

Symptoms of a bad panel facia include:

• Cracks or visible damage on the surface
• Discoloration or fading
• A loose or missing panel

Replace your damaged or worn-out panel facia with this genuine OEM Bosch part to restore the appearance of your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


This cover is a replacement protective housing piece that shields internal components and wiring from debris and moisture, helping maintain safe operation and component longevity. It restores the appliance's original enclosure where the panel is damaged or missing. What it does:

• Protects electrical parts and connectors from dust, water, and physical contact
• Helps prevent short circuits and arcing caused by exposed wiring
• Reduces vibration-related noise by securing adjacent components
• Restores proper fit and finish to the appliance exterior

• One replacement cover as shown

• Disconnect power (unplug or switch off breaker) before beginning any work
• Use basic hand tools; avoid overtightening fasteners or forcing clips
• Inspect surrounding seals and wiring while panel is removed; replace damaged parts as needed

This replacement hose clamp secures a hose to its fitting to maintain a tight, leak-resistant seal. Replacing a worn clamp helps stop drips and keeps fill, drain, or circulation lines firmly in place for reliable operation.

• Applies clamping force to hold a hose on a barb or stub connection
• Helps prevent leaks at hose joints
• Common symptoms: water leaking at a hose connection, hose slipping off, poor fill or drain performance
• Replace when the original is loose, corroded, distorted, or lost tension; also recommended when installing a new hose

• Disconnect power and shut off water supply before servicing
• Expect some residual water; protect the work area
• Note the clamp's position/orientation; use appropriate hand tools for the clamp style
• Ensure the hose is fully seated and clamp is secure; run a test cycle and check for leaks

This cap is a small closure used to cover and protect an opening or fastener on the appliance. Replacing a damaged or missing cap restores a secure seal and a clean, factory-finished appearance.

• Closes an access port or cavity to keep out moisture and debris
• Helps maintain proper fit and appearance where the cap seats
• Replace if cracked, warped, missing, or won't stay secured
• Prevents rattles and exposed openings caused by a loose or broken cap

• Disconnect power and, if applicable, shut off water before beginning any repair
• Remove the old cap and clean the seating area
• Align tabs or threads and press or twist to secure—do not overtighten
• The cap sits flush and is firmly retained

This suspension damper stabilizes the tub/drum by absorbing movement and vibration during operation. Replacing a worn damper helps reduce shaking and noise, improving spin performance and overall machine stability. What it does:

• Absorbs and controls tub/drum movement to reduce vibration and noise
• Helps prevent banging, "walking," or out-of-balance shutdowns during spin
• Can address excessive shaking, rattling, and longer spin times
• Restores smoother, more controlled operation when the original damper is worn

• One suspension damper

• Disconnect power and turn off water supply before servicing
• Access location varies by model; support the tub/drum to relieve load before removal
• Note orientation and reuse existing mounting hardware if new fasteners aren't provided
• After installation, re-level the appliance and run a test cycle to verify stability

This overflow component directs excess water safely back into the dishwasher's water path to help prevent overfilling and leaks. Replace if damaged to restore correct water management and leak protection.

• Guides overflow water away from the tub into the proper return/drain path
• Helps maintain correct water level during fill
• Can address water collecting in the base pan or leaking from the lower front area
• Useful when the leak protection/float has been tripped or cycles stop due to a detected leak

• Disconnect power and turn off the water supply before servicing
• Access the overflow/water-channel area per your model's service procedure
• Note orientation and transfer any clips or seals from the old part if present
• Reassemble, restore power/water, and run a short cycle to check for leaks

This holder/retainer secures its mating part in the correct position inside the appliance, preventing unwanted movement and ensuring consistent operation. Replace a cracked or missing holder to restore a solid, factory fit and reliable performance.

• Supports and locks the attached component or rack/accessory in place
• Helps prevent vibration, rattling, or misalignment during use
• Typical signs of failure: broken tabs, visible cracks, looseness, or the part no longer staying secured
• Restores proper positioning of the related component for consistent function

• Disconnect power at the breaker; shut off water supply if applicable
• Note the holder's orientation; take a photo before removal
• Reuse existing screws/fasteners if none are supplied with the part
• Seat fully until it clicks/locks; do not overtighten into plastic

This insulating part is a molded insulation panel that reduces noise and limits heat transfer from the appliance during operation. It helps maintain normal operating temperatures and dampens vibration for quieter performance. What it does:

• Provides thermal barrier between the appliance cavity and exterior surfaces to reduce heat on surrounding cabinetry
• Dampens vibration and reduces operational noise
• Helps stabilize internal temperatures to support normal cycle performance

• Disconnect power (and water, if applicable) before servicing to avoid shock or injury
• Handle insulation carefully; avoid tearing or compressing beyond fitment
• Installation may require removal of outer panels or trim—refer to service manual for access steps
• If adhesive or clips are present, reuse OEM fasteners or replace with equivalent hardware

This insulating part provides protective thermal and electrical insulation for internal appliance components, helping keep wiring and nearby parts separated and shielded. Replacing a damaged insulator restores safe spacing and reduces heat-related wear. What it does:

• Provides thermal and electrical isolation between components to help prevent heat transfer and accidental contact
• Protects wiring and nearby parts from chafing and abrasion
• Helps reduce risk of shorts or intermittent electrical faults when insulation is intact
• Common symptoms of a bad or missing insulator: visible damage, melting or scorch marks, exposed wiring, or intermittent operation

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove any necessary panels to access the damaged insulator
• Handle carefully to avoid tearing or compressing the material; replace with the identical part number

This sealing gasket replaces a worn or damaged seal to restore a watertight connection and help prevent leaks. It's a direct-fit replacement designed to maintain proper sealing where the original gasket has failed. What it does:

• Creates a watertight seal at the intended joint to prevent water or air leaks
• Restores proper component fit and alignment when the old seal is cracked, compressed, or brittle
• Helps reduce symptoms like visible leaking, moisture buildup, or poor performance related to a failed seal
• Works with the original mating surfaces—replace damaged seals to avoid secondary damage

• One sealing gasket

• Inspect mating surfaces and clean thoroughly before installing the new seal
• Replace only with the matching part number to ensure correct fit; do not stretch or force the gasket into place
• Wear gloves and follow all appliance power/water isolation procedures before starting repairs

This cable harness routes power and signals between appliance control and components to restore reliable electrical connections. It replaces a damaged or worn harness to help eliminate intermittent operation and connectivity issues. What it does:

• Replaces the main wiring harness that links controls, sensors, and motors for proper electrical communication
• Restores reliable power and signal paths to correct intermittent power, non-responsive controls, or components that won't run
• Ensures secure connector mating to prevent arcing and poor contact
• Matches OEM connector types and wire lengths to fit in the original routing

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Compare the new harness to the old one for connector types and routing before installation
• Handle connectors by the housings; do not pull on wires. Ensure all plugs snap fully into place
