Wrt311fzdt Parts

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

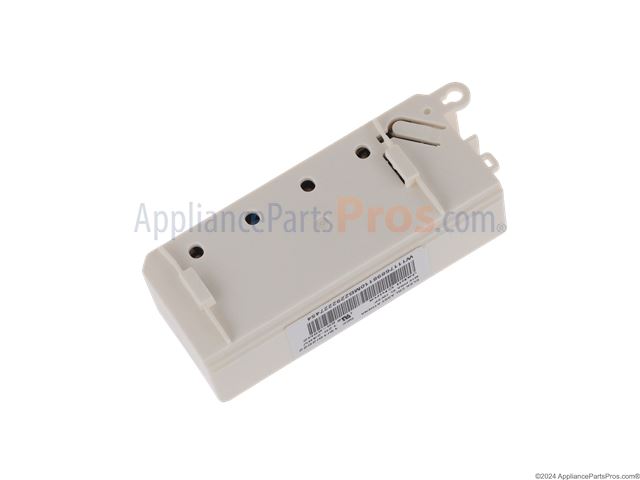

The Control Board is an OEM part for Whirlpool refrigerator models. As the central processing component, this board regulates all functions and monitors appliance performance.

Causes of a bad control board can include liquid intrusion corroding circuits over time as well as defects from normal component wear. Refrigerator boards face rigorous switching and electrical loads daily.

Symptoms of a bad control board include:

• Lights not illuminating or flashing error codes
• Inability to maintain proper temperatures
• Failure to run refrigeration components like fans, compressors and defrost heaters
• Appliance entering diagnostic/alarm modes and not operating normally

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door handle thimble is a small spacer/bushing used on select refrigerator and freezer doors. It sets the correct stand-off for the handle hardware so the handle mounts securely, aligns properly, and feels solid in use.

• Spaces and aligns the door handle to the correct distance from the door
• Supports the handle mounting stud/screw for a secure fit
• Helps reduce handle wobble, gaps, or scuffing against the door
• Replace if the handle won't tighten evenly or the original thimble is cracked, worn, or missing

• Disconnect power before servicing the appliance
• Support the handle to protect the door finish during removal
• Loosen the handle's set screw(s) or mounting bolt, remove the old thimble, and clean the area
• Seat the new thimble fully, reinstall hardware, and tighten evenly—do not overtighten

Color: White

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

Evaporator drip pan that collects defrost water and directs it to the drain, helping prevent leaks and puddles under the appliance. Restores proper drainage for reliable operation. What it does:

• Catches and channels defrost/condensate water away from the evaporator to prevent leaks beneath the unit.
• Helps stop water pooling or dripping from the bottom of the appliance.
• Reduces the risk of moisture-related odors or mildew by keeping drainage contained.
• Works with the refrigerator's drain system to promote normal defrost water flow.

• Disconnect power to the appliance before beginning any service.
• Access may require removing the toe grille or pulling the appliance out; follow the OEM service instructions for your model.
• Inspect and clear the drain tube and drain outlet while replacing the pan to ensure proper flow.
• Handle the pan carefully during installation and ensure it is seated so water flows into the drain as intended.

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This replacement part is a control board that has been manufactured by Whirlpool and is compatible with refrigerators. The control board is important for proper appliance functionality, as it regulates and manages refrigerator functions, including the defrost times and the cooling. If the control board is broken, the refrigerator may experience a number of issues, including an inability to maintain cold temperatures or properly regulate defrost cycles. Ensure that perishable foods are stored safely and then unplug the appliance before attempting any repairs.This is a genuine OEM part that has been sourced directly from the manufacturer. It is compatible with refrigerators manufactured by Whirlpool, Maytag, Kitchenaid, Jenn-Air, Magic Chef, and some other brands. This part is sold individually.

This white door shelf trim is the front retainer for a refrigerator door shelf. It replaces a broken or missing rail to restore a secure edge that helps keep bottles and jars from sliding out. What it does:

• Acts as the front rail that snaps into the door liner to retain items on the shelf
• Helps prevent items from falling when the door is opened or closed
• Replaces cracked, warped, loose, or missing trim/end caps
• Common symptoms: broken or missing bar, trim won't stay seated, items fall from the door shelf

• One white door shelf trim with end caps

• Disconnect power and remove items from the affected door shelf before starting
• Gently release the old trim/end caps from the liner tabs—avoid prying directly on the door liner
• Align the new trim with the slots and snap/slide firmly into place until secure
• If plastic is cold/brittle, allow it to warm to room temperature and handle carefully

These inserts are for 1/4 inch plastic tubing. Package of 4.

Color: Grey

This drain tube directs defrost/condensate water from the appliance's drain outlet into the drain pan, helping prevent water from pooling inside the cabinet or leaking onto the floor for reliable, mess-free operation. What it does:

• Channels defrost/condensate water from the drain outlet to the pan
• Helps prevent interior leaks, puddles beneath the unit, and ice at the drain
• Restores proper drainage when the original tube is cracked, misshapen, or clogged
• Addresses symptoms like water under drawers/shelves or musty odors from standing water

• 1 drain tube

• Disconnect power and pull the unit forward for rear access; turn off water supply if applicable
• Remove the old tube and clear any debris/ice from the drain opening
• Fully seat the new tube on the drain outlet and position the outlet over the pan, following original routing
• Test by pouring a small amount of warm water into the drain to ensure proper flow and no leaks
