Speedqueen 801335 Control Harness Assembly (Main Console Wiring Harness) OEM Part

Product Details

Genuine Speedqueen part.

Cross Reference Information

Part Number 801335 replaces AP3755827, 1031516.

Description

This control harness assembly routes power and signals between the console and the washer's control components to restore reliable control panel operation and communication. What it does

• Connects the console/control board to motors, switches, sensors and other electronic components.
• Replaces damaged or frayed wiring that can cause intermittent control function or loss of power to the console.
• Commonly used when the washer won't start, buttons or cycle selection fail, or control functions are intermittent.
• Restores factory wiring routing and connector fit for consistent signal and power flow.

What's included

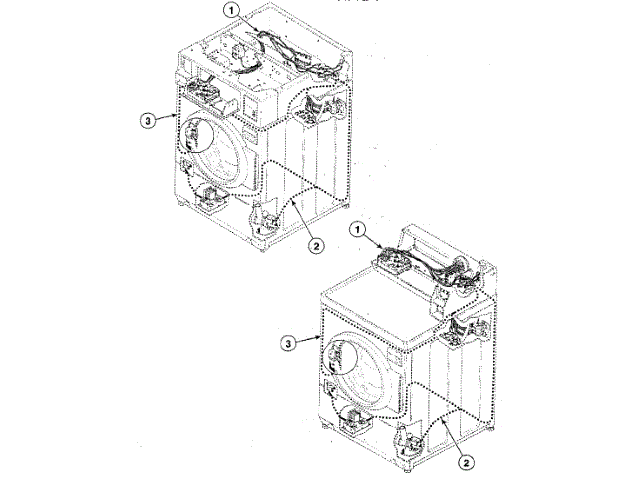

• One control harness assembly as shown.

Install notes

• Disconnect power to the washer before starting any work to avoid electrical shock.
• Handle connectors and board pins carefully; align connectors fully until they click to avoid bent pins or poor contacts.
• Route and secure the harness following existing clips and tie points; avoid pinching under panels or sharp edges.
• After installation, reconnect power and run a test cycle to confirm full control and operation.
