Speedqueen 203428 Hood Timer Harness (Timer/Hood Wiring Harness) OEM Part

Product Details

Genuine Speedqueen part.

Cross Reference Information

Part Number 203428 replaces AP5990462.

Description

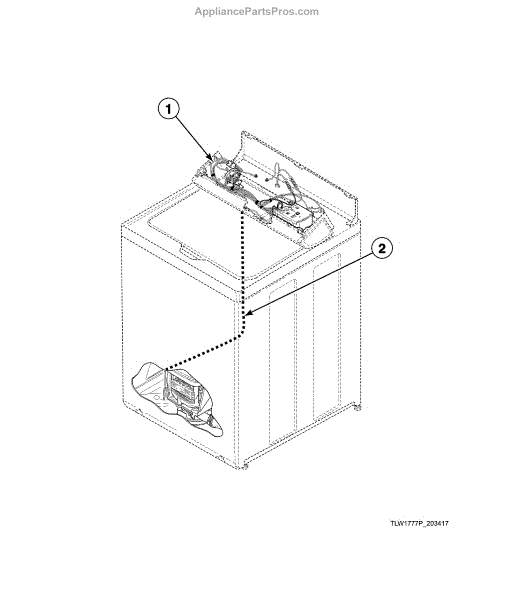

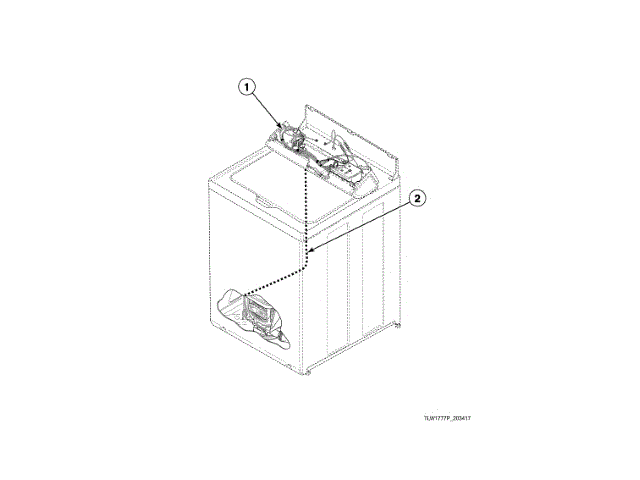

This hood timer harness connects the cabinet hood switch to the washer's timer and control circuit, allowing the machine to detect lid position and enable or disable drive functions. It restores reliable communication between the lid switch and timer assembly. What it does:

• Routes power and signal between the hood/lid switch and the washer timer/control.
• Enables the washer to pause or prevent operation when the lid is open.
• Helps resolve intermittent or complete loss of lid-detection causing no-start or stopping mid-cycle.
• Reduces electrical issues caused by damaged, frayed, or corroded wiring in the hood area.

What's included: One hood timer wiring harness. Install notes:

• Disconnect power before attempting any repair to avoid shock or injury.
• Inspect connector ends and routing; replace if brittle or connectors are damaged.
• Secure harness away from moving parts and sharp edges; use existing clips or ties.
