Speedqueen D513737 Dryer Moisture Sensor Bar OEM Part

Product Details

Genuine Speedqueen part. See all items in Dryer Fuse Or Sensor.

Cross Reference Information

Part Number D513737 replaces AP6329069, 513737.

Description

• Senses moisture on fabrics and signals the control to advance or extend auto-dry cycles
• Helps stop the cycle when clothes reach the selected dryness level
• Symptoms can include auto-dry cycles ending early, extended run times, or inconsistent dryness
• Build-up on the bars can also affect sensing performance

• Disconnect power before servicing; shut off gas supply for gas dryers

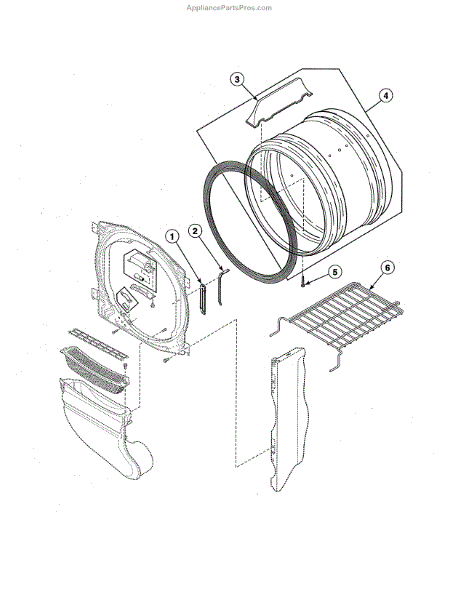

• Access the sensor at the front bulkhead/lint housing; move wire leads to the new bar and secure with existing hardware
• Clean any residue from both sensor bars to improve accuracy
• Reassemble and test with a small damp load on a sensor cycle
