Speedqueen D505795P Timer (3-Cycle) OEM Part

Product Details

Genuine Speedqueen part.

Cross Reference Information

Part Number D505795P replaces AP6838525, 505795P, 504547, 505795.

Description

This 3-cycle timer controls sequencing for select top-load washers, letting the machine advance through wash, rinse, and spin stages for proper cycle operation. It replaces a worn or non-advancing mechanical timer to restore normal cycle progression. What it does:

• Rotates internal cams to change washer functions between wash, rinse and spin
• Sends timed signals to drive motor and valves so cycles start and stop in order
• Common fix when a washer won't advance, stalls mid-cycle, or cycles don't complete
• Works as the user-selected cycle timer for compatible machines

What's included:

• One 3-cycle timer assembly

Install notes:

• Disconnect power before servicing to avoid shock or injury

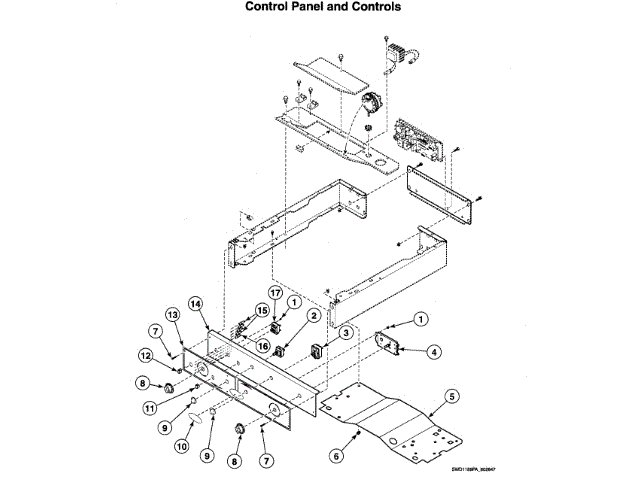

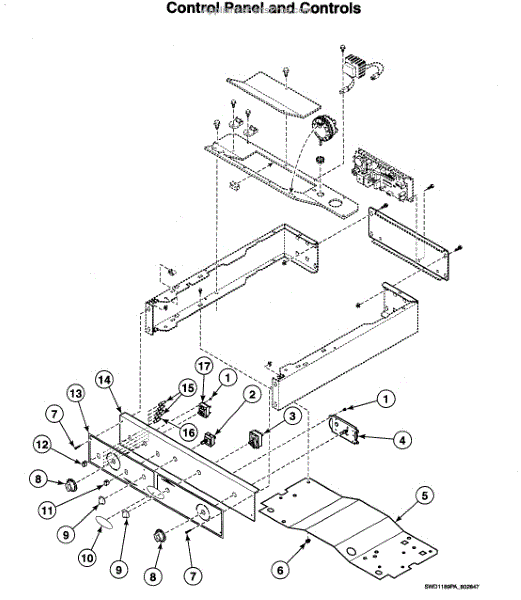

• Access may require removing the console or control panel; keep track of fasteners
• Match wiring and connector locations exactly; snap connectors straight off/on without forcing
