Whirlpool W11114753 Electronic Control Board (Main Console) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11114753 replaces AP6284447, W10841980.

Description

This electronic control board manages oven/dryer/range functions so the appliance responds to user inputs and runs timed cycles reliably. It replaces a failed console controller to restore normal control and display behavior. What it does:

• Receives and processes button/touchpad commands to start or change cycles
• Controls cycle timing, heating/cooling signals, and motor/relay commands
• Can stop operation or cause error codes when the original board fails
• Common symptoms: unresponsive controls, blank or erratic display, cycles that won't start or that stop unexpectedly

What's included:

• One electronic control board

Install notes:

• Disconnect all power before attempting service to avoid shock
• Handle the board by edges and avoid static discharge; use an anti-static wrist strap if available

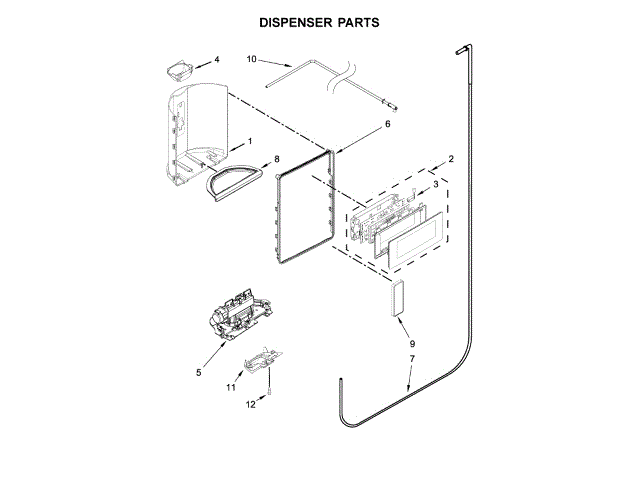

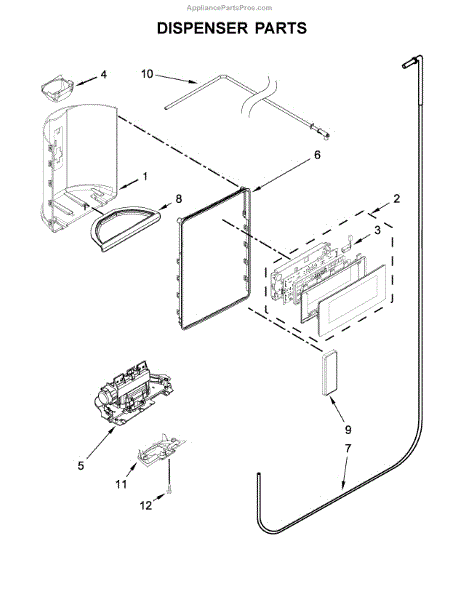

• Verify the board part number matches the appliance diagram before installing
