Whirlpool W11122540 Electronic Control Board (Oven Control) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11122540 replaces AP6261065, W10834001, W10887911, W11047510.

Description

This electronic control board manages oven functions and the user interface, restoring display and control to the range when the original board fails. It replaces a failed console control to help the oven respond to button presses and cycle properly. What it does:

• Receives input from the keypad and controls oven heating elements and timers
• Restores display readouts and clock functions when the original board is dead or blank
• Can stop erratic behavior caused by a faulty control, such as unresponsive buttons or incorrect cycles
• Common symptom: no display, no response to touchpad, or oven not starting when set

What's included:

• One electronic control board

Install notes:

• Disconnect power at the breaker before beginning any service

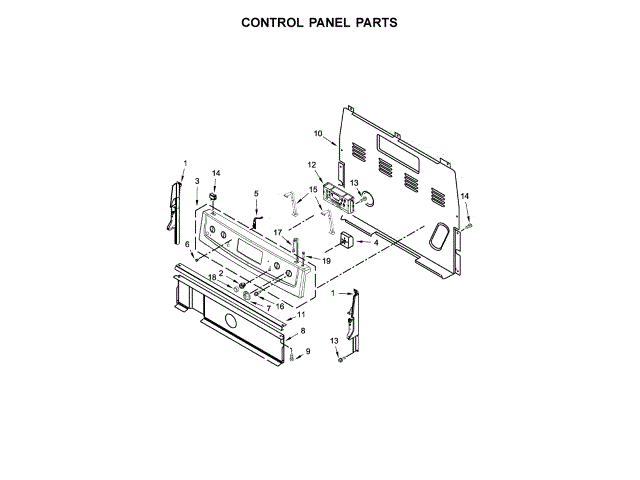

• Remove the oven console/ back panel to access and replace the control board; handle the board by its edges
• Reconnect all wiring harnesses exactly as found; secure mounting screws and panels before restoring power
