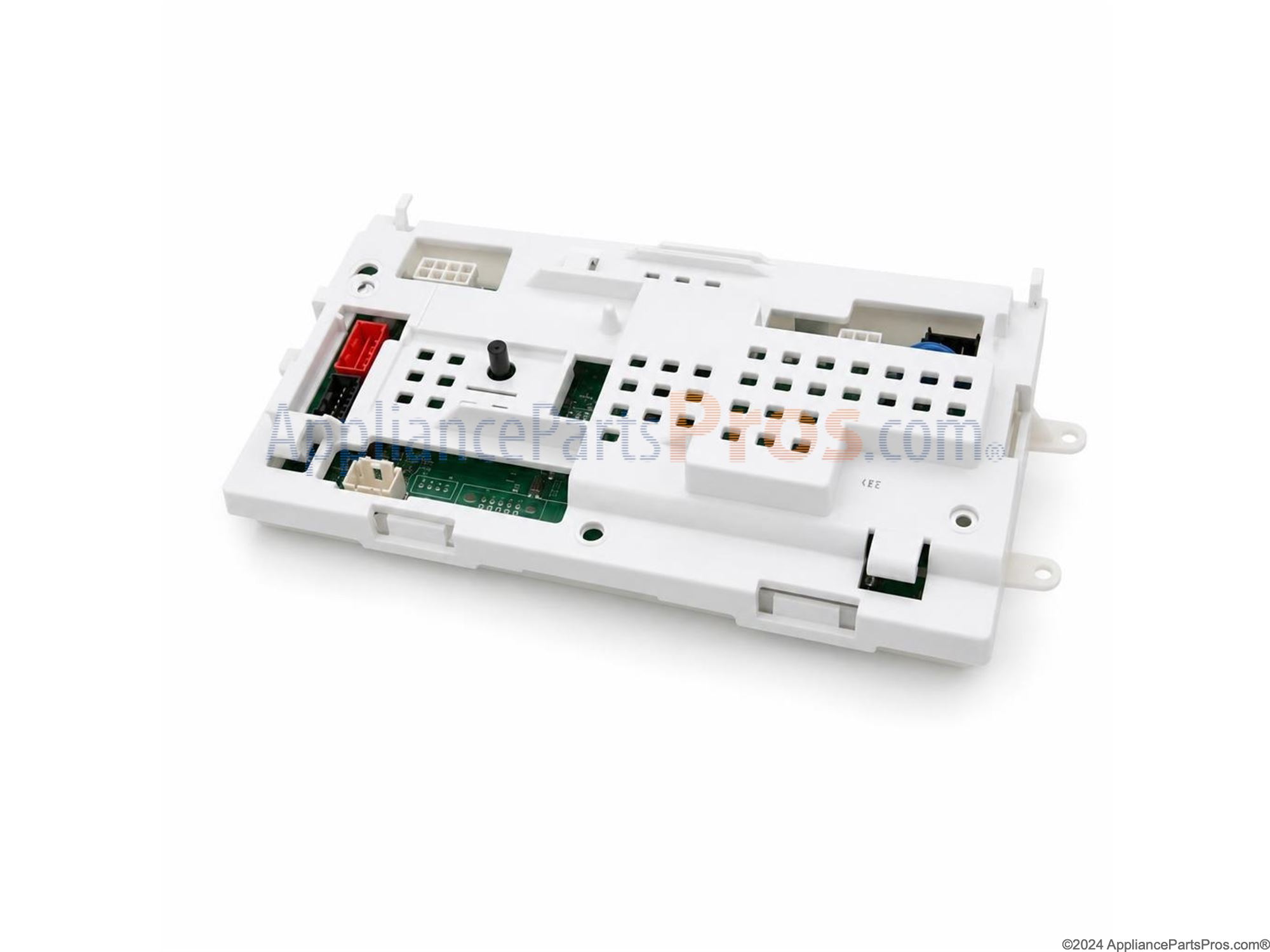

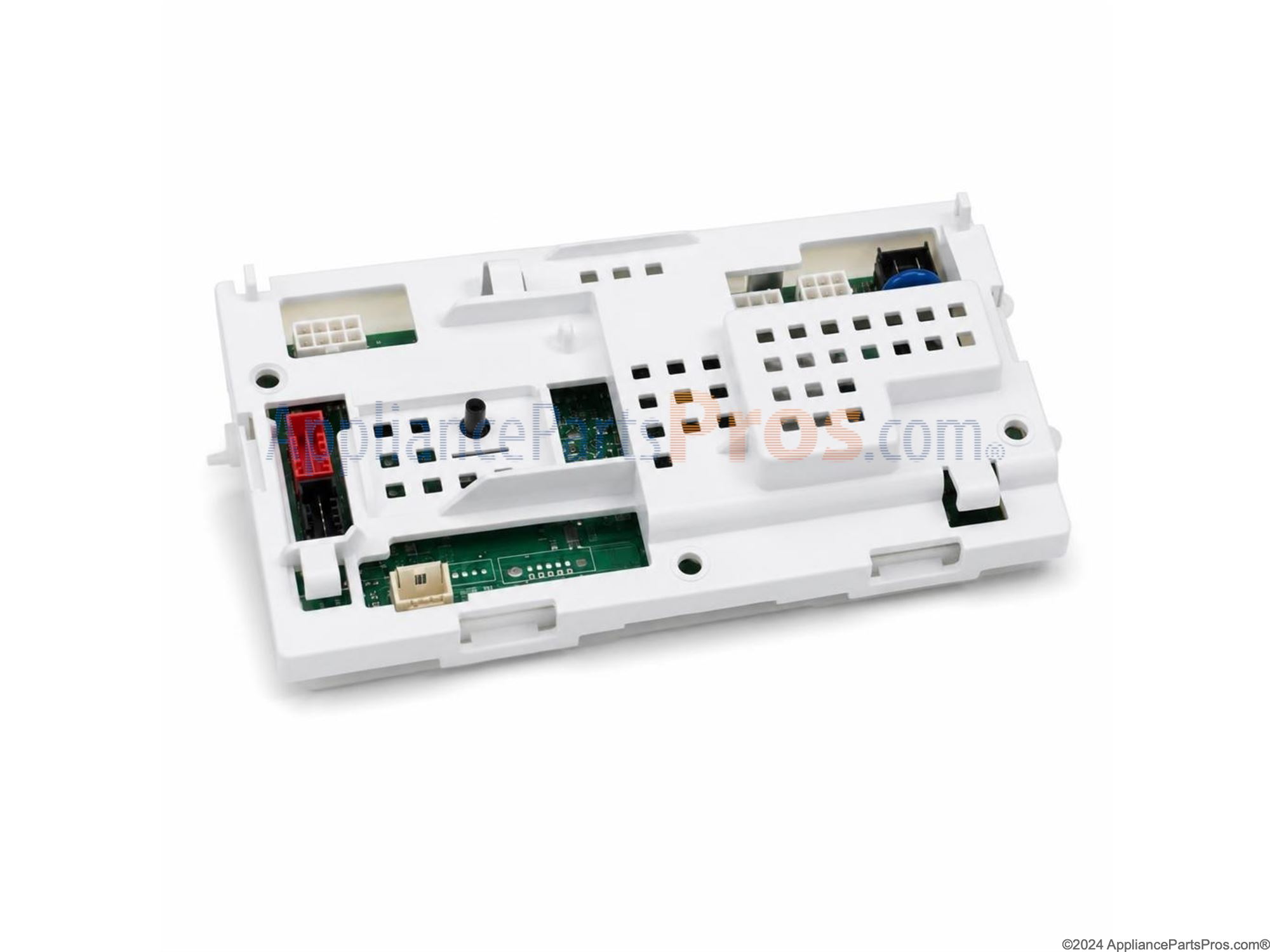

Whirlpool W11603810 Electronic Control Board (Control Module) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11603810 replaces AP7193495, W11578565.

Description

This electronic control board is the appliance's central control module. It interprets user and sensor inputs to power and time operations, helping resolve issues with unresponsive controls, random resets, or cycles that won't run correctly.

• Coordinates and powers components according to programmed logic
• Manages cycle timing, operating modes, and status indicators
• Monitors inputs and safeguards circuits; supports onboard fault diagnostics
• When failing, symptoms include no power to controls, won't start/run, erratic operation, display/indicator issues, or control-related error codes

Includes: 1 electronic control board. Install notes:

• Disconnect power before servicing and verify no voltage is present
• Use anti-static precautions; handle the board by its edges
• Photograph/label connectors and transfer them one at a time to the new board
• Secure the board properly and follow model-specific service instructions before restoring power
