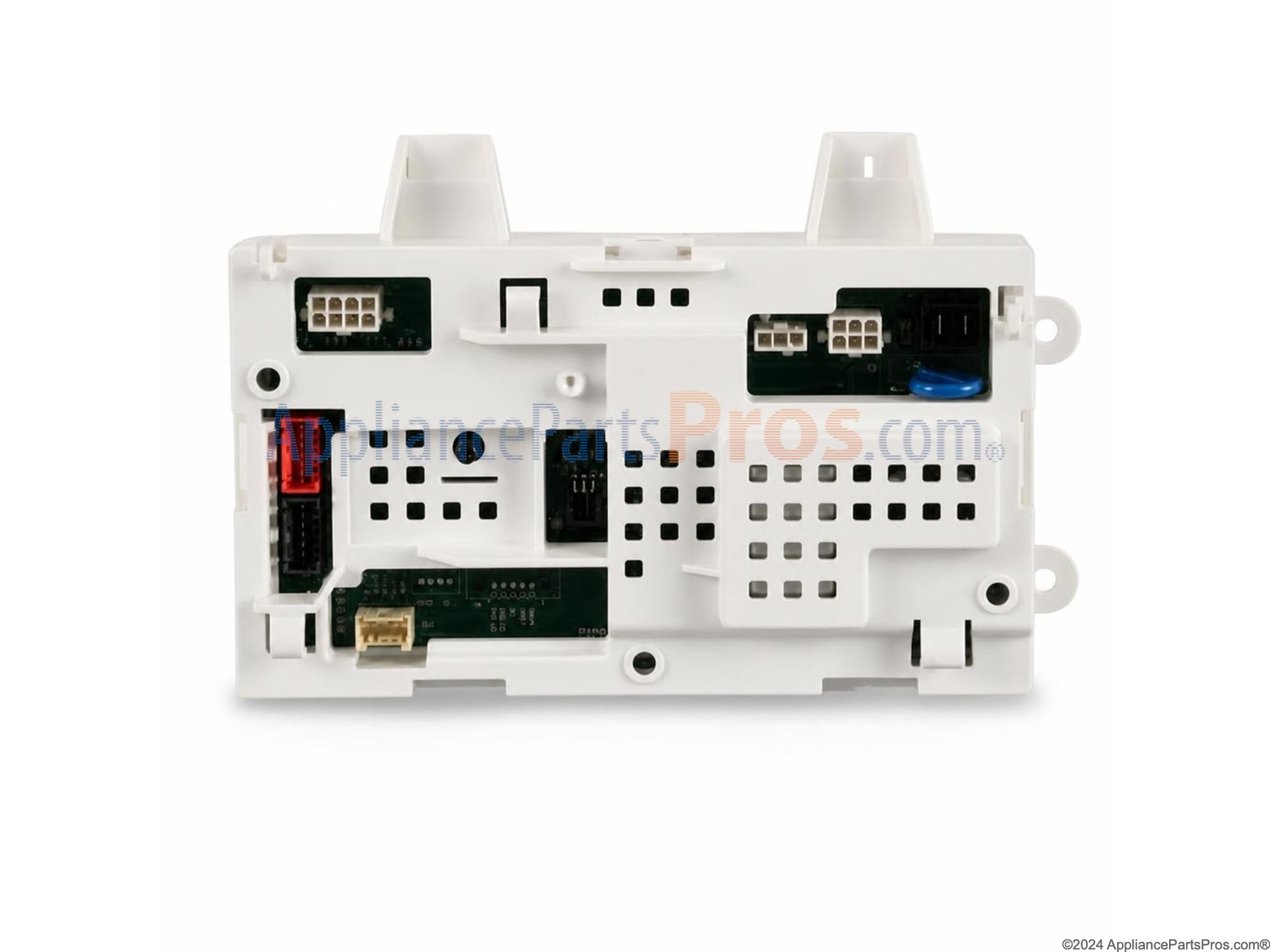

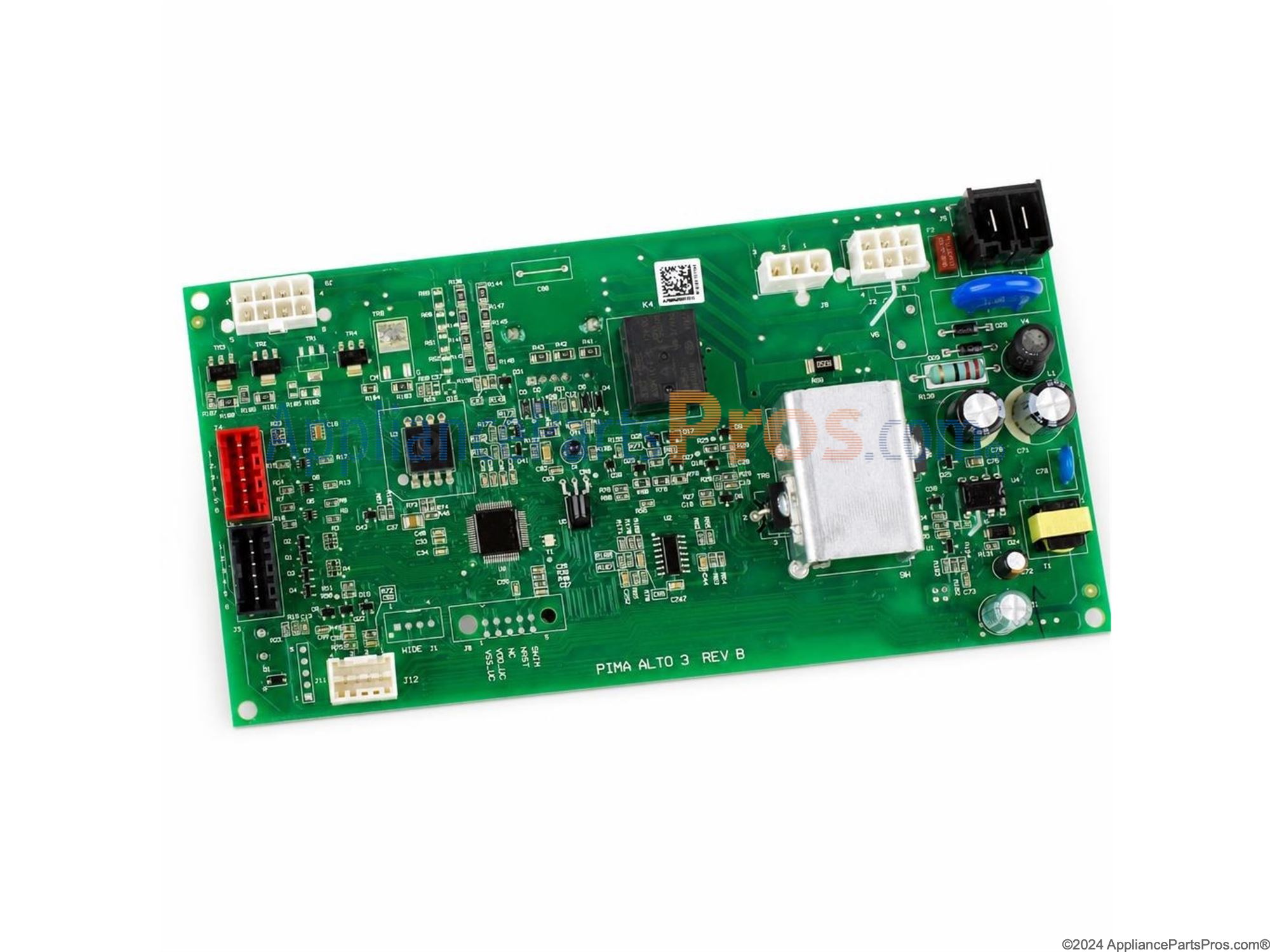

Whirlpool W11603811 Electronic Control Board (Main Control) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11603811 replaces AP7193496.

Description

This electronic control board is the brain of your appliance. It interprets inputs from sensors and the user interface and directs power to components so cycles run correctly, restoring responsive controls and consistent, reliable operation.

• Coordinates timing and power to components such as motors, pumps/valves, heaters, and fans
• Interprets sensor and switch inputs to regulate operation and modes
• Stores cycle/program logic and options from the user interface
• Common symptoms include unresponsive controls, won't start/complete cycles, intermittent operation, or persistent error codes

What's included: 1 electronic control board Install notes:

• Disconnect power to the appliance before servicing; turn off water/gas if applicable
• Use ESD (anti-static) protection and handle the board by its edges
• Transfer connectors one at a time and match positions to the original board; take photos for reference
• Some models require service-mode setup or programming after replacement; follow the service sheet for your unit
