Whirlpool W11112656 Control Panel OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others. See all items in Washer Panel.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11112656 replaces AP6260993, 4547114, PS12114172, W11035014.

Description

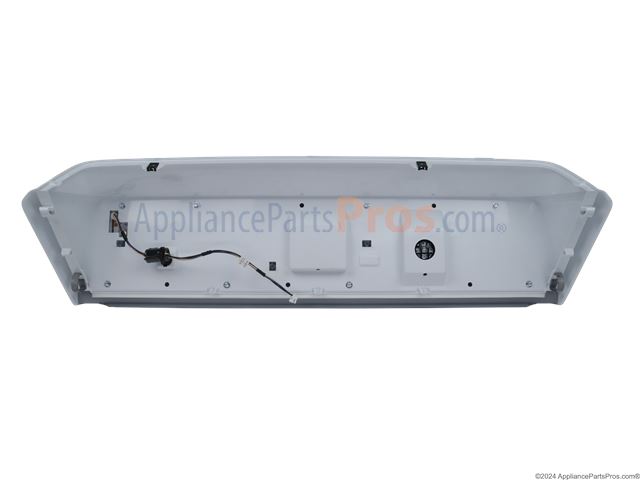

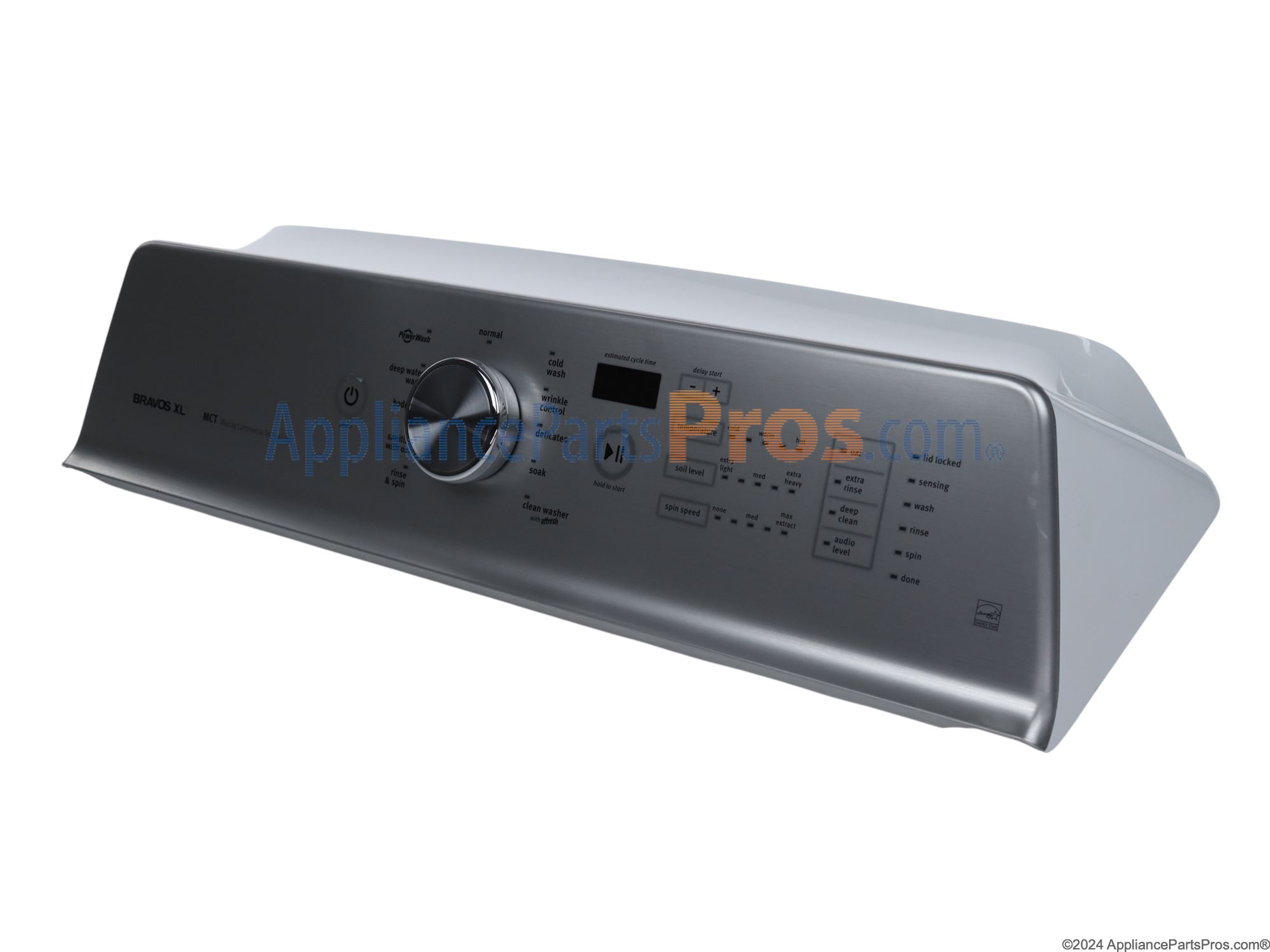

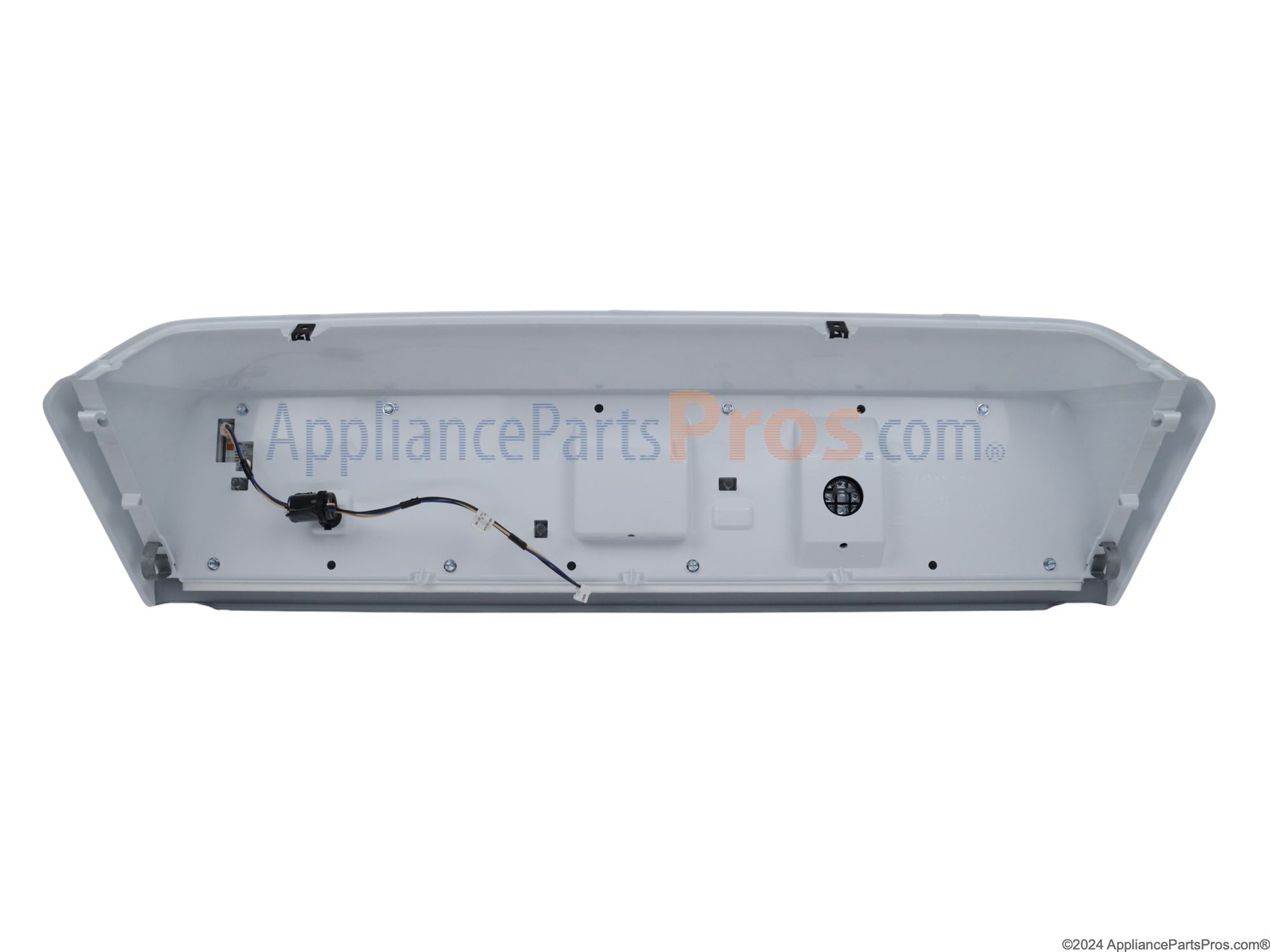

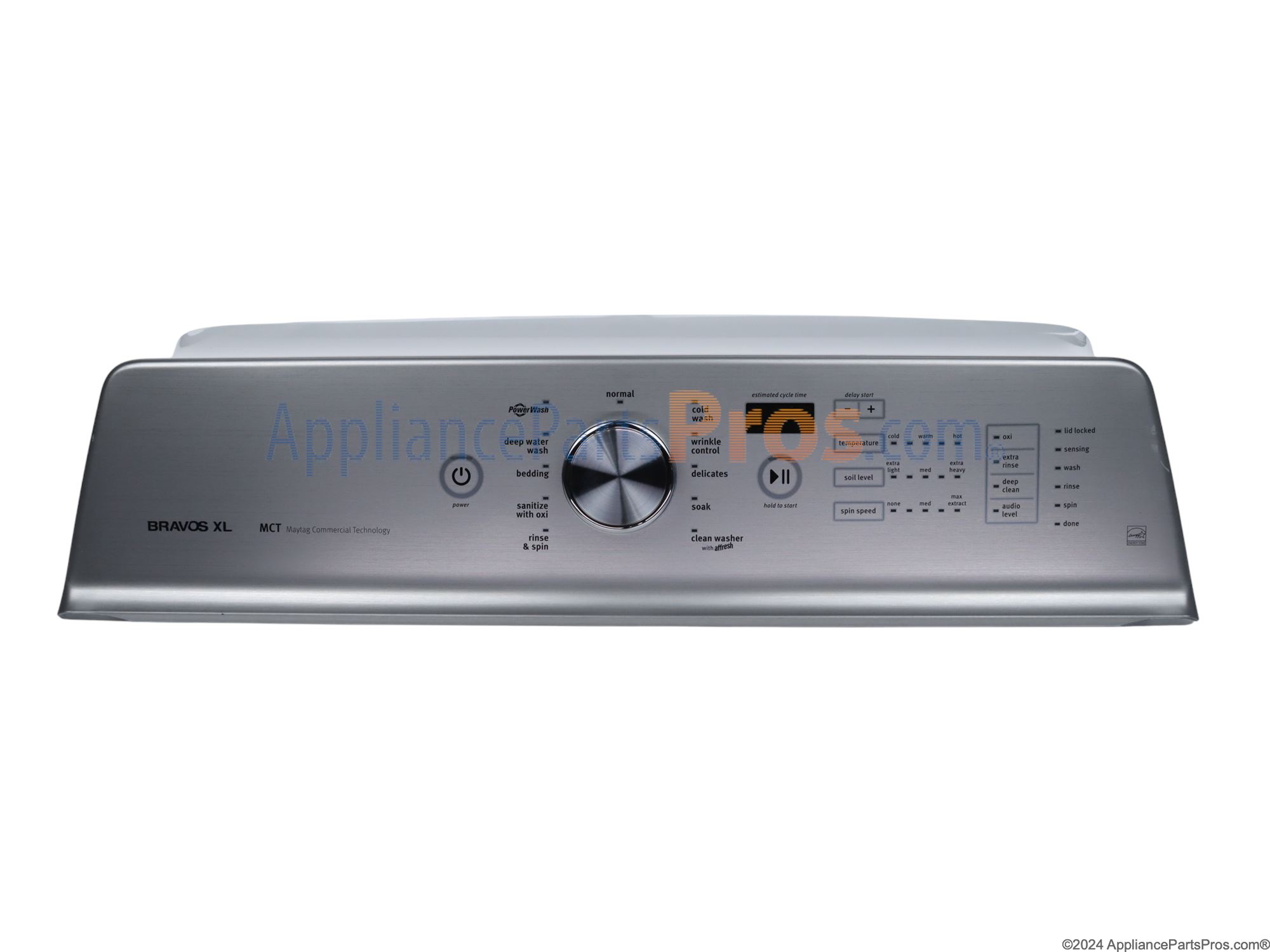

This control panel assembly fits washing machines. This is the housing for the washing machine's controls. It allow the user to select load size, wash type, and other cycle-related factors. The assembly includes multiple parts, as well as the wiring required to connect the control panel to the control module.The control panel can suffer from wear and tear, and may also be affected by an excessive build up of dust. Exposure to moisture and high temperatures may also cause problems. If the panel is damaged, the user will find it difficult to set washing cycles, or the washing machine may be inoperable. To replace the control panel assembly, first disconnect the power, the remove the access panel to locate the mounting screws for the assembly. Disconnect the wiring and install the new assembly.This genuine OEM part is sold individually. It is compatible with Whirlpool, Maytag, Roper, and Kenmore washers.
