Whirlpool WPW10384849 Motor Control Board (Washer) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10384849 replaces AP6020689, W10384849, 2118236, PS11754008, W10171932, W10326465.

Description

This motor control board regulates the washer's drive motor, coordinating tumble and spin speeds for smooth operation. Replacing a failed MCU restores proper wash motion and spin performance.

• Controls drive motor speed and direction for wash/tumble and spin cycles
• Communicates with the main control and motor feedback to deliver smooth acceleration and braking
• Monitors for faults to help protect the motor and shut down if needed
• Symptoms of failure can include no tumble or spin, intermittent motor operation, cycle interruption, or motor/speed-sensor error codes

What's included: 1 motor control board assembly Install notes:

• Disconnect power before servicing; use ESD precautions and handle the board by the edges

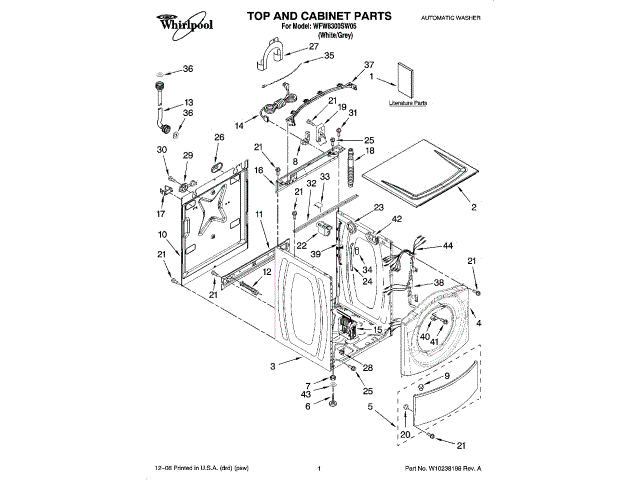

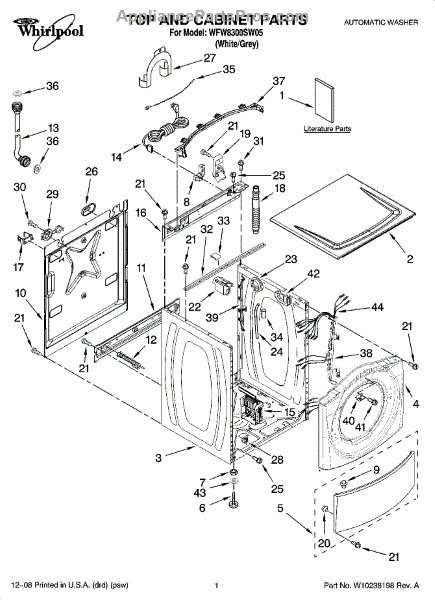

• Typically mounted low in the cabinet (rear or base); access varies by model—refer to your service information
• Move connectors one at a time to the same positions; ensure harnesses are fully seated and routed as original
• After installation, run diagnostics or calibration if required by your model's service procedure
