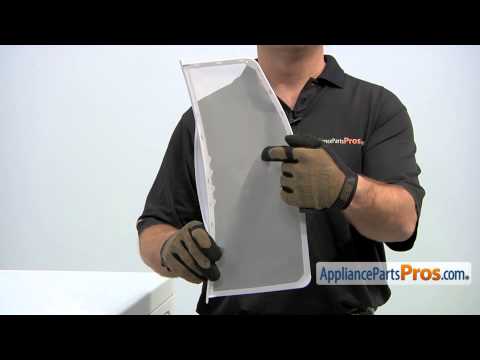

Whirlpool WP37001142 Dryer Lint Filter OEM Part

I pulled the dryer away from the wall and unplugged it. Then I used a 5/16 nut driver and removed the 2 screws in the bottom front panel and pulled it off. Next I removed the 2 5/16 screws holding the front door panel and pulled it down far enough to disconnect the wires for the light and the wires on the door switch. Then , using a putty knife I popped the springs holding the top and control panel then pulling the top up and resting it against the wall. Now I started my repair by laying on the floor and reaching under the drum and pushed the idler pulley toward the motor drive pulley gaining slack in the belt and pushed it off the idler with my fingers. Next , I stood and lifted the drum up and out the front of the cabinet with the belt still around the drum.next I unhooked the spring from the idler and noticed it was contorted quite excessively so I installed the new one and by using two 9/16 wrenches I removed the idler from the motor housing and installed the new one. Then I took a large flat head screwdriver and pried off the snap rings holding the drum rollers on and installed the new rollers after lightly greasing the shafts with a dab of axle grease. Then I wrapped the new belt around the drum and installed it on the rollers and got back on the floor and reached under the drum to wrap the belt around the idler pulley and pushed it toward the right side wall and hooked it around the motor pulley. Then I replaced the wires on the light and on the door switch and then I let the top down and replaced the two 5/16 screws to hold it in place. Next I installed the bulkhead by inserting the two tabs in the alignment slots in the frame and replaced the five 5/16 screws to hold it in place. Then I installed the bottom panel with two 5/16 screws at the bottom of the panel next to the floor. Then I slid the dryer back and installed the vent hose and replaced the new lint screen , then closed the door and started the dryer to check my repair. It works like brand new and all the work was worth the effort I put into it. Thanks so very much Appliancepartspros.com for supplying such terrific parts and for the great prices and even the step by step instructional videos if someone gets confused or stuck during the repair. I will definitely be ordering my parts from appliancepartspros.com and not anywhere else.

I went on line and purchased all of the possible parts that could be worn out. I spent less than the service guy wanted to show up...The online videos were spot on. Two hours and it works like new! One of the best values on the Internet!

Ordered a new filter

No fixing needed.

Replaced
