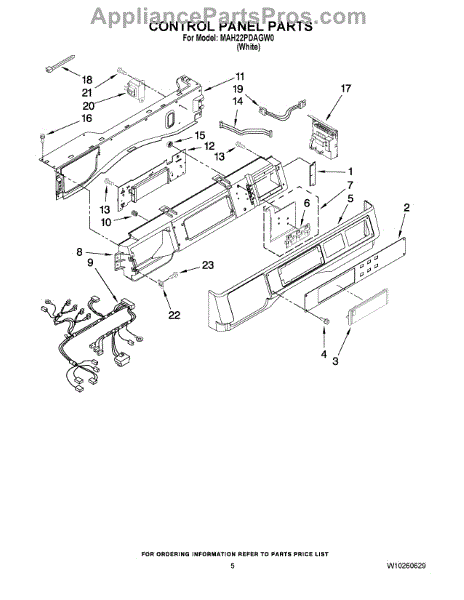

Whirlpool W10155150 Wire Harness (Control Panel) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W10155150 replaces AP4364969, 1470781, AH2341448, EA2341448, PS2341448.

Description

This wire harness connects the dryer's control panel and internal components, restoring reliable signal and power routing for normal operation. It replaces a damaged or worn harness to help resolve control failures and intermittent function. What it does:

• Transfers power and control signals between the control/console and internal components
• Commonly used when buttons, lights, or display do not respond or operate intermittently
• Replaces harnesses with broken wires, frayed insulation, or melted connectors
• Helps stop shorting or erratic behavior caused by damaged wiring

What's included:

• One replacement wire harness as shown

Install notes:

• Disconnect all power (unplug appliance or switch off circuit breaker) before starting
• Label or photograph connector locations before removal to ensure correct reconnection
• Route harness carefully to avoid sharp edges and pinch points; secure with existing clips
• If connectors are damaged, replace them rather than reusing to avoid poor electrical contact
