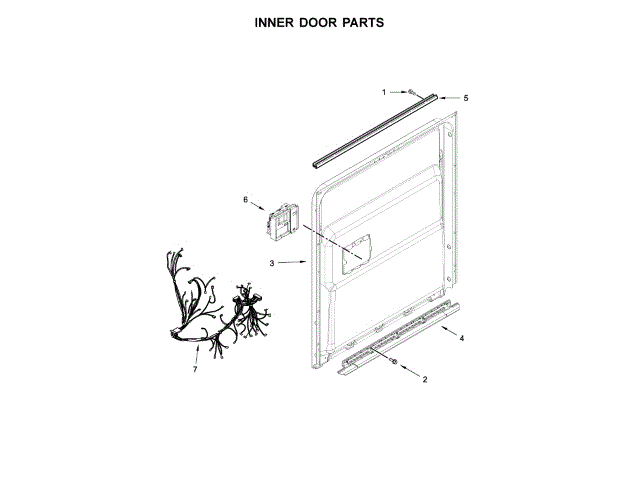

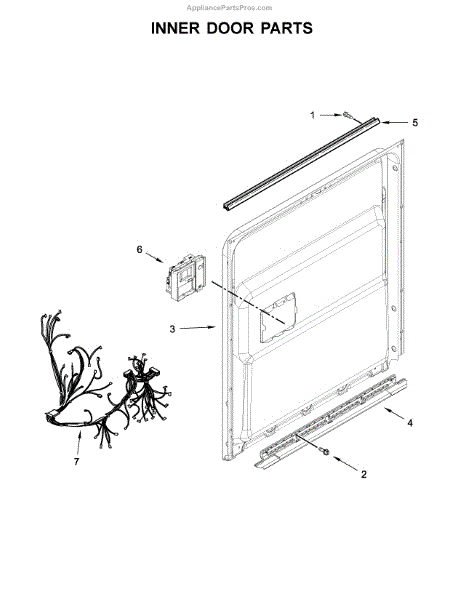

Whirlpool W10834770 Wire Harness (Electrical Connector) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W10834770 replaces AP6261181, 4841426, PS12113494.

Description

This wire harness routes power and signals between a unit's controls and its components to restore reliable electrical connections. It replaces a damaged or worn harness so controls, motors and sensors can communicate safely. What it does:

• Provides factory-style wiring connections between control board and components.
• Restores power and signal paths to fix intermittent operation or loss of function.
• Helps eliminate burnt, frayed or broken wires that can cause faults or error codes.
• Keeps wiring organized and routed to prevent chafing and short circuits.

What's included: One complete wire harness as shown. Install notes:

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Compare harness and connector shapes to the original before installation.
• Route wires per the cabinet harness channels; avoid pinching or sharp edges.
